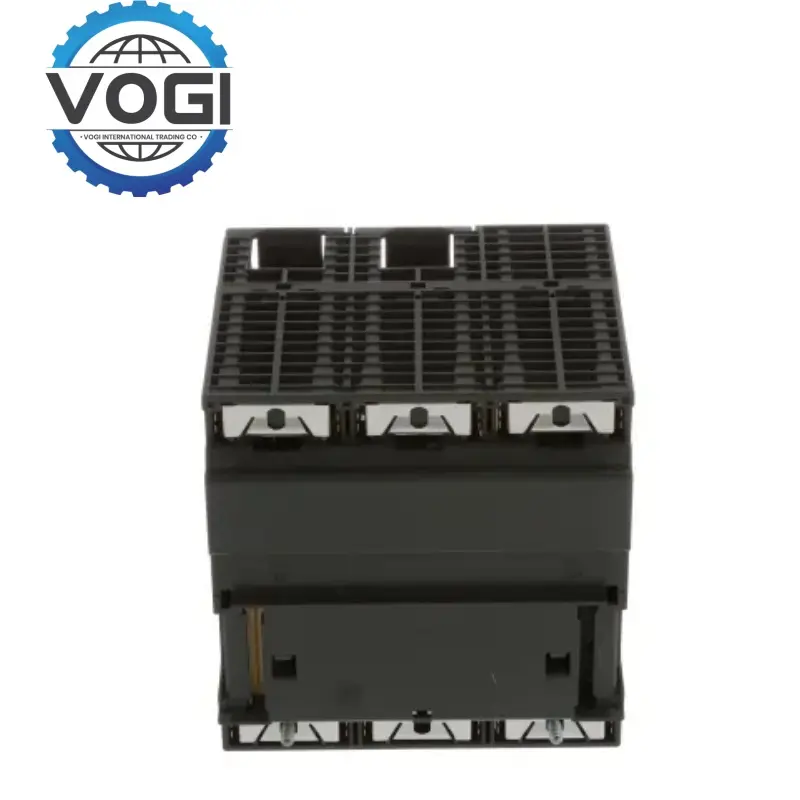

6ES7313-5BG04-0AB0

Processor performance: 32-bit RISC processor, bit operation speed 0.1μs, word operation 0.2μs, double word operation 0.4μs, support efficient logic processing and data operation.

Memory configuration: integrated 128KB working memory (for program storage), MMC card (maximum 8MB) is required as loading memory, support maintenance-free storage of programs and data (no battery required).

Power supply specifications: 24V DC power supply (voltage range 19.2V~28.8V), power consumption 5W, support 5ms power failure bridge time (short power failure protection).

Communication interface: 1 MPI interface (rate 187.5kbps, support 6 connections), PROFIBUS-DP or Ethernet can be expanded through CP module (additional hardware required).

Digital input: 24 points (24V DC, configurable as alarm input)

Digital output: 16 points (transistor type, 24V DC)

Analog input: 4 channels (12-bit accuracy, support ±10V/0-20mA)

Analog output: 2 channels (12-bit accuracy, support ±10V/0-20mA)

High-speed counter: 3 (up to 30kHz, support frequency measurement and simple positioning)

Expansion capability: supports up to 8 local modules, only the main rack is expanded, no centralized expansion rack.

Protection level: IP20

Operating temperature: 0°C~60°C

Integrated design: Siemens 6ES73135BG040AB0 has built-in 24DI/16DO and 4AI/2AO, directly connects sensors and actuators, reduces external module configuration, and is suitable for rapid deployment of small control systems.

High-speed control capability: 3 30kHz high-speed counters support position detection and frequency measurement, meeting the dynamic control requirements of packaging, conveying and other equipment.

Modular expansion: Siemens 6ES73135BG040AB0 is compatible with the full range of S7-300 signal modules and communication modules, and can flexibly expand I/O points and communication protocols.

High reliability: Wide voltage input adapts to industrial power grid fluctuations, diagnostic LED displays fault status in real time, and the diagnostic buffer stores 500 events (100 long-term retention) for quick troubleshooting.

Programming compatibility: Siemens 6ES73135BG040AB0 supports STEP 7 V5.5 programming, is compatible with LAD, FBD, STL and other languages, and is suitable for the migration of existing S7-300 projects.

Small and medium-sized automation equipment: suitable for single machine or small production line control with I/O points between 100 and 200

Process control scenarios: analog monitoring of temperature, pressure, liquid level, etc. in light industry (food, medicine, textile), supporting 4-way AI real-time data acquisition and 2-way AO output adjustment.

Material handling system: conveyor belt start and stop control, sorting equipment logic coordination, elevator position detection (relying on high-speed counter function).

Energy and infrastructure: water pump start and stop control of small pumping stations, equipment status monitoring in distribution rooms, and local temperature and humidity adjustment of heating, ventilation and air conditioning (HVAC) systems.

Machine tools and mechanical engineering: spindle speed regulation and tool change logic control of simple machine tools, combined with high-speed counters to achieve simple positioning or counting functions.
