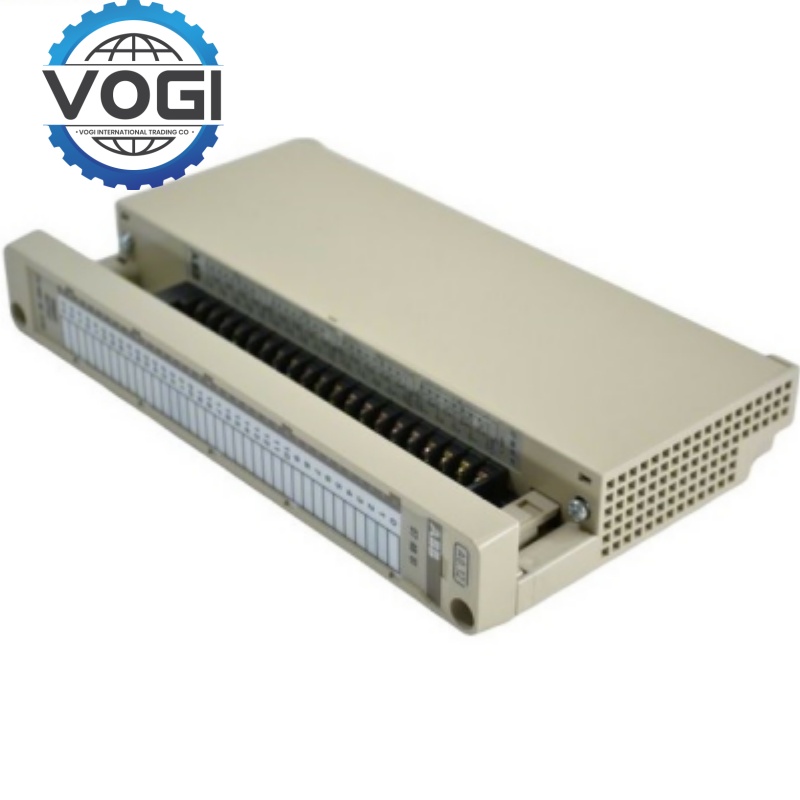

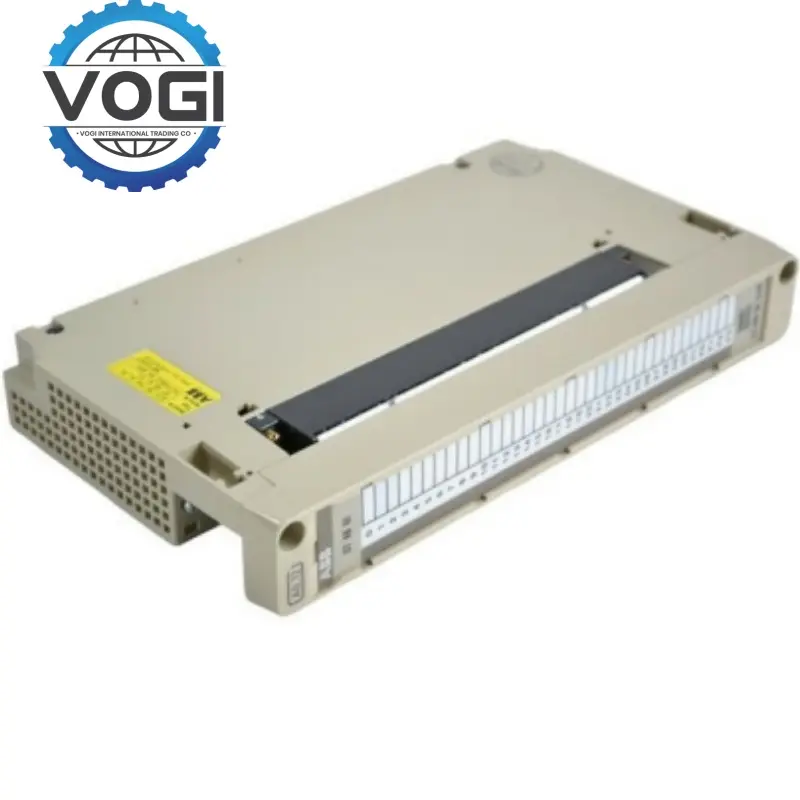

ABB 07AB61 GJV3074361R1 Binary Output Module

Backup battery: optional external battery module (data retention ≥72 hours after power failure).

Communication interface: Ethernet (TCP/IP), RS485, PROFIBUS-DP (industrial multi-protocol compatible).

Programmable input: 12 channels of digital/analog (supports dry contact, 4-20mA and 0-10V signals).

Relay output: 6 channels of relay (contact capacity 5A/250VAC or 2A/30VDC).

Device capacity: 512MB memory (supports up to 1024 logic program blocks).

Operating temperature: -20°C to +60°C (industrial wide temperature design).

Humidity range: 5%-95% RH (non-condensing environment).
Display and operation: LCD display + physical buttons (local programming and status monitoring).

2. Redundant power supply and data protection: ABB 07AB61 GJV3074361R1 supports dual 24VDC input, and optional external battery module can achieve data retention of ≥72 hours after power failure.

3. High-capacity logic processing: 512MB memory, support 1024 logic program block configurations, meet the needs of medium and large control systems.

4. Flexible expansion capability: ABB 07AB61 GJV3074361R1 provides I/O module slots, which can expand CAN bus or other communication cards to adapt to customized needs.

5. Industrial-grade environmental adaptability: ABB 07AB61 GJV3074361R1 has an operating temperature of -20°C to +60°C, humidity tolerance of 5%-95% RH (non-condensing), and protection level IP54.

6. Localized human-machine interaction: ABB 07AB61 GJV3074361R1 has a built-in LCD display and physical buttons, supporting local programming, status monitoring and fault diagnosis.

7. High-reliability relay output: 6-channel relay contact capacity 5A/250VAC, strong drive capability, and adaptability to various load types.

8. Intelligent monitoring and management: ABB 07AB61 GJV3074361R1 integrates real-time clock and event log recording functions to improve system traceability.

1. Industrial Automation: ABB 07AB61 GJV3074361R1 can be used for production line control in automobile manufacturing, electronic assembly, food packaging, etc., and supports PROFIBUS/Ethernet integrated PLC and sensors.

2. Energy and Power: ABB 07AB61 GJV3074361R1 can be used for substation monitoring, power grid equipment management, and communicate with SCADA system through RS485/Modbus.

3. Oil and Gas: Pipeline pressure monitoring, pump station control, adapted to -20°C to +60°C wide temperature and IP54 protection.

4. Buildings and Infrastructure: Smart buildings (HVAC, lighting), traffic signal systems, local LCD screen real-time monitoring.

5. Chemical and Pharmaceutical: Reactor temperature control, clean room management, support 4-20mA high-precision input and event log.

6. Logistics and Warehousing: AGV scheduling, sorting system, expansion of I/O modules to drive sensors and actuators.
