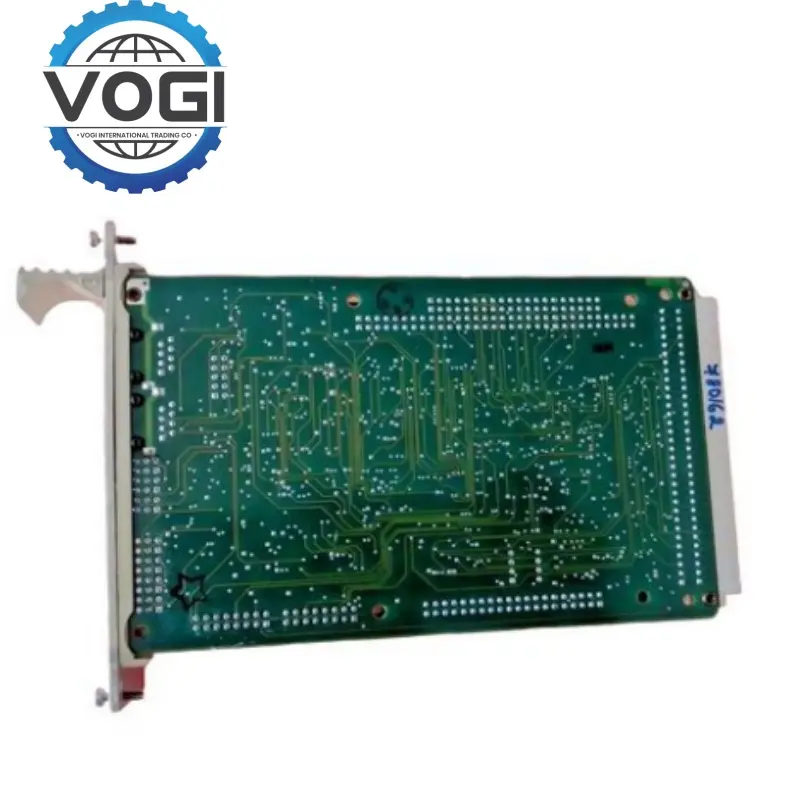

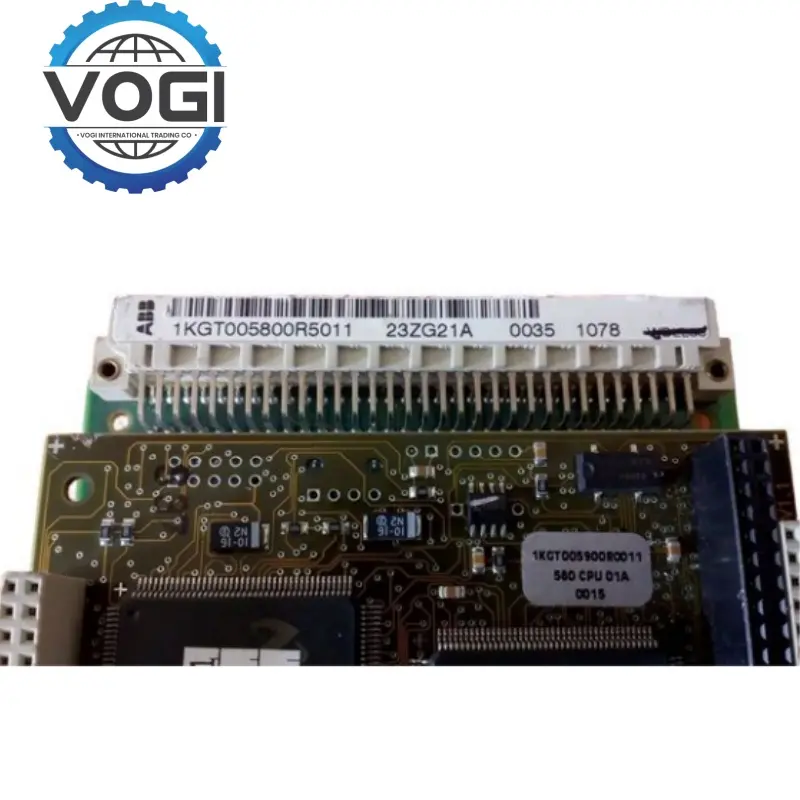

ABB 23ZG21 1KGT005800R5011 Central Control Unit
Key SpecificationsVOGI
1. Module Type：Communication expansion card for AC800M system, compatible with S800 I/O, supporting Profibus DP/fiber optic/RS485 communication.
2. Core Specifications
Channels: 16 digital inputs/outputs (24V DC)
Response Time: 0.1–1ms, 2.5kVrms opto-isolation
Power Supply: 24V DC dual redundancy, wide temperature range (-20°C to +60°C)
3. Communication Capabilities
Profibus DP 12Mbps, fiber optic support for 2km redundant communication
RS232/RS485 compatible, OPC UA protocol extension available
4. Safety & Certifications
SIL2 functional safety (with redundant configuration)
Optional ATEX/IECEx explosion-proof models (-EX suffix), IP66/IP67 protection
Key FeaturesVOGI
High performance communication: The ABB 23ZG21 1KGT005800R5011 supports Profibus DP (12Mbps), fiber optics (2km redundancy), and RS485/RS232 with a low latency response of 0.1-1ms.
Ruggedized design: ABB 23ZG21 1KGT005800R5011 adopts 2.5kVrms photoelectric isolation + floating ground anti-interference, -20℃~+60℃ wide temperature operation, dual power supply redundancy.
Safe and Reliable: SIL2 functional safety (redundant configuration), ATEX/IECEx explosion-proof (-EX suffix), IP66/IP67 protection.
Flexible Expansion: Modular hot-swappable, compatible with OPC UA protocol, adaptable to complex industrial systems.
Industry Adaptation: ABB 23ZG21 1KGT005800R5011 is suitable for automotive manufacturing, power / water, rail transportation, petrochemical explosion-proof scenarios.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$50 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
1. Industrial automation: Real-time control and equipment status monitoring of automobile welding lines and electronic assembly production lines.
2. Power and water: High-voltage switch signal acquisition, water pump valve control, lightning surge resistance design adapted to outdoor environments.
3. Petrochemical explosion-proof: Explosive gas environments in Zone 0 such as refineries and chemical plants, supporting ATEX/IECEx explosion-proof certification.
4. Rail transit: Train braking system and platform screen door status monitoring to ensure signal real-time and reliability.
5. Other fields
Manufacturing: AGV charging status monitoring, robot collaborative control.
Energy: Remote signal transmission and fault diagnosis of wind power/photovoltaic equipment.
