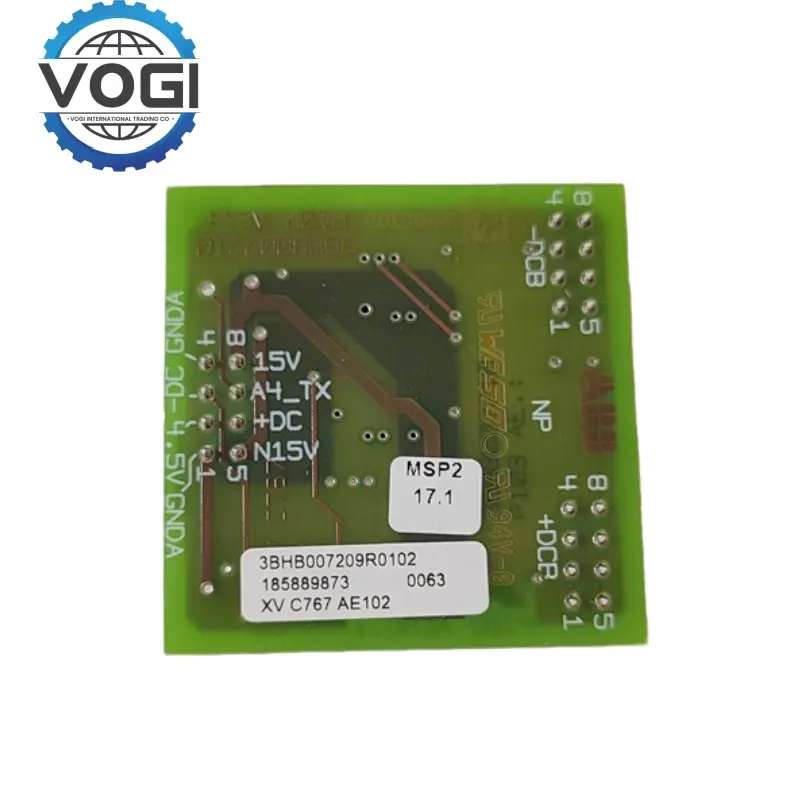

ABB XVC767AE102 3BHB007209R102 Current Control Board
Key SpecificationsVOGI
1. Power input Main power supply
Voltage range: 220V AC ±10%
Power consumption: Typical value ≤20W
Redundancy support: Supports dual power input, requires external redundancy module.
2. Backup battery
Type: No built-in backup battery, requires external power module to achieve power-off protection
Power-off retention time: depends on the capacity of the external power module
3. Communication interface
Main communication: PROFIBUS DP V1
Expansion interface: Supports Modbus RTU, CANopen and other protocols through FBP (Fieldbus Processor), requires external gateway module.
Communication rate: PROFIBUS DP 9.6 kbps to 12 Mbps
4. Programmable input
Number of channels: 4 channels (isolated)
Input type:
Thermocouple: B, E, J, K, L, N, R, S, T, U
Thermal resistor: PT100, PT1000, Ni100 (2/3/4 wire)
Millivolt signal: ±100 mV
Accuracy: ±0.1% F.S. (typical value)
5. Relay output
Type: No built-in relay output, need to be realized through expansion module
Expansion capability: Supports connection of 4-channel digital output module
6. Operating temperature
Ambient temperature: -20°C to +60°C
Storage temperature: -40°C to +70°C
Relative humidity: 5% to 93%.
Protection level: IP20 (installed in cabinet)
7. Display and operation
Local interface: No physical display, status is displayed through LED indicator
Remote configuration: Supports FDT/DTM or ABB System 800xA for parameter setting and diagnosis
Key FeaturesVOGI
Flexible expansion and diagnosis: Communicate with the control system via PROFIBUS DP and is compatible with a variety of fieldbus protocols. Built-in extended diagnostic function, real-time monitoring of channel status, support for FDT/DTM tools for remote configuration and troubleshooting.
Multi-signal compatibility: ABB XVC767AE102 Supports mixed input of thermocouples, thermal resistors, and millivolt signals, and electrical isolation between channels to avoid signal interference. High-precision measurement to meet the needs of industrial process control.
Intrinsically safe design: ABB XVC767AE102 Supports direct installation in ATEX Zone 1/2 hazardous areas, and achieves intrinsically safe signal transmission through built-in isolation barriers to reduce wiring costs. All components are coated with G3 and are suitable for corrosive environments.
High reliability and redundancy: Supports dual redundancy of power supply and communication to ensure continuity of critical applications.Hot-swap function allows online replacement of modules without downtime for maintenance.
