ABB

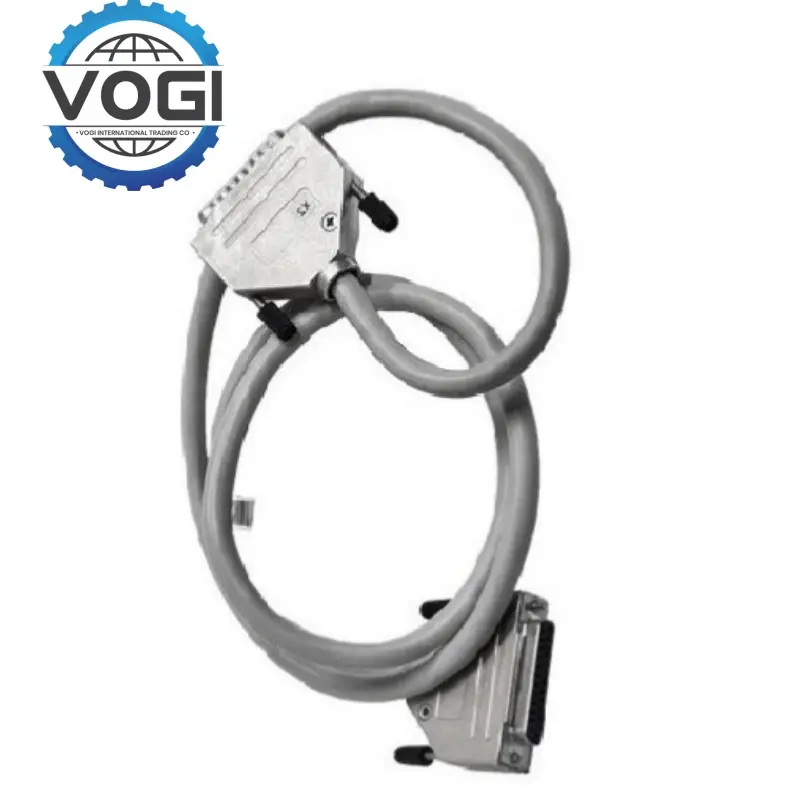

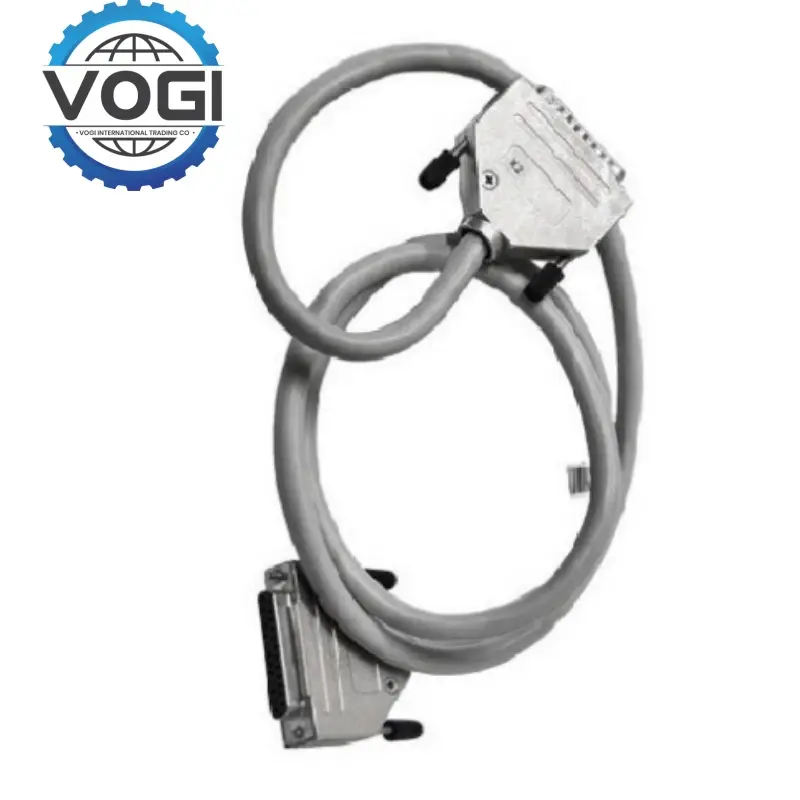

ABB 3BHE014317R0003 CEX Cable
Key SpecificationsVOGI
1.Power input Main power supply: 24 V DC ±20% / 100-240 V AC (adaptive input, 50/60 Hz)
2.Backup battery: built-in lithium battery, supports parameter retention after power failure (typical battery life: 72 hours)
3.Communication interface: RS-485 (Modbus RTU), Ethernet (TCP/IP), optional Profibus DP or CANopen module expansion
4.Programmable input: 8 digital inputs (24 V DC, optocoupler isolation), 2 analog inputs (0-10 V/4-20 mA)
5.Relay output: 4 relay outputs (contact capacity: 5 A @ 250 V AC / 30 V DC)
6.Device capacity: supports up to 128 I/O points expansion, logic program storage capacity: 512 KB
7.Operating temperature: -20°C to +60°C (no condensation)
8.Humidity range: 5% to 95% (non-condensing)
9.Display and operation: integrated LCD display (128×64 pixels), 4 navigation buttons, support for local parameter setting and status monitoring
Key FeaturesVOGI
1.Support for multiple communication protocols: ABB 3BHE014317R0003 supports Modbus RTU, TCP/IP, Profibus DP, etc., and is compatible with mainstream industrial networks.
2.Wide compatibility power supply:ABB 3BHE014317R0003 input range is 24 V DC ±20% or 100-240 V AC, widely applicated in complex power grids.
3.Flexible extension: Modular design, supports up to 128 I/O point expansion.
4.Robust protection: An ABB 3BHE014317R0003 with -20°C to +60°C operating temperature, IP20 protection, and anti-emc.
5.Supplying hydraulic drive products：ABB 3BHE014317R0003 integrates LCD display and buttons; supporting parameter setting and status monitoring.
6.Power failure protection: ABB 3BHE014317R0003 can add optional lithium batteries, parameters can be saved for ≥72 hours.
7.Smart diagnostic: ABB 3BHE014317R0003 can conduct on-line self-diagnosis, supports fault alarm and remote firmware upgrading.
8.Compact configuration: ABB 3BHE014317R0003 is enclosed in a metal shell, which occupies less installation space and is suitable for the control cabinet internal environment.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
1.Industrial automation control: factory assembly line control, PLC system integration, mechanical equipment logic control.
2.Power system: substation monitoring, distribution automation, power protection device communication management.
3.Process industry: process control and data acquisition (SCADA system) in petrochemical, water treatment, pharmaceutical and other industries.
4.Transportation infrastructure: tunnel/bridge equipment monitoring, rail transit signal control, intelligent lighting system management.
5.New energy field: wind power/photovoltaic power station equipment control, energy storage system status monitoring.
6.Building automation: building HVAC control, intelligent security system integration, energy management platform.
7.Metallurgy and mining: blast furnace control, conveyor belt system monitoring, mining equipment protection.
