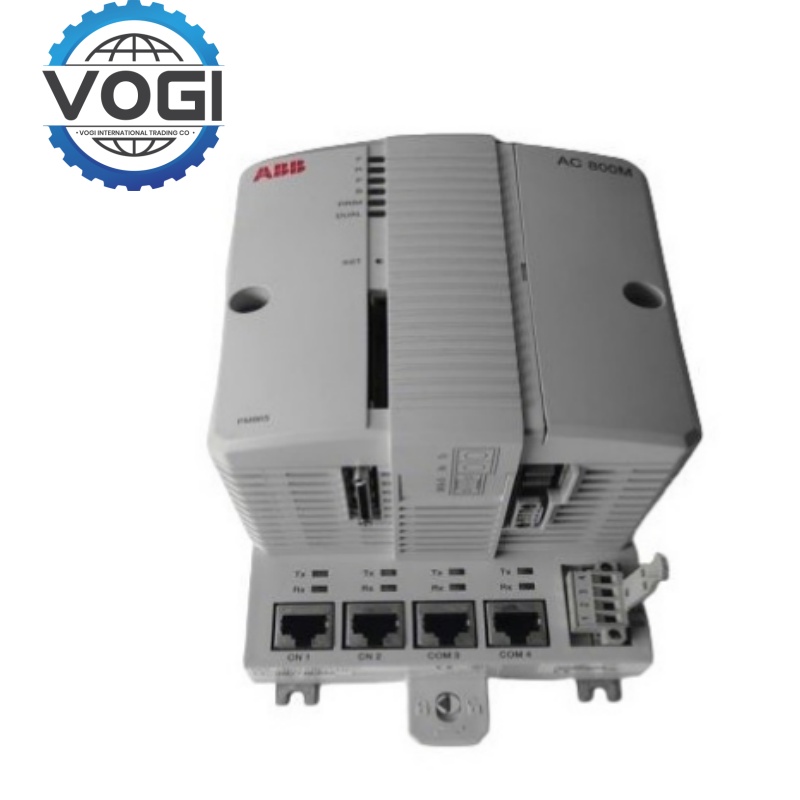

ABB 3BHL000986P4000 High-voltage Relay Module
Key SpecificationsVOGI
1.Power input Main power supply: supports 24 V DC ±20% or 100-240 V AC (adaptive input, 50/60 Hz.
2.Backup battery: built-in lithium battery, parameters can be retained after power failure (typical battery life: 72 hours)
3.Communication interface: standard RS-485 (Modbus RTU), Ethernet (TCP/IP), optional Profibus DP or CANopen modules, support multi-protocol industrial networking.
4.Programmable input: 8 digital inputs (24 V DC, optical coupler isolation) + 2 analog inputs (0-10 V/4-20 mA), compatible with sensor and switch signals.
5.Relay output: 4 mechanical relays, contact capacity 5 A @ 250 V AC or 30 V DC, directly drive small and medium loads.
6.Device capacity: supports up to 128 I/O point expansion, logic program storage capacity 512 KB
7.Operating temperature: Industrial wide temperature design (-20°C to +60°C), stable operation under non-condensing conditions.
8.Humidity range: Humidity adaptability to 5%-95% (non-condensing) environment.
9.Display and operation: Integrated 128×64 pixel LCD screen, with 4 navigation buttons
Key FeaturesVOGI
1.High reliablity: ABB 3BHL000986P4000 uses industrial grade protection design, dual power redundancy (main power + backup battery), resist vibration, electromagnetic interference.
2.Multi-protocol communication: The ABB 3BHL000986P4000 supports multiple communication standards such as RS-485, Ethernet, and Profibus DP, allowing seamless integration into industrial automation networks.
3.User-defined logic control: 8 programmable user inputs and 4 relay outputs.
4.User-friendly operation: The backlit LCD display and multi-functional buttons enable real-time monitoring and parameter setting on the ABB 3BHL000986P4000.
5.Temperature adaptable: ABB 3BHL000986P4000 works steadily in the interior of -20℃ to+70℃suitable for harsh industrial conditions.
6.Data protectionMicrocontroller: internal 16MB non-volatile storage(Flash) + battery backup.
7.Modular expansion: ABB 3BHL000986P4000 supports modular hardware expansion, making it easy to upgrade and maintain functions later.
8.Compliance certification: ABB 3BHL000986P4000 complies with widely accepted international industrial standards such as CE and UL, in order to adhere to the global deployment needs.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$50 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
1.Industrial automation control: ABB 3BHL000986P4000 is suitable for production line logic control, equipment status monitoring and automated process management.
2.Power system protection: ABB 3BHL000986P4000 is used for distribution system control, circuit breaker protection and real-time data acquisition of power grid.
3.Petroleum and chemical: ABB 3BHL000986P4000 supports process control in hazardous environments (such as pump valve management, pressure/temperature monitoring).
4.Transportation: ABB 3BHL000986P4000 is used for rail transit signal control, tunnel ventilation system and energy management.
5.Manufacturing equipment integration: ABB 3BHL000986P4000 is compatible with robotic arms, CNC machine tools and other equipment to achieve collaborative control of smart factories.
6.Water treatment and environmental protection: ABB 3BHL000986P4000 is used for pump station control, water quality monitoring and sewage treatment automation.
7.Building intelligence: ABB 3BHL000986P4000 integrates building automation systems (such as centralized management of lighting and HVAC).
8.Metallurgy and mining: ABB 3BHL000986P4000 is suitable for high dust and high vibration scenarios, and controls heavy machinery and production processes.
