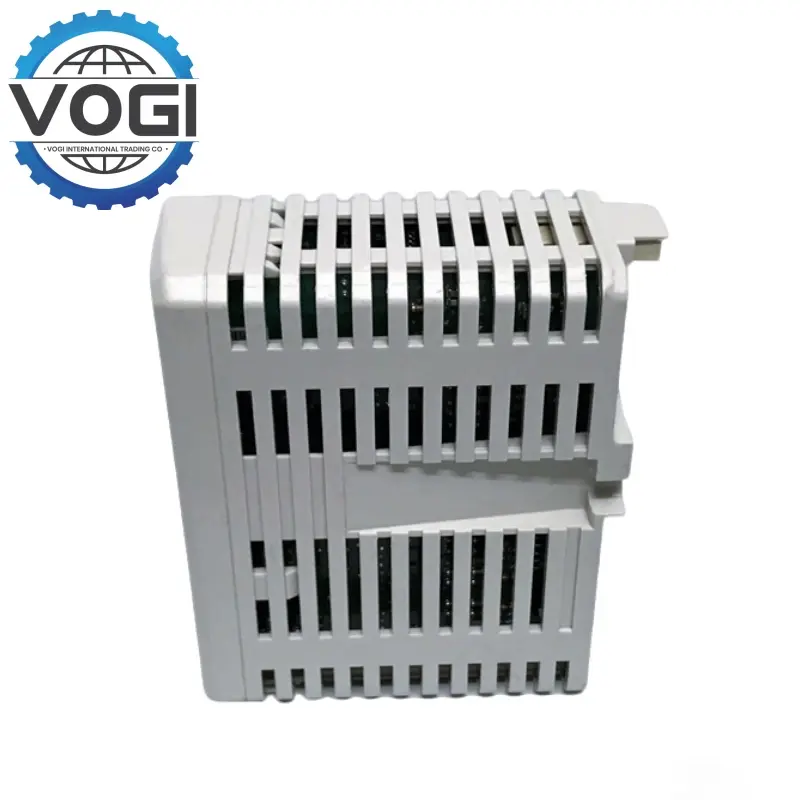

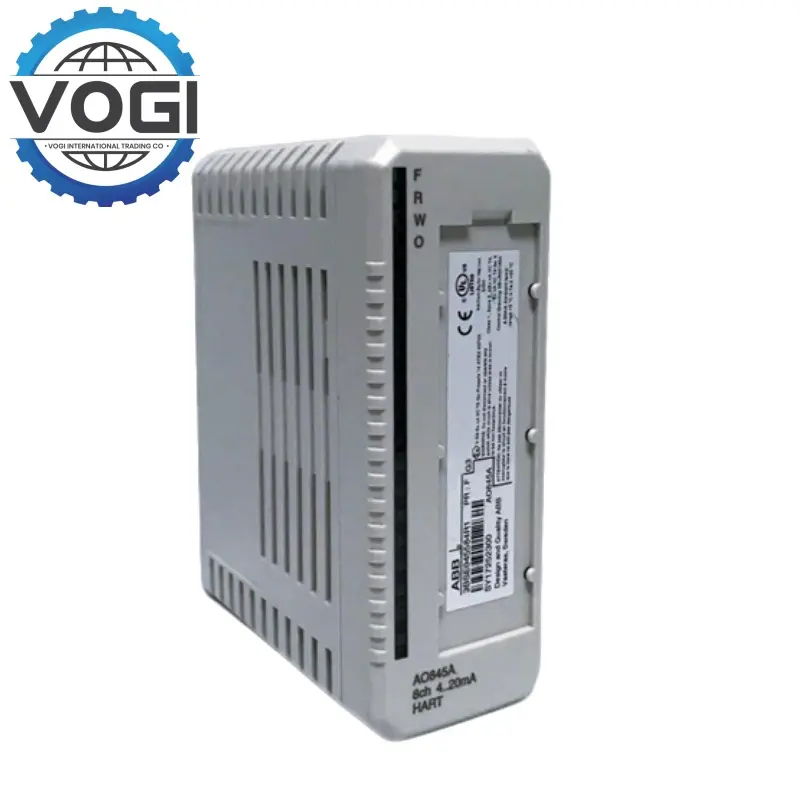

ABB AO845A 3BSE045584R1 Analog Output Module
Key SpecificationsVOGI
Signal Specifications: 4 - 20mA
Number of channels: 8 unipolar analog output channels
Resolution: 12 bits.
Isolation: 1 group of 8 channels isolated from ground.
Output Load: 750Ω maximum.
Error Range: 0.1% maximum.
Temperature Drift: 50ppm/°C max.
Update Cycle Time: 10ms.
OUTPUT SPECIFICATIONS: Current Limit (Short-circuit protected current limited output).
Maximum Field Cable Length: 600m (656 yd).
This is your Description, and it is limited to about 20 words
Insulation Resistance: 500V dc Dielectric Test Voltage.
Power consumption: 3.5W typical.
Max Current Draw: 125mA max on +5V module bus, 218mA on +24V ext.
HazLoc Approvals: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2.
Marine certifications: BV, DNV, LR
Protection class: IP20 per IEC 60529
Operating temperature: 0 to + 55°C (+32 to + 131°F), 40°C (104°F) in vertical installation in compact MTU.
Storage temperature: −40 to+70°C (−40 to +158°F).
Degree of Pollution: 2, IEC 60664 - 1.
ISA - S71 Corrosion protection 04: G3.
Relative humidity: 5-95%, non-condensing.
Electromagnetic compatibility: EN 61000 - 6 - 4; EN 61000 - 6 - 2
Pollution degree according to IEC 60664: Degree 2
Equipment Class: Class I (Protective Earth) as per IEC 61140.
RoHS Compliant: Directive / 2011/65/EU (EN 50581:2012)
Key FeaturesVOGI
Channel output 8 unipolar analog output channels, signal specification 4 - 20mA, multi-channel control.
High precision: ABB AO845A with 12-bit resolution, maximum error of 0.1%, can achieve accurate analog output control.
Super stable: ABB AO845A has short-circuit protection and self-diagnosis functions. It can report various common errors to ensure the stable operation of the system. Plugs in the HART communication to interact with other smart devices.
Space-saving: ABB AO845A has small in size, saves electrical panel space, and can be easily installed and repaired.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Industrial automation: ABB AO845A is used in the manufacturing industry and other fields to control actuators, sensors and other equipment to achieve automated control of the production process, such as precise control of valves and motors on the production line.
Process control: ABB AO845A ,used in petrochemical, electric power, metallurgy and other industries to control process parameters such as temperature, pressure, flow and so on to ensure stable and efficient production process.
System: This signal can act as a standard signal output module in the data acquisition system, and can also be used in the monitoring system to perform corresponding control operations according to the collected data.
