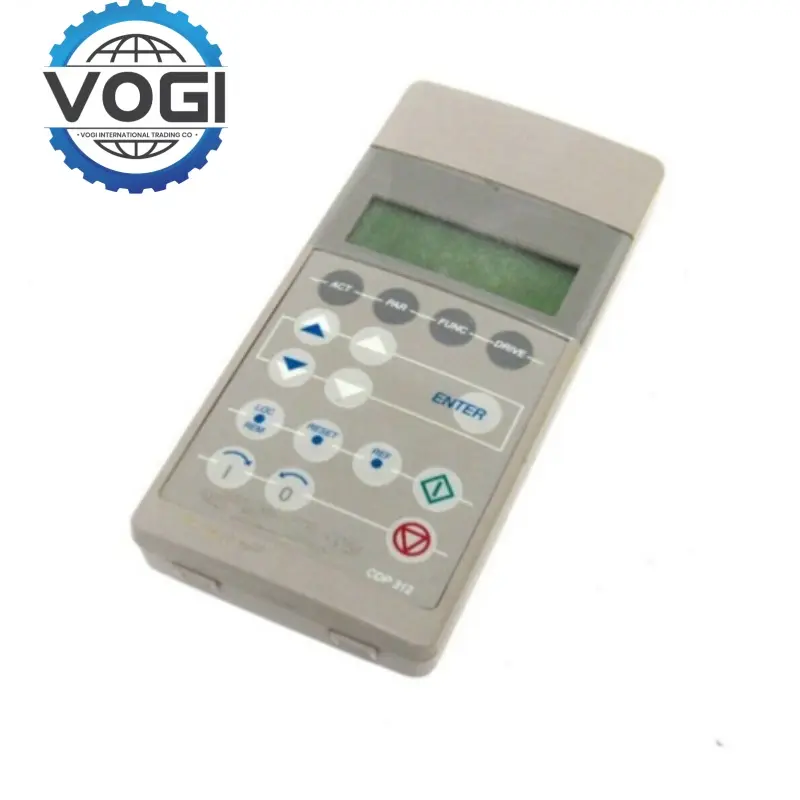

ABB CDP312 3ADT220071R0004 CONTROL PANEL
Key SpecificationsVOGI
1. Applicable Drives: DCS500 series DC drives.
2. Power supply
Input voltage: 24V DC (±10%), supports reverse connection protection.
Power consumption: ≤10W, low power consumption design.
3. Communication interface
RS-485: 1 interface, support MODBUS RTU protocol, maximum rate 9600bps.
Ethernet: 2 RJ45 interfaces (10/100Mbps), support ABB customized protocol.
4. Protection level: IP20 (dustproof, to be used with cabinet).
5. Operating temperature: -20℃ to 60℃, adapting to industrial field wide temperature environment.
6. Display and Operation: Backlit LCD screen: 4 lines × 20 characters, supports Chinese/English menu.
7. Operation mode: 4 function keys + rotary encoder, support one-key start/stop.
8. Memory capacity: 64KB, can store multiple sets of drive parameter sets.
9. Certification: CE (Electromagnetic Compatibility and Low Voltage Directive), RoHS (Lead Free Design).
Key FeaturesVOGI
1. Exclusive DC drive adaptation: The ABB CDP312 is compatible only with DCS500 series DC drives, with deeply optimized parameter configuration and control logic.
2. Industrial-grade reliability
Wide temperature range (-20℃~60℃) + IP20 protection for high dust/vibration environment.
ABB CDP312 has built-in filters and reverse connection protection to ensure power stability.
3. Intuitive Operation Experience
Physical buttons + rotary encoder, support one-key start/stop and quick navigation of parameters.
The ABB CDP312 has a multi-language LCD screen for real-time display of motor status and troubleshooting.
4. Flexible Communication
RS-485 (MODBUS RTU) + dual Ethernet interfaces, supporting ABB customized protocols.
Expandable FIEX-01 module for access to Profinet and other industrial buses.
5. Safety and maintenance design
Individual emergency stop buttons (response <50ms) + hierarchical rights management.
Modular structure supports hot-swapping with power supply, reducing downtime.
6. Energy saving and efficiency
Real-time energy consumption monitoring and optimization, typical scenario energy saving rate of 15%-30%.
ABB CDP312 supports ±100% torque control, suitable for high-precision speed regulation.
