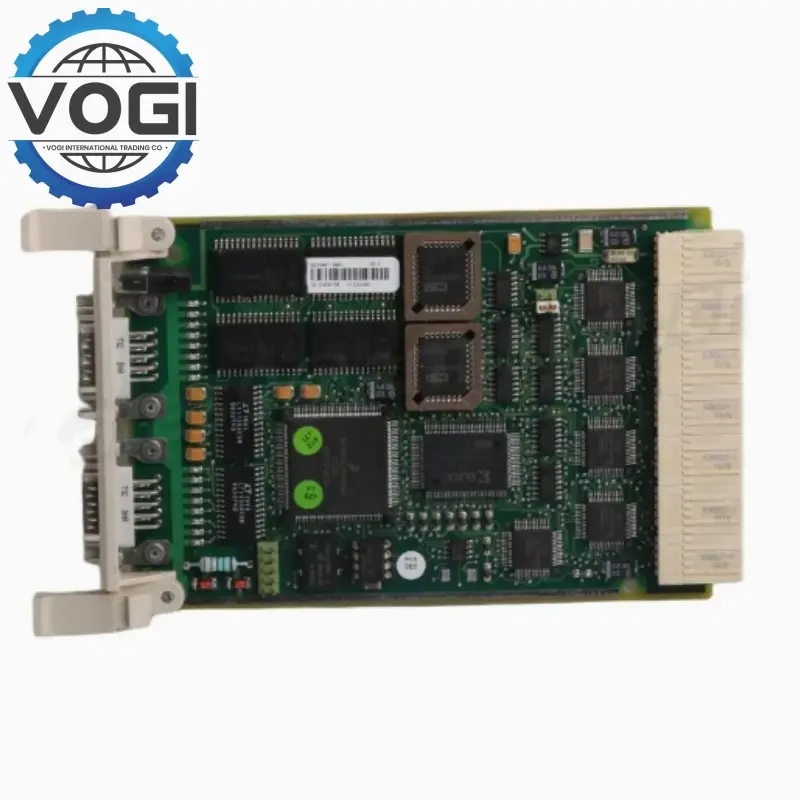

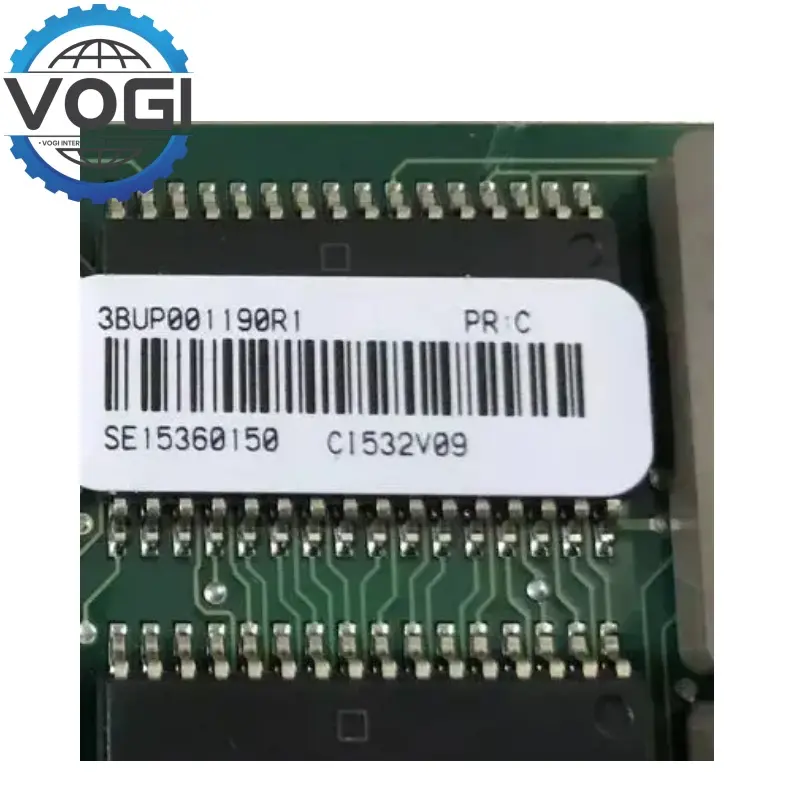

ABB CI532V09 3BUP001190R1 Submodule AccuRay

Product type: Communication module

Application scenario: For Accuray 1190 application set

Communication interface: RS485 and Ethernet/IP

Input voltage: DC 24V

Output current: 8A

Operating temperature range: -40℃ to + 70℃

Number of channels: 2

Protection level: IP20

RMT: By using Ethernet, remote control and data acquisition can be done.

Data acquisition and transmission: The data acquisition and transmission function can be used to, for example, acquire status information, control instructions and the like of the equipment in real-time, and transmit the data to the monitoring system or platform through the LED character display.

Support multiple communication protocols, support multiple communication protocols such as Modbus, which is convenient for various devices and sensors to connect and exchange data, and is beneficial to the interconnection of devices of different brands and models in system integration projects, thereby reducing the system integration difficulty.

General interface:RS-232, etc can be used to connect the keyboard with other equipment for communication with others.

Data collection and transmission: Receive the radioactivity measurement data output by the Accuray nuclear instrument system and transmission to the ABB control system, provide the access system with accurate data support.

Control Signinal Output: Outputting control signals, if necessary, to Accuray and controlling Accuray according to control system command.

Listening Devices: Warning System Actively monitor and verify the working state, if there is a problem, the equipment can communicate with the system, so that the device can grasp the operation of the equipment and change or action can be carried under the working state according to avoid accidents. And since nobody can, the device is able to avoid accidents as best it can.

Industrial Automation Control System：
It is a sub-unit of the ABB control DCS system, and is suitable for industrial automation automation scenarios for data acquisition and transmission, equipment control and system monitoring.

The nuclear instrument system：
ABB CI532V09 can receive radioactivity measurement data from the Accuray nuclear instrument system and send the radioactivity measurement data to the ABB control system. Simultaneously, It also sends control signals to the Accuray device under the control of the control system as per the instructions sent by the control system and gets feedback on the operation statuses of the Accuray device and feeds back to the control system.

Robot control system:
ABB CI532V09 can be used to achieve secure communication between robots and the control system for robots and precisely control robots to perform tasks in place.
