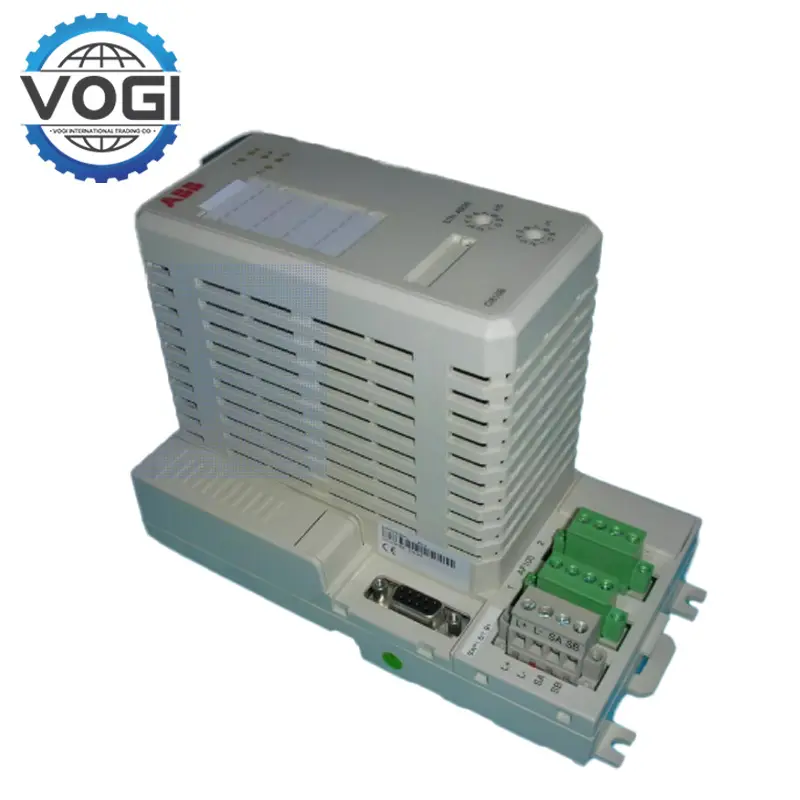

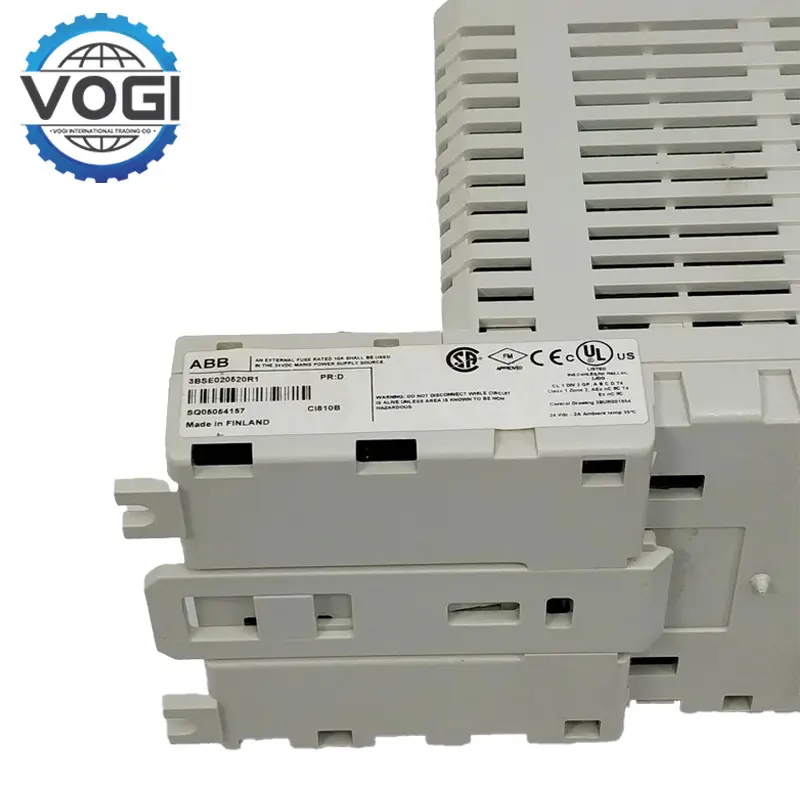

ABB CI810B 3BSE020520R1 Communication Module
Key SpecificationsVOGI
Electrical Parameters:
Operating Voltage: 24 V DC2.
Current Consumption: 807 mA7.
Communication Rate: Up to 12 Mbps (Profibus DP).
Communication Specifications:
Supported Protocols: AF100, Profibus, Ethernet/IP, Modbus TCP/RTU, etc.
Communication Interface: Twisted - pair physical layer, compliant with AF100 standard. It is equipped with 2 AF100 twisted - pair modems.、Environmental Parameters.
Operating Temperature Range: - 25 °C to + 60 °C.
Humidity Range: 0 % - 95 % non - condensing.
Protection Class: IP207.
Key FeaturesVOGI
Edge computing and data processing capabilities: ABB CI810B integrates an ARM Cortex-A9 processor, supports local data pre-processing and logic control, and reduces the load on the host computer.
Fast data transfer: The module supports a communication rate of up to 12 Mbps meaning it can quickly and accurately send large amount of data. In high real-time industrial control scenarios (robot control, high-speed production line monitoring, etc.), the ability of high-speed data transmission can ensure that control instructions are transmitted in time and feedback information is transmitted back to achieve the efficient and stable operation of the production process.
Stable electrical performance: ABB CI810B adopts 24 V DC power supply, 807 mA current consumption, ensuring good electrical stability and anti-interference performance. It can function normally in industrial electromagnetic enviornments that are complex to ensure the reliability of communication.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Water treatment: In sewage treatment plants, water supply networks and pumping stations, ABB CI810B supports multi-protocol equipment collaborative control. For example, Modbus TCP integrates water quality analyzer, dosing pump and flow meter data to dynamically optimize the amount of coagulant added.
Smart manufacturing: In automobile manufacturing, electronic assembly and food processing production lines, the module realizes equipment networking and production data visualization. For example, in the automobile welding workshop, the robot controller and AGV scheduling system are connected through the OPC UA protocol to monitor the welding quality and material flow in real time.
Petrochemical: In refineries, ethylene plants and oil pipelines, ABB CI810B realizes the interconnection and interoperability of distributed control systems and field instruments. For example, in the monitoring of long-distance pipeline pump stations, the pressure transmitter and valve positioner are connected through Profibus DP to adjust the oil flow in real time.
