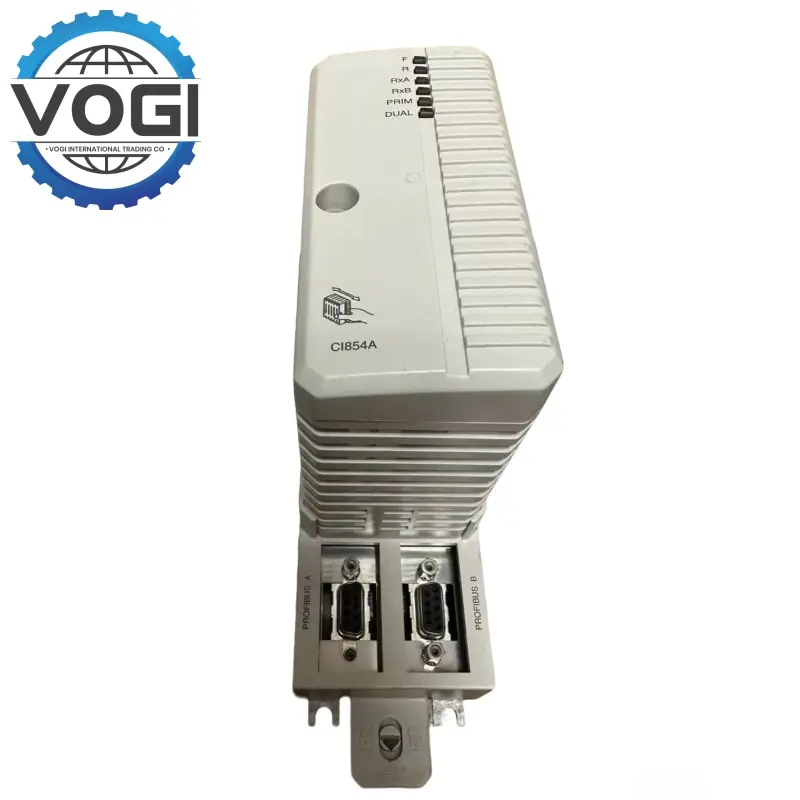

ABB CI854AK01 3BSE030220R1 PROFIBUS-DP/V1 interface
Key SpecificationsVOGI
Communication Protocol : PROFIBUS DP V1 0/V2. 0.
Transmission rate: maximum 12 Mbps.
Protection level: IP20.
Supply voltage: 24 V DC ±10% (nominal), power consumption ≤1.5 W.
Interface type: 1×RS485 port (for PROFIBUS communication).
Full-temperature operation: -25°C to +60°C
Ambient storage temperature: -40°C to +70°C
Humidity: ≤95% RH (non-condensing)
Certifications: CE, RoHS, UL, etc., satisfy the requirements of industrial safety and environmental protection.
Diagnostics: Communication status LED indication to show running/error (for ABB), Built in Parameter configuration software ( ex: ABB Control Builder)
Key FeaturesVOGI
Communication interface
The CI858AK01 3BSE029129R1 ABB is a slave module which supports the PROFIBUS DP protocol to achieve efficient communication between industrial equipment and bus.
Plug and play design
ABB CI854AK01, Easy installation, easier configuration process, and deployment complexity is reduced.
Industrial-grade reliability
The ABB CI854AK01 3BSE030220R1 can adapt to a wide temperature range (-25°C ~ +60°C) and strong electromagnetic interference environment, which can meet the stringent requirements of industrial sites.
Compact and rugged
ABB CI854AK01 Small size saves installation space. IP20 protection level: no dust and no touch.
Diagnosis and status monitoring
Communication status is visualized via built-in LED indicator and dual-color light warning, facilitating efficient fault location;
Strong compatibility
CI854AK01 ABB 3BSE030220R1, Compatible with a variety of ABB and third-party controllers, broadening the PROFIBUS access capabilities of non-intelligent devices.
Low power design
Energy efficiency patch, less operational energy breakdown, widely designed for the long-term continuous working case.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
APPLICATIONVOGI
Expansion of Industrial Automation Networks
It is used to connect non-intelligent devices (traditional sensors and actuators) to the PROFIBUS DP network to achieve the intelligent equipment upgrade.
Complex equipment integration
The Bruel & Kjaer plats, for example, combines the production of precision measuring equipment, through advanced technology management, effectively quality control and the scientific processing of components, the integration of multi-brand device into a unified PROFIBUS network, to simplify the system architecture.
Remote Monitoring and Diagnosis
PROFIBUS Real-time communication: PROFIBUS communication allows means in real time to transmit the equipment status data to analyze the equipment performance and solve the problem quickly.
Distributed I/O system
Is a DCS (Distributed Control System) constructed with ABB S800 I/O modules for large production systems or remote plants.
Ability to: survive in brutal environments
Stable operation of multiplexer under industrial sites with high temperature, high humidity and strong electromagnetic interference (power substation, mining machinery, etc.).
