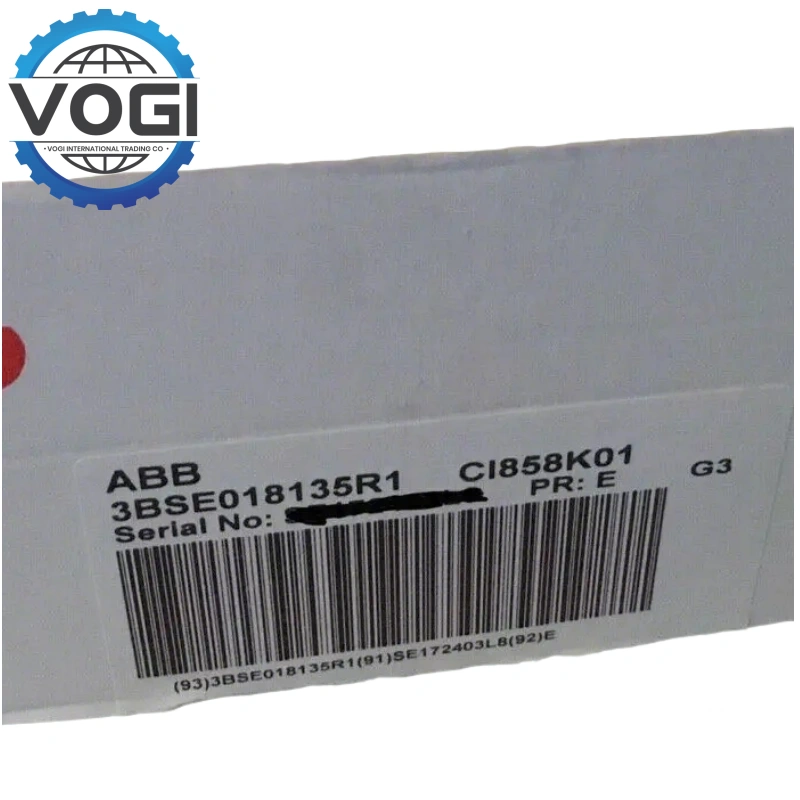

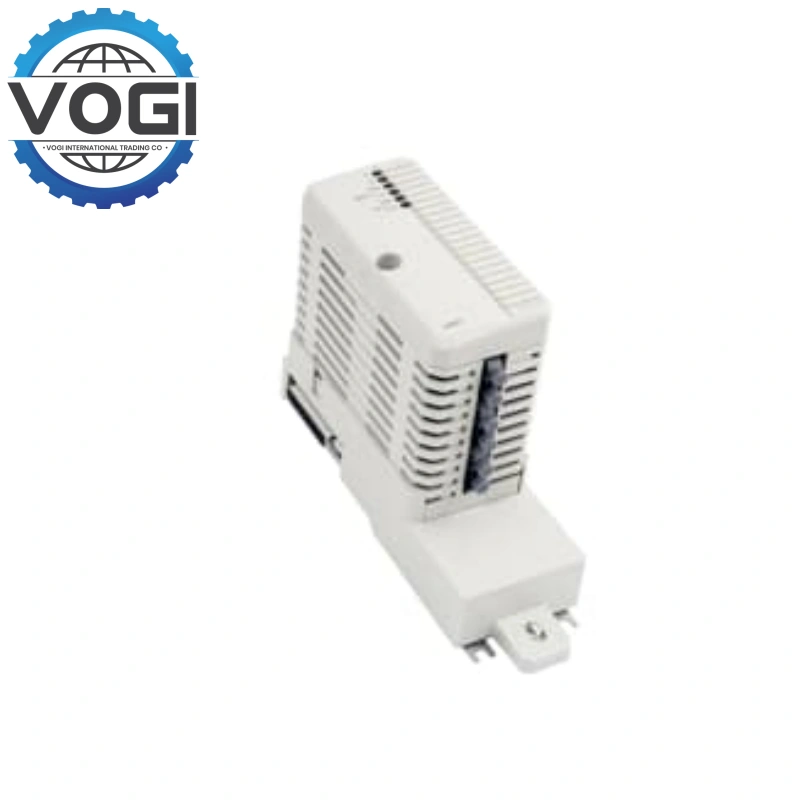

ABB CI858K01 3BSE018135R1 DriveBus Interface
Key SpecificationsVOGI
Input characteristics: 8-channel single-ended input, supports 230-275kΩ impedance, field cable up to 600 meters
Communication interface: CEX bus (64 MHz), DriveBus, I/O bus, etc., supports dual-port RAM communication
Environmental adaptability: operating temperature - 25°C to + 60°C, meets IP20 protection level
Key FeaturesVOGI
High-precision control and data processing
ABB CI858K01 uses Motorola DSP56303 processor (72 MHz main frequency) and Xilinx FPGA chip, with powerful logic computing capabilities and can handle complex control algorithms. Its analog input module supports 8 channels of 0-20mA/4-20mA signals, 12-bit resolution, and temperature drift as low as 50ppm/°C, which is suitable for scenarios with strict accuracy requirements.
Smart and convenient operation
CI858K01 integrates online inertia identification, automatic gain adjustment and other functions, and can quickly complete parameter optimization through iMotion software. In addition, it supports online IO exchange, and modules can be replaced without downtime, significantly reducing maintenance costs.
High reliability and long life cycle
CI858K01 uses dual-port RAM (DPRAM) to achieve redundant communication between the controller and the module to ensure stable data transmission. ABB promises to provide at least 25 years of technical support and is compatible with existing system upgrades to avoid repeated investment.
Flexible expansion capability
CI858K01 can connect up to 12 I/O units and supports a variety of expansion modules (such as NAIO-03 analog I/O, NPCT-01 pulse counter, etc.) to meet automation needs of different scales.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$16 |
|
South Asia |
$56 |
|
South Africa |
$47 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Industrial automation: Robot control, automated production lines, and coordinated equipment operation (such as optimization of food processing equipment start and stop).
Energy and power: Power plant/substation equipment monitoring (temperature, pressure, etc.), integrated intelligent instrument management energy system.
Chemical and process control: Real-time monitoring of production parameters (flow, liquid level), and adaptation to distributed control systems (DCS).
Pulp and paper: Accurately control vehicle speed and tension in paper machine transmission systems to adapt to industry process requirements.
Heavy industrial equipment: Status monitoring of cranes, heating, ventilation and air conditioning (HVAC), etc., supporting real-time data collection from sensors.
