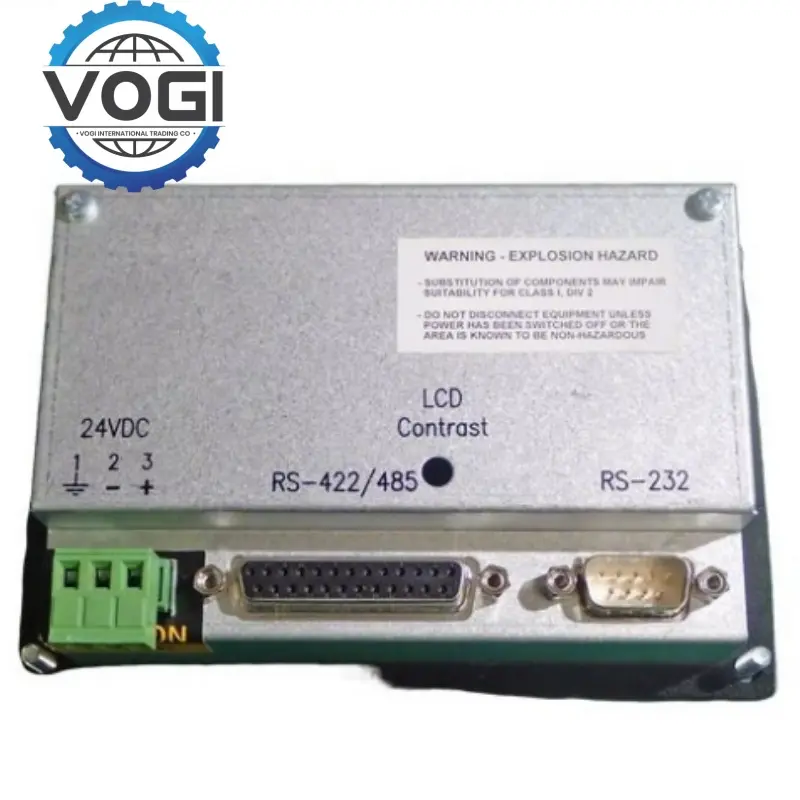

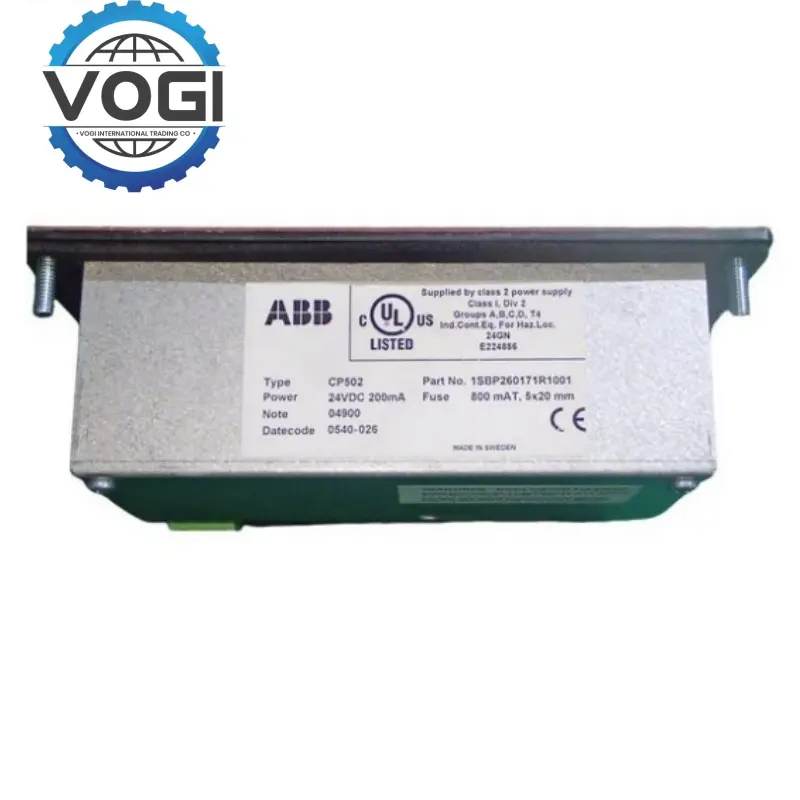

ABB CP502 1SBP260171R1001 Control Panel

2. Extended protocols: Supports Modbus RTU/TCP, EtherNet/IP via external modules.

3. Physical interfaces

PROFIBUS-DP: 9-pin D-type interface (Sub-D9), supports redundant communication.

Extended interface: RS-485 (Modbus RTU), RJ45 (Modbus TCP / Ethernet).

4. Data rate:

PROFIBUS-DP: up to 12 Mbps.

RS-485: up to 115.2 kbps.

Ethernet: 10/100 Mbps adaptive.

5. Operating temperature: -20℃ ~ 60℃ (wide temperature design).

6. Protection level: IP20 (standard) or IP65 (external protective housing required). 4.

7. Input Voltage: 24V DC (±15%).

8. Power Consumption: 5W typical, 8W peak. 5.

9. Module Expansion: Supports hot-swappable connection of S800 I/O modules.

10. Redundancy support: Dual power input (external module required), PROFIBUS-DP redundant link.

2. High reliability and stability: ABB CP502 is produced in Switzerland, adopts industrial-grade design, adapts to harsh environments, and has redundancy capability. For example, it supports power supply redundancy, communication redundancy and other configurations to ensure continuous operation of the system.

3. Modularity and Expandability: ABB CP502 belongs to ABB DCS system accessories, supporting flexible I/O expansion and customized configuration, suitable for complex control systems. For example, functions can be extended by plug-in function modules, saving space in the cabinet.

4. Communication and compatibility: ABB CP502 integrates a variety of communication interfaces, supporting seamless connection with ABB robotic systems, PLCs and other industrial equipment.

2. Marine Equipment: Flybridge manipulator panels for ship balancing systems and outdoor environment operation.

3. Energy Management: Solar power plant power distribution optimization, supporting smart grid integration.

4. Building Control: Centralized management of building air conditioning and lighting systems, energy saving through BACnet protocol.
