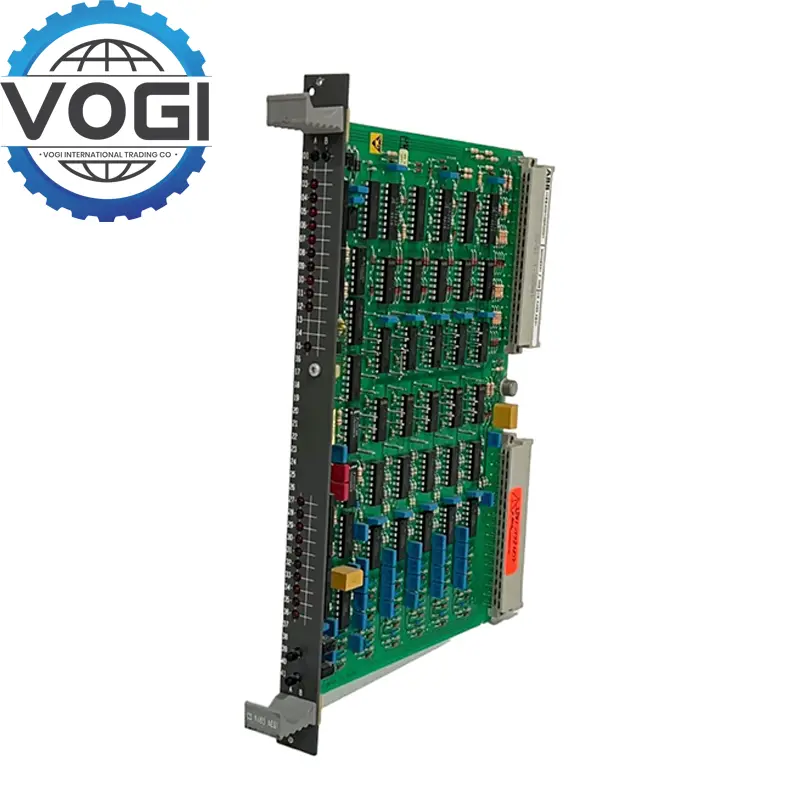

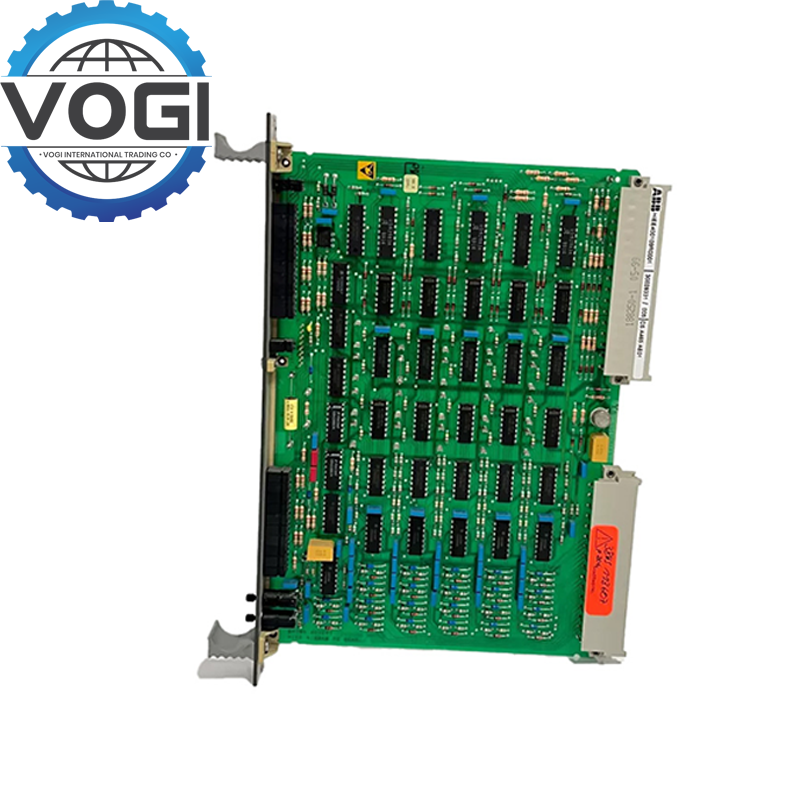

ABB CSA465AE01 HIEE400109R1 Digital Monitoring Module
Technical ParametersVOGI
Product Family: DCS Series (HIEE series)
Module Type: Digital Monitoring Module
Supply Voltage: 12–30 V DC
Current Consumption: ~200 mA at 24 V DC (typical)
Digital Input Channels: Typically 16–32 isolated channels (depending on model variant)
Input Signal Types: 24 V DC logic (PNP/NPN compatible)
Isolation:
1500 V RMS between field and logic
≥ 500 V between channels/groups
Response Time: < 2 ms
Communication Interface:
Backplane bus interface
Front diagnostic port (USB or serial)
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Certifications: CE, UL industrial compliance
Key FeaturesVOGI
Real-Time Digital Monitoring: Fast response for capturing discrete I/O transitions, essential for alarm, interlock, and safety systems.
High Isolation & Reliability: Robust galvanic isolation to protect logic circuitry from voltage spikes and industrial noise.
Modular & Hot-Swappable: Compact, slot-mounted module for easy maintenance and expansion without shutting down the system.
Flexible Input Compatibility: CSA465AE01 HIEE400109R1 Accepts both PNP and NPN 24 V DC input signals from field sensors, switches, and contactors.
Channel Diagnostics: Onboard LED indicators for each input channel simplify fault detection and status verification.
Harsh Environment Tolerance: CSA465AE01 HIEE400109R1 Designed to perform reliably in high-temperature, high-humidity, and dusty industrial environments.
Integration Ready: Plug-and-play compatibility with ABB DCS systems for seamless data transfer and control logic integration
