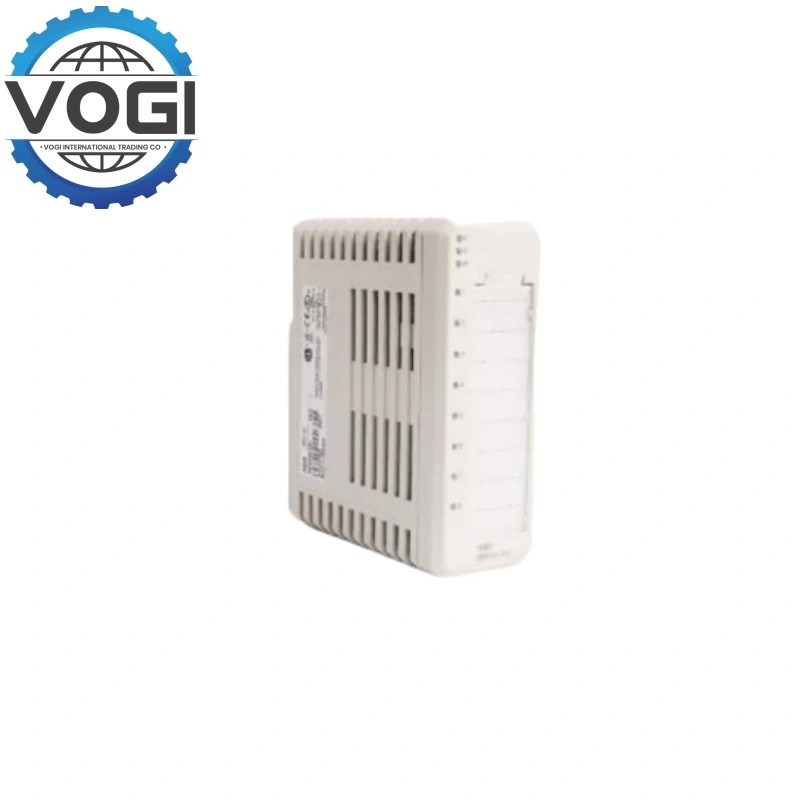

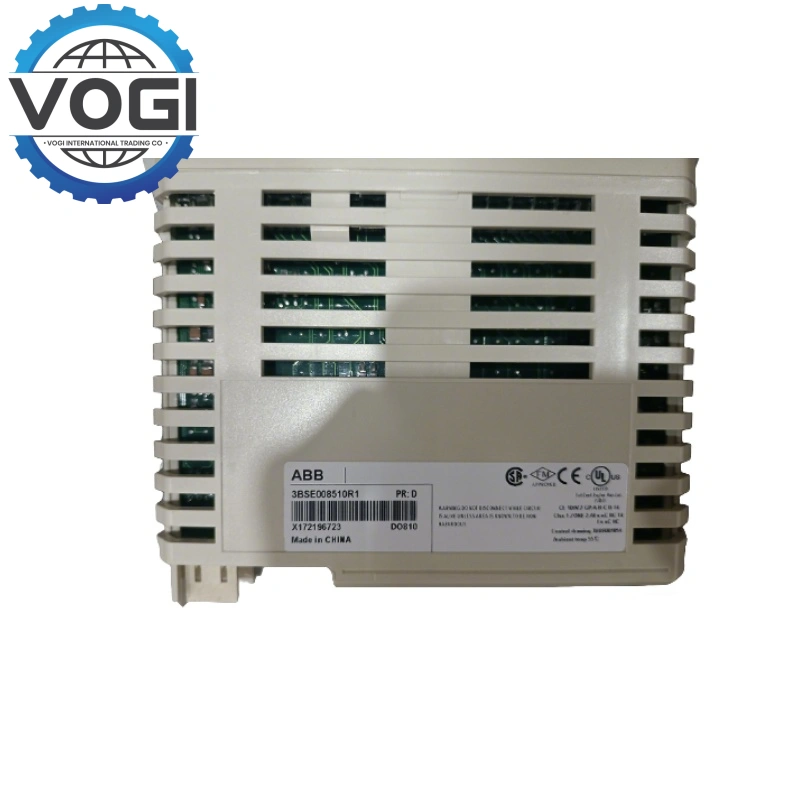

ABB DO810-EA 3BSE008510R2 Digital Output 24V 16 ch
Technical ParametersVOGI
Channels: 16 - mono digital output.
Signal Specification: Operating voltage: 24 V DC.
Output Current: The maximum output current, of each channel is 0.5 A, continuous output Current.
Communication Interface: PROFIBUS - DP interface.
Working Temperature: -20℃-40℃.
Key FeaturesVOGI
High-Reliability Design: ABB DO810-EA use high quality parts to work stably for industrial application, The anti-vibration rain-proof, water-proof and anti-shock design.
Short-Circuit Protection: The output channel with short circuit protection Specifications: Short-circuit Protection: yes Every single output channel short-circuit protection Characteristic, protect module or another parts of the system from short-circuit fault harm.
Over-Voltage and Over -Temperature Protection : ABB DO810-EA has over - voltage and over-temperature protection function, can ensure the module under extreme conditions can work in good condition and guaranteed the service life of module.
Output State Monitoring: ABB DO810-EA adopts output state indication LED light, it is easier for users to have a knowledge of work state of each channel and for troubleshooting and maintenance.
Isolated Grouping: 16 output channels are divided to two isolated groups, each having 8 channels and one voltage supervision input. The reliability and anti -interference capability of the system can be enhanced in this design.
Optical Isolation: ABB DO810-EA Each output channel is provided with optical-isolation barrier, which can conveniently and effectively be shielded optical isolation between field and control system electrical signals also can be prevent the interference of the field environment.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
APPLICATIONVOGI
Production line of industrial automation machine
ABB DO810-EA (3BSE008510R2) In the automotive manufacturing, the food processing, and other industry, DO810-EA can control the robot arm, conveyor belt motor, and pneumatic valve to achieve the precise start and stop and the sequence control of the production line.
Control of processing and power.
ABB DO810-EA(3BSE008510R2) The module can be used to drive control valves, circuit breakers and alarm devices, etc., cooperate with the DCS system, process Parameters to achieve the closed loop control and safety interlock protection.
Industrial Environment Complex
ABB DO810-EA(3BSE008510R2) In addition to the wide temperature operating range and anti-interference designed to cater for metallurgy, papermaking and other high temperature, high humidity industrial environmental high requirements for stability of signal output.
