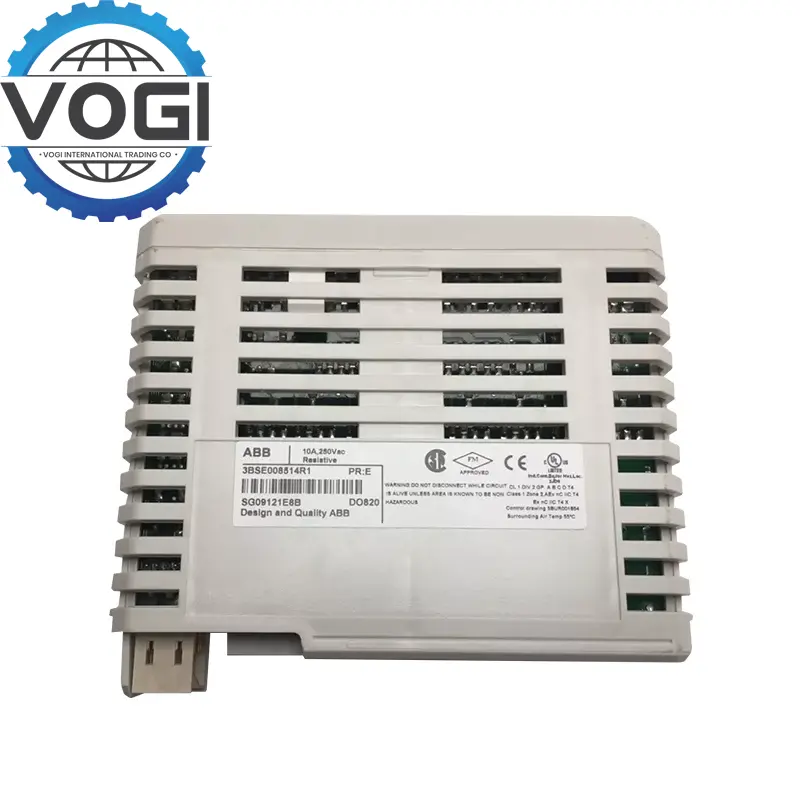

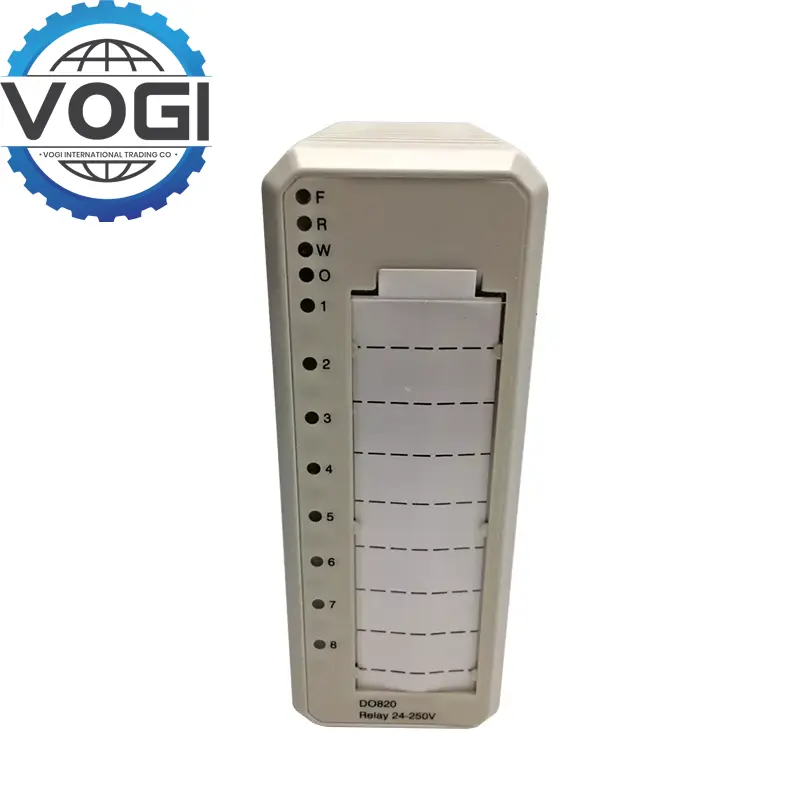

ABB DO820 3BSE008514R1 Digital Output Relay Module
Technical ParametersVOGI
Part Number: 3BSE008514R1 (DO820)
Module Type: Digital Output Relay Module (Normally Open contacts)
I/O System: ABB S800 I/O
Channels: 8 isolated relay outputs
Signal Specification: 5–250 V AC/DC (typical 230 V AC/DC)
Continuous Output Current: 3 A per channel
Switching Capacity: 750 VA (AC), 72 W (DC) per channel
Load Isolation: Individually galvanically isolated (channel-to-channel and to common)
Dielectric Test Voltage: 2000 V AC (field side to common)
EMC Protection: Optical isolation barrier, suppressors and snubber components per channel
Supply Voltage (ModuleBus): +5 V DC: 60 mA; +24 V DC: 140 mA; External 24 V: 0 mA
Power Dissipation: Typically 2.9 W
Response Time: ≤ 10 ms ON, ≤ 15 ms OFF
Max Field Cable Length: 600 m (656 yd)
Operating Temperature: –40 °C to +80 °C
Storage Temperature: –40 °C to +70 °C
Certifications: UL Recognized Component; CE marked
Key FeaturesVOGI
Eight Individually Isolated Relay Outputs: Galvanic isolation on all channels prevents signal crossover and faults.
Wide Voltage & Current Range: Handles 5–250 V AC/DC at 3 A, suitable for diverse field devices.
On-Board Diagnostics & Status LEDs: Output state and fault indication per channel, plus module health monitoring.
EMC and Transient Protection: Each output channel includes suppressors and snubbers for reliability.
Fast Response Times: ≤ 10 ms ON and ≤ 15 ms OFF, enabling real-time control.
Hot-Swappable Field Replacement: Replace modules under power using compatible MTUs like TU836/TU837.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Nordic offshore wind farms
Equinor wind farms in Norway use DO820 to drive the variable pitch system relays, which can withstand -30°C low temperature and salt spray corrosion.
North American smart buildings
In the HVAC system of Hudson Yards in New York, DO820 controls the start and stop of 2000+ wind turbines, increasing energy efficiency by 15%
