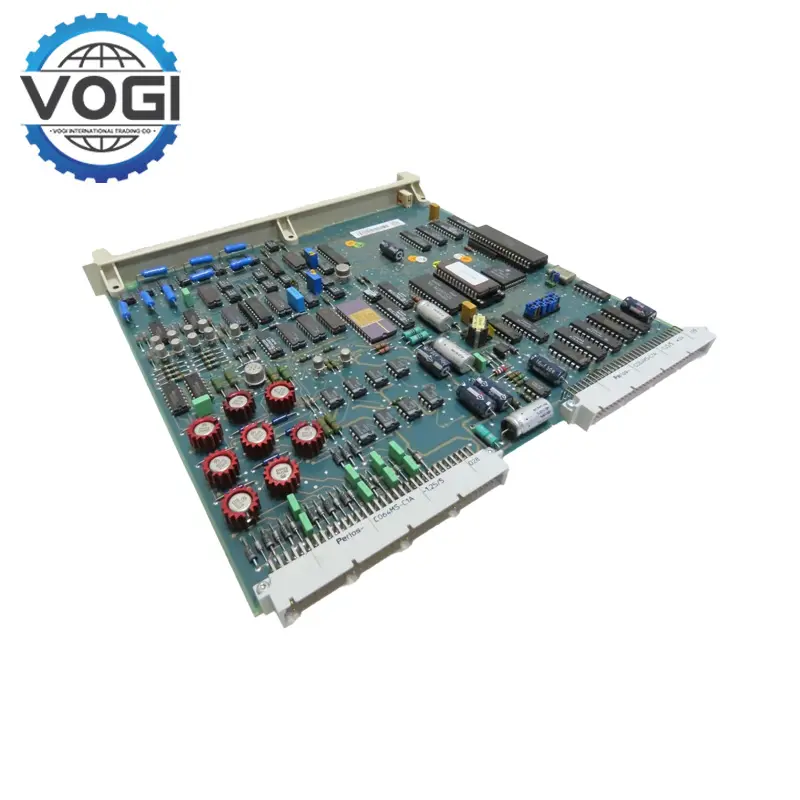

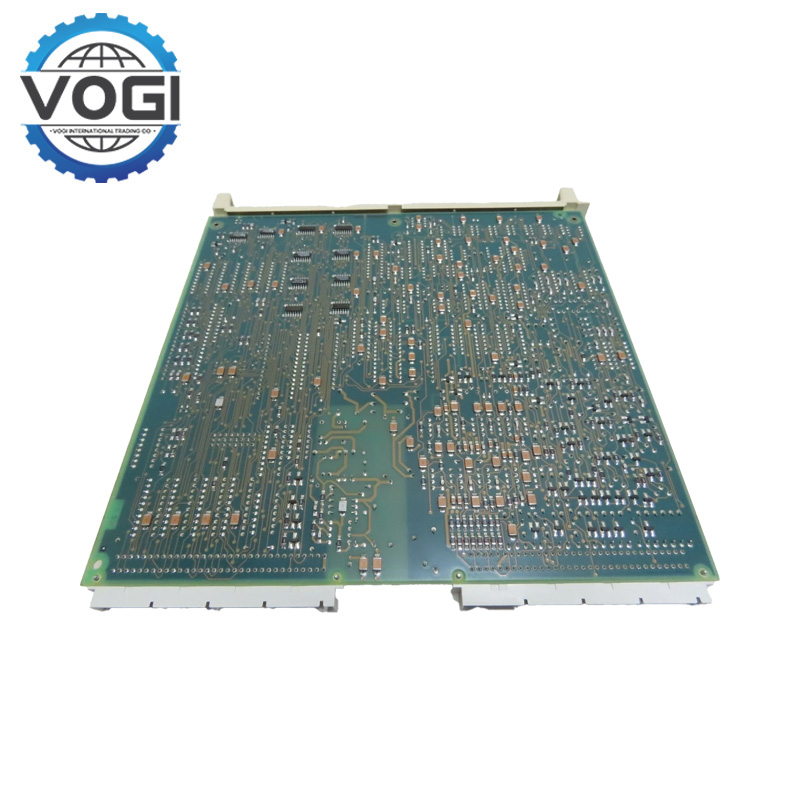

ABB DSAX110 57120001-PC Analog Input/Output Board

Power input: 24V DC ±10%

Analog input channels: 8, direct ground input (single-ended)

Resolution: 12-bit unipolar

Input signal range: 0 to +10V or 0 to +20mA, 4 to 20mA (zero point raised by switch), signal conversion through 250Ω, 0.05% shunt

Analog output channels: 8, supervised current output

Communication interface: supports multiple fieldbus communication protocols

Operating temperature: -20°C to +60°C

Humidity range: 5% - 95% RH

Protection level: IP20, can prevent a certain degree of foreign intrusion.

Multi-signal compatible input: It can accept a variety of common analog signals, adapt to various sensors, and is widely used in data collection in different industrial scenarios. ​

High resolution and accuracy: 12-bit resolution combined with high measurement accuracy can accurately collect analog signals, provide reliable data for the control system, and ensure accurate control of the production process. ​

Flexible communication capability: It supports a variety of fieldbus communication protocols and is easy to integrate with automation equipment and control systems of different brands and types to build complex industrial automation networks. ​

Reliable stability: With a wide temperature operating range and good humidity adaptability, it can operate stably under different environmental conditions, reduce equipment failures, and reduce maintenance costs.

Industrial automation production line: connect temperature, pressure, flow and other sensors, collect real-time data and transmit it to the control system, realize accurate monitoring and control of the production process, and ensure efficient and stable operation of the production line. ​

Energy industry: in the process of oil and natural gas extraction and processing, it is used to monitor various process parameters to ensure the safety and stability of energy production and transportation. ​

Smart building: monitor and control environmental parameters such as temperature, humidity, air quality, etc. in the building, optimize the operation of HVAC system, and improve the intelligence level of the building and living comfort. ​

Environmental protection engineering: in sewage treatment plants and waste gas treatment devices, connect various sensors to monitor water quality, waste gas emission indicators, etc., provide data support for the automatic control of environmental protection equipment, and ensure that environmental protection facilities meet the standards.
