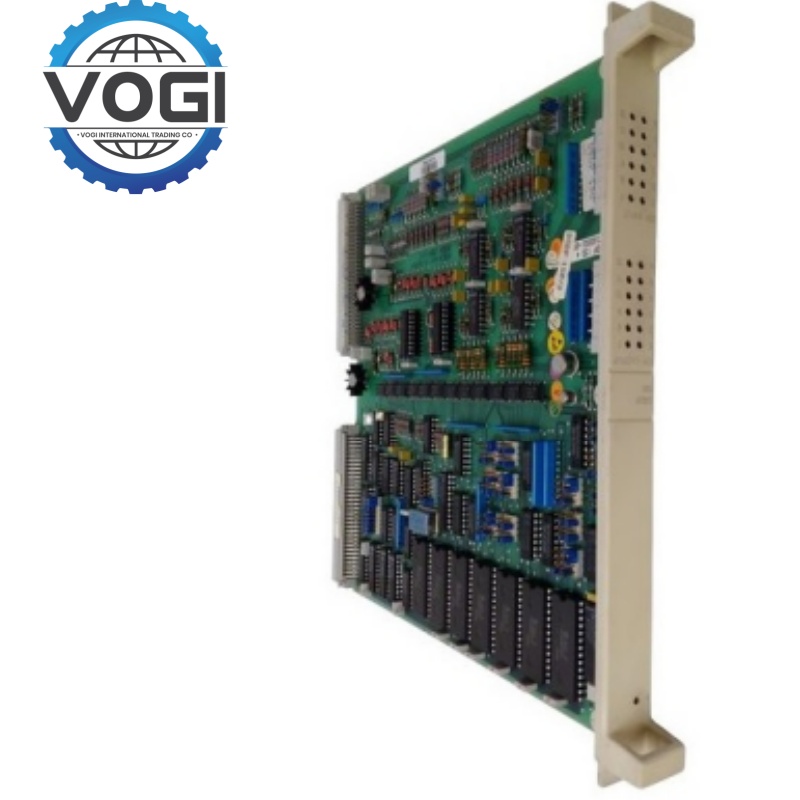

ABB DSDP140A 57160001-ACT Pulse Counter Board
Key SpecificationsVOGI
Pulse In: 1 channel, supports three inputs, maximum current ±15 mA, frequency up to 80 kHz.
Digital Input (DI): 2 channels, working voltage 24 V DC.
Digital output (DO): 4 channels, operating voltage 24 V DC.
Analog Output (AO): 1 channel with 11-bit resolution (including sign bit) and configurable output range of 0 to +10 V or 0 to ±20 mA.
Positioning loop inputs: Positioning loop inputs for pulse generators provide three inputs with a maximum current of ±15 mA and a frequency of up to 80 kHz.
Key FeaturesVOGI
1. Pulse Counting Function: The ABB DSDP140A supports high frequency pulse inputs (up to 80 kHz) for accurate pulse counting and measurement.
2. Multi-Channel Input/Output: The ABB DSDP140A features multiple input and output channels, including pulse inputs, digital inputs and outputs, providing flexible signal control.
3. Digital and analog outputs: The ABB DSDP140A supports digital outputs and configurable analog outputs (0-10V or 0-20mA) to adapt to different control needs.
4. High resolution: ABB DSDP140A analog output has 11-bit resolution, providing accurate analog signal output.
5. Positioning Loop Inputs: ABB DSDP140A is suitable for precise positioning control and supports three inputs to ensure accurate operation.
6. 24V DC power supply: ABB DSDP140A supports standard industrial power supply, suitable for various automation control systems.
7. High reliability: ABB DSDP140A is designed for use in industrial environments with high anti-interference capability and stability.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Process control: for precise counting and measuring of pulse signals, widely used in process control systems in chemical, petroleum, food processing and other industries.
Machine automation: for pulse counting and positioning loop inputs in production lines and automation equipment to ensure precise control and efficient operation.
Metering systems: for metering systems for liquids, gases or electrical energy, with precise processing of frequency and pulse signals.
Building Management Systems (BMS): in building automation to control various devices such as valves, actuators, HVAC systems, etc.
Motion control systems: for precise control of position and speed, for motion control of automated machinery such as robotic arms, conveyor belts, etc.
