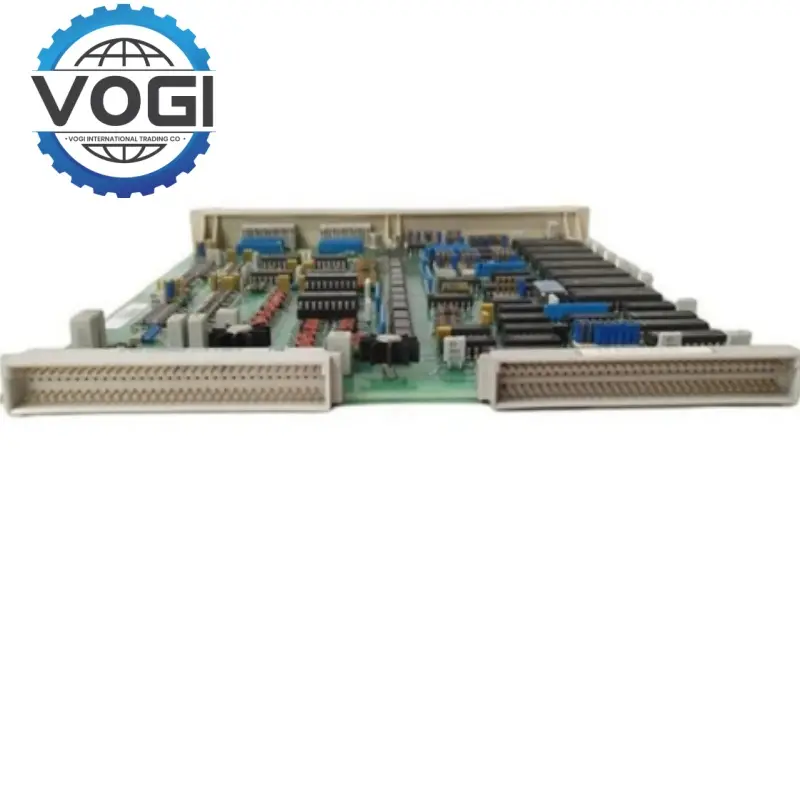

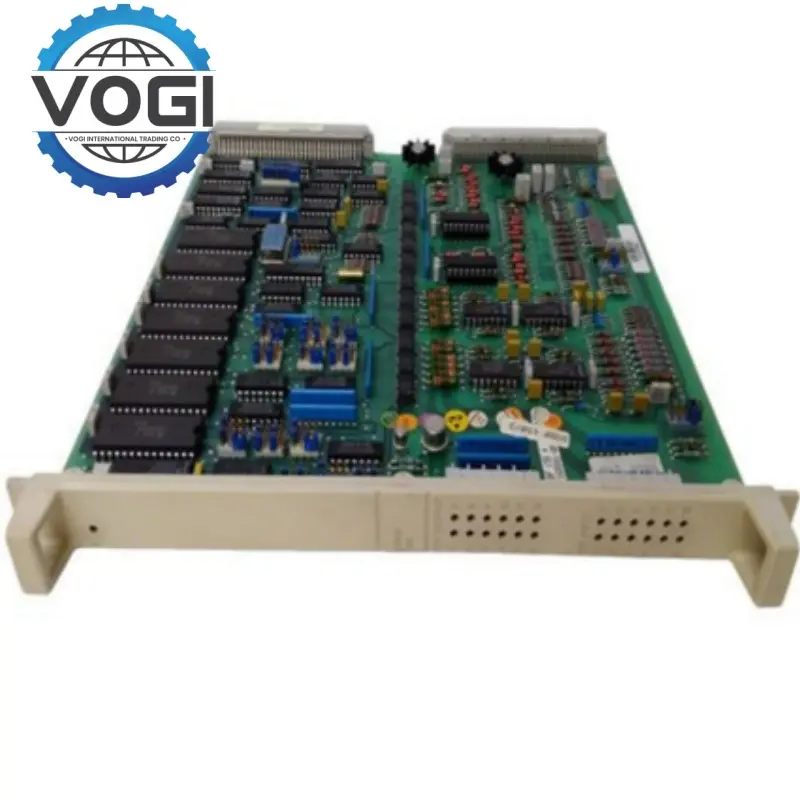

ABB DSDP150 57160001-GF Pulse Distribution Board
Key SpecificationsVOGI
Input voltage: 12 V DC
Output frequency: up to 50 kHz, adjustable from 47 Hz to 63 Hz
Output frequency: up to 50 kHz, adjustable from 47 Hz to 63 Hz
Maximum pulse frequency: 2.5 MHz
Sampling rate: 40 MHz
Analog bandwidth: 12 MHz
Resolution: up to 23 bits
Operating temperature range: -20°C to +60°C
Storage temperature range: -40°C to +85°C
Enclosure protection grade: IP65
Key FeaturesVOGI
1. High Speed Pulse Input: The ABB DSDP150 has a pulse frequency of 50 kHz min for high speed counting and precision.
2. International base: ABB DSDP150 offers resolutions of up to 23 bits, suitable for precise measurements and signal controls.
3. Operating Temperature Range from −20° C to +60° C: With a wide temperature range, the ABB DSDP150 is capable of functioning in extreme industrial conditions.
4. Multiple encoder support: Supporting incremental, absolute and servomotor feedback encoders stable, the ABB DSDP150 can be used in different automation systems.
5. Rated IP65: Dust and water protection are two important features of the ABB DSDP150 that make it ideal for any harsh environment.
6. Small footprint: Due to its small size, the ABB DSDP150 can be integrated in anywhere where space is tight.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Industrial automation: for precise pulse counting and position measurement in automated control systems for production lines, packaging machinery, etc.
Robot Control: Provides precise encoder feedback for positioning and speed control on robots and automated assembly lines.
Process Control: Widely used in process control systems that require precise position and speed measurement, such as in the chemical, pharmaceutical and food processing industries.
Machine Tool Control: For precise position and speed control of CNC machine tools (CNC) to ensure high accuracy during machining.
Energy management: for feedback monitoring and automatic regulation in systems such as generators, wind power generation, hydraulic and pneumatic control.
Transportation systems: Can be used in traffic management systems, such as precise counting and speed measurement.
