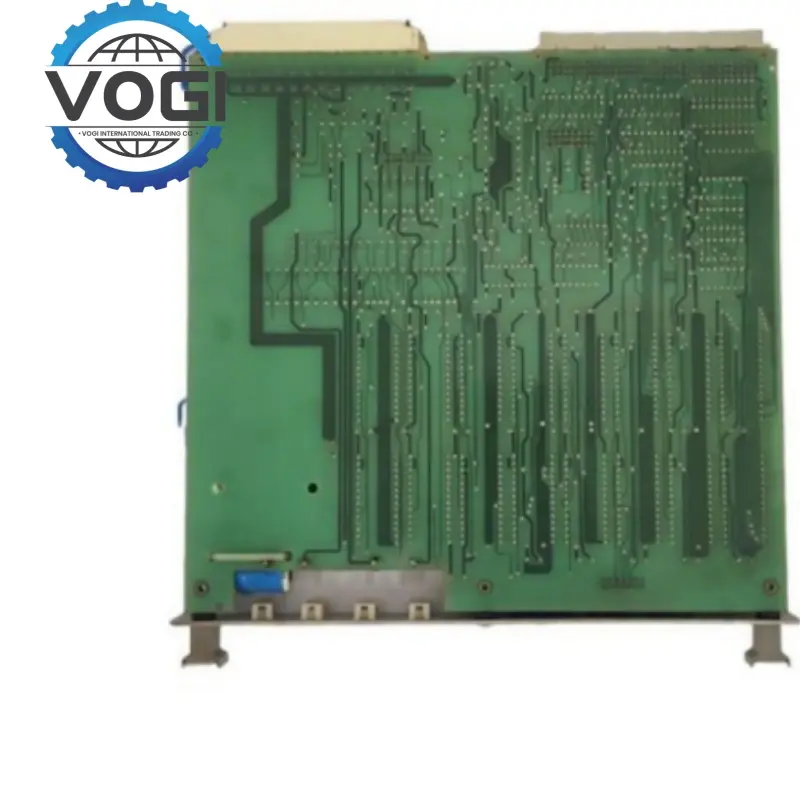

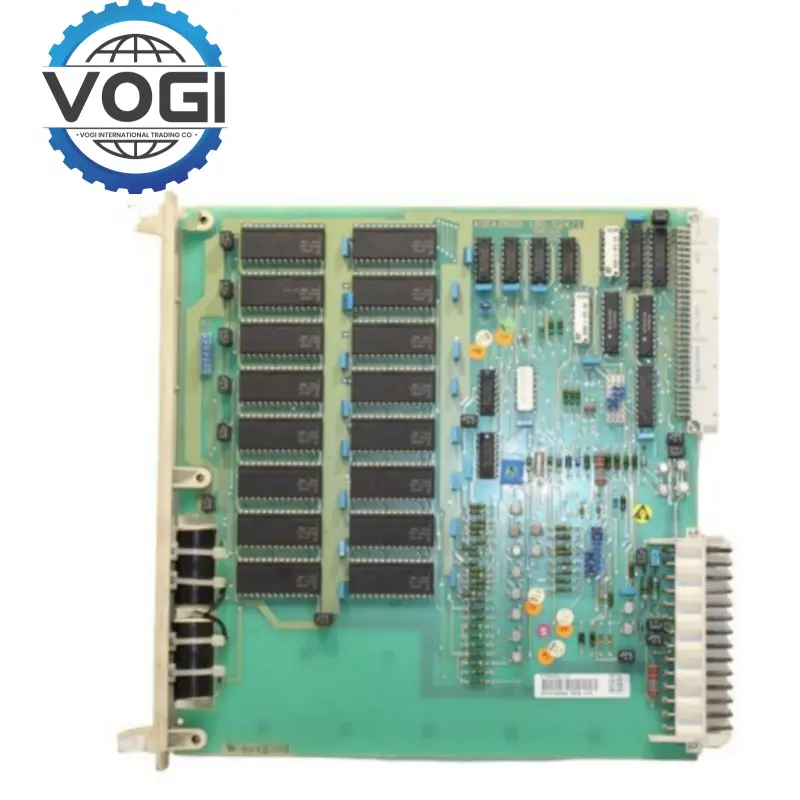

ABB DSMB133 57360001-CY/1 MEMORY MODULE
Key SpecificationsVOGI
Module type: 16-channel digital output module, support PNP/NPN signal.
Working voltage: 24V DC.
Output Load: Maximum current of single channel is 2A.
Isolation Characteristics: Isolation voltage between channels ≥500V AC, support electrical isolation.
Communication protocol: support PROFIBUS DP through the backplane bus, compatible with ABB S800 I/O system.
Installation: DIN rail mounting, support hot-swap.
Environmental requirements: Operating temperature -10~60°C, protection class IP20 (indoor use).
Key FeaturesVOGI
Electrical isolation: Isolation voltage between channels ≥500V AC, supporting stable operation in high-noise environments.
Over-current / short-circuit protection: ABB DSMB133 has a built-in hardware protection circuit to reduce the risk of equipment damage.
16-channel transistor output: single-channel maximum current 2A, suitable for relays, solenoid valves and other loads.
Fast response: millisecond signal processing to meet real-time control requirements.
Backplane Bus Integration: ABB DSMB133 supports PROFIBUS DP and DeviceNet Slave protocols, seamlessly connecting with ABB S800 I/O system.
Redundant Configuration: Supports controller redundancy to enhance system availability.
DIN rail mounting: ABB DSMB133 supports hot-swapping (system adaptation required) to minimize downtime.
LED Diagnostics: Real-time channel status indication for quick fault localization.
Wide Temperature Operation: -10~60°C temperature range, adaptable to harsh industrial environments.
Protection level: IP20 Dustproof design, suitable for indoor cabinet installation.
Certification and Compliance
ATEX Zone 2: Some models of ABB DSMB133 are certified as explosion-proof for potentially explosive atmospheres.
UL/CE certification: ABB DSMB133 complies with international safety standards and is available worldwide.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Equipment control: valve opening and closing, motor start and stop, indicator signal output.
Production line monitoring: logic control of production lines in metallurgy, chemical industry, papermaking and other industries.
High-voltage frequency conversion regulation: adapting to wide-power equipment.
Energy management: energy distribution and equipment linkage in electric power, oil, gas and other fields.
Explosion-proof scenarios: ATEX Zone 2 certified, suitable for potentially explosive environments such as petrochemicals and mines.
Precision Manufacturing: Cleanroom equipment control for food processing, pharmaceuticals and other industries.
Municipal engineering: pump sets and valve automation in sewage treatment and water conservancy systems.
Port logistics: remote control of large equipment such as cranes and conveyor belts.
