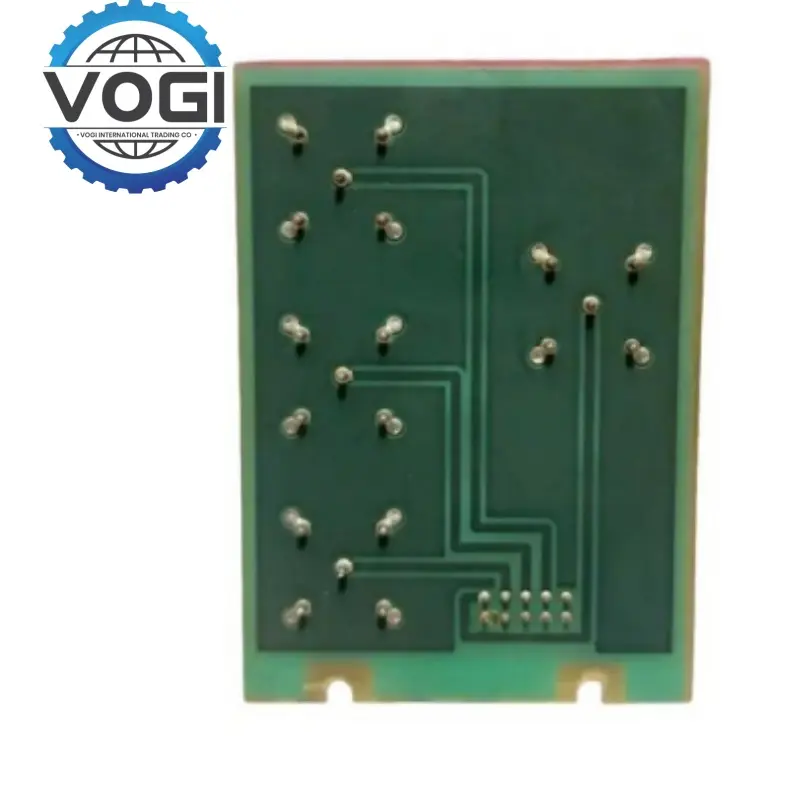

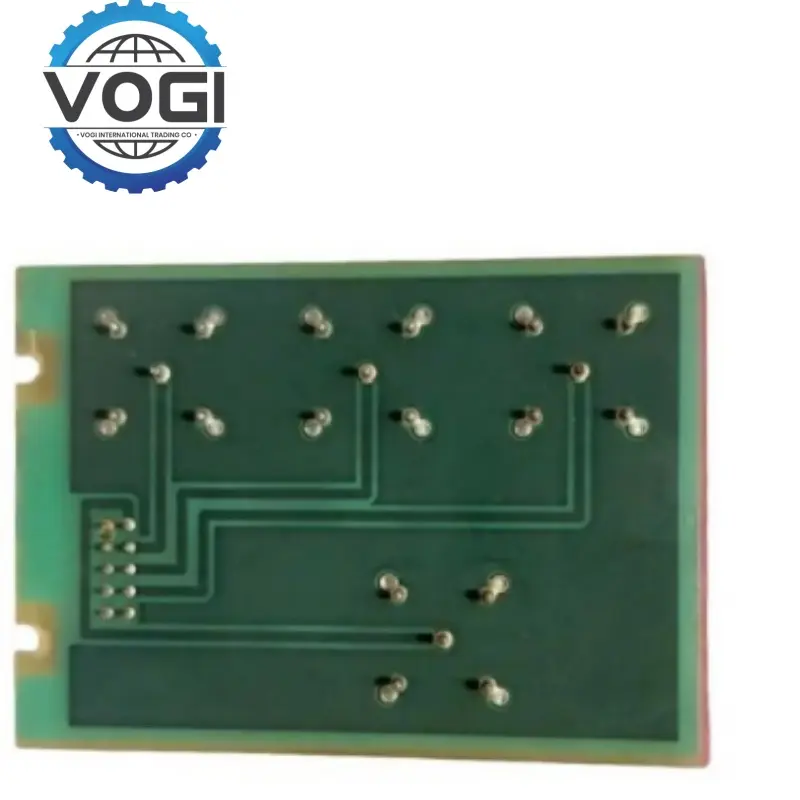

ABB DSTV110 57350001-A Connection Unit For Video

1. Input Voltage: 18-56 VDC (nominal 24 VDC), supports dual power supply redundancy.

2. Communication protocol: Native support for Genius Bus protocol, Modbus RTU can be extended via RS-485.

3. Signal Type: Digital input, typical accuracy ±0.2% full scale.

4. Update Rate: 4 ms per channel, supports software adjustable filter (0-1024 ms) to suppress signal fluctuation.

5. Environmental suitability: - Operating temperature: 0°C to +65°C. Enclosure: IP20 (dustproof).

6. -Protection rating: IP20 (dust and moisture resistant).

7. Certifications and Compliance: CE Marked, UL Recognition supported.

8. Module cascading: Supports Genius Bus network expansion, can cascade multiple modules.

9. Hot-swappable: Supports online module replacement, reducing maintenance downtime.

1. Dual power supply redundancy: 18-56 VDC wide voltage input ensures continuous power supply in industrial environments.

2. Anti-interference capability: software adjustable filter (0-1024 ms) suppresses signal fluctuations, typical accuracy ±0.2% full scale, suitable for complex electromagnetic environments.

3. Self-diagnostic function: ABB DSTV110 detects under-range, over-range and alarm status in real time, and supports open-circuit output configuration.

4. Genius Bus native support: Embedded protocol ensures seamless integration with ABB Advant Master and other DCS systems, realizing distributed I/O data exchange.

5. Modbus RTU Extension: The ABB DSTV110 is compatible with third-party devices through the RS-485 interface, supporting multi-node network architecture (baud rate configurable).

6. Wide temperature operation: ABB DSTV110 operates in temperatures from 0°C to +65°C, allowing it to withstand extreme environments.

7. Compact design: The ABB DSTV110 is compact in size and supports DIN rail mounting to save cabinet space.

8. Safety and Compliance

CE certification: The ABB DSTV110 complies with the EU Low Voltage Directive and EMC standards for direct deployment in the European market.

Protection mechanisms: Input overvoltage protection (≤60 VDC), reverse connection protection to prevent equipment damage.

1. Industrial automation system: It is suitable for distributed I/O expansion of DCS/PLC system and digital input (DI) signal acquisition, covering machinery manufacturing, automobile production line, intelligent warehousing, automated assembly line and other industries.

2. Process control and safety interlock: Used for monitoring the status of safety-critical equipment in the chemical, pharmaceutical, food and beverage industries, and supports high-speed signal response (4 ms update rate) to meet the needs of real-time control, such as threshold alarms for emergency shutdowns and process parameters.

3. Energy management and electric power system: Realize the status monitoring of the backup power supply of UPS system in data centers and the switch status collection of substations in the electric power industry, high-voltage equipment troubleshooting, and the signal access of distributed control nodes of microgrids.

4. Metallurgy and mining automation: used for interlock control signal acquisition of blast furnace processing equipment and adapted to high-temperature and dusty environments (wide temperature 0°C~+65°C, IP20 protection) to ensure stable operation under harsh working conditions.

5. Transportation and logistics: applied to intelligent transportation system tunnel ventilation / lighting equipment status monitoring parking lot gate signal acquisition and logistics warehousing AGV robot path sensor signal access, three-dimensional warehouse shelf limit switch status feedback.

6. Infrastructure and Intelligent Buildings: Centralized monitoring and control of HVAC system valves in intelligent buildings, start/stop signals of fire-fighting equipment, and remote collection of fault signals of filtration equipment in the field of wastewater treatment plant pumping units.
