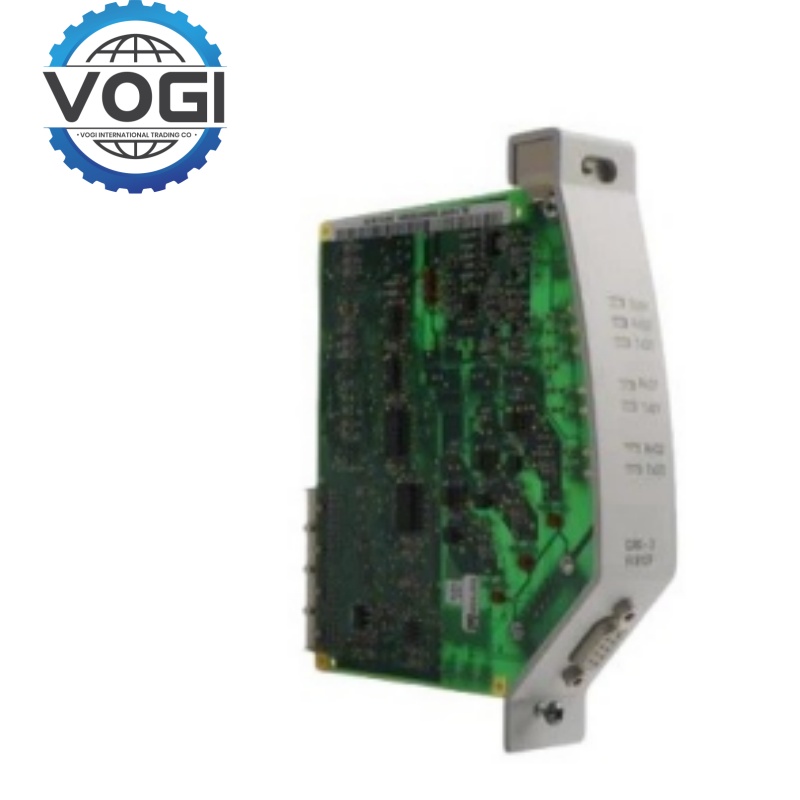

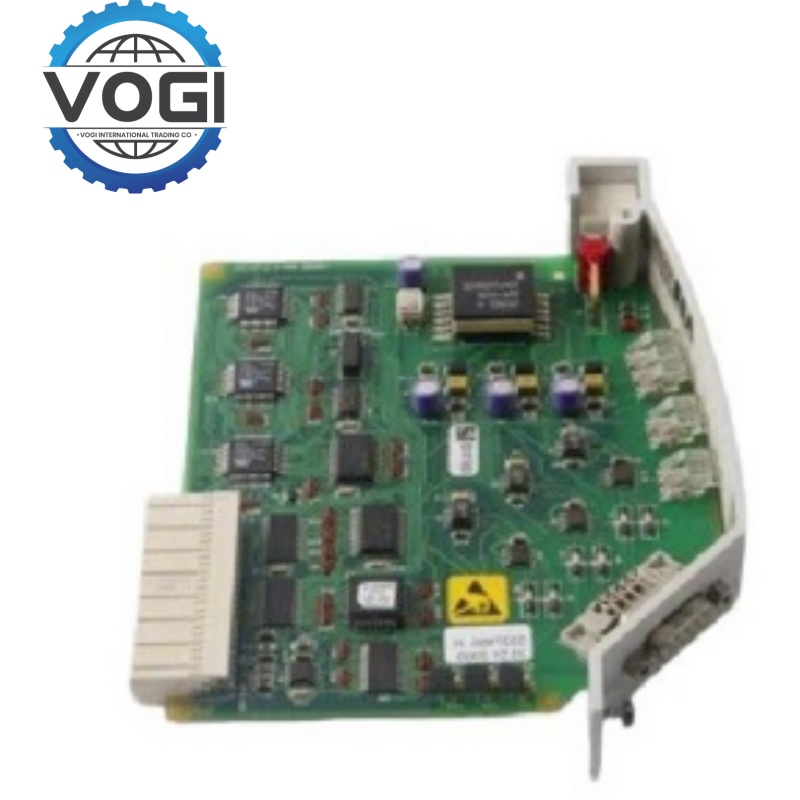

ABB FI810F 3BDH000030R1 Fieldbus Module CAN

CAN 2.0B: The ABB FI810F supports standard frames (11-bit ID) and extended frames (29-bit ID), and is compatible with the CANopen protocol (supports PDO/SDO mapping).

Rate range: ABB FI810F up to 1 Mbit/s, supports 125 kbit/s, 250 kbit/s and other adaptive rates.

Interface type: 3 independent CAN channels (DB9 connector), supports 120Ω terminating resistor jumper setting.

Supply voltage: 24V DC (±10% fluctuation range), typical power consumption 2.5W.

Isolation protection: isolation voltage between power supply and communication interface ≥1500V AC, anti-electromagnetic interference (EMC) in accordance with IEC 61000-4 standard.

Redundancy design: ABB FI810F supports dual power inputs (external module required) and works with AC800F controller to realize hot standby redundancy.

Operating temperature: -25°C ~ +55°C, storage temperature -40°C ~ +85°C.

Vibration / Shock Resistance: ABB FI810F complies with EN 50155 railroad standards for on-board or high vibration scenarios.

Protection: IP20, supports 5% ~ 95% RH (non-condensing)

Mounting: Standard DIN rail or wall-mounted, supports hot-swap maintenance.

Diagnostics and self-recovery: LED indicators show real-time power and link status; automatic network fault switching (redundant configuration required), recovery time ≤ 10ms.

Protocol compatibility: Supports DigiNet P protocol (for ABB Freelance 2000 system), mapping process data objects (PDO) and service data objects (SDO).

Network topology: Supports linear bus structure, node spacing ≤ 40 m, total bus length ≤ 500 m (at 125 kbit/s), up to 5 I/O units connected.

Interface type: 10/100Mbit/s adaptive Ethernet interface with RJ45 connector.

Protocol support: Support TCP/IP, UDP, Modbus TCP and other protocols, easy to communicate with a variety of industrial equipment.

Network topology: supports star, bus and other network topologies, which is convenient to build a flexible industrial network.

Power supply voltage: 24V DC (±10% fluctuation allowed), low power consumption.

Insulation resistance: the insulation resistance between power supply and communication interface is not less than 100MΩ.

Voltage resistance: the power supply and communication interface can withstand 1500V AC for 1 minute.

Operating temperature: -20°C to +60°C, can adapt to the more severe industrial environment temperature.

Storage temperature: -40°C to +85°C.

Humidity range: 5% - 95% relative humidity, non-condensing.

Rail transportation: EN 50155 certified on-board signal control, door linkage and traction power communication.

Industrial automation: AC500/AC800F PLC adapted for robot control and line equipment linkage.

Energy and Power: Grid-connected monitoring of photovoltaic/wind power and real-time data interaction of power systems.

Construction Machinery: CANopen protocol driven hydraulic systems and mobile machinery condition monitoring.
