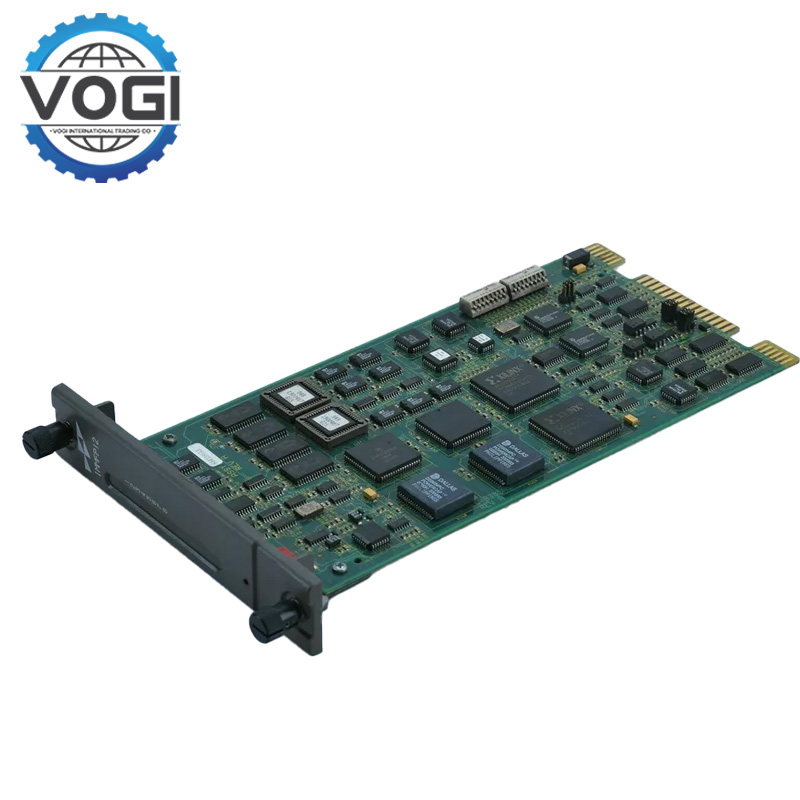

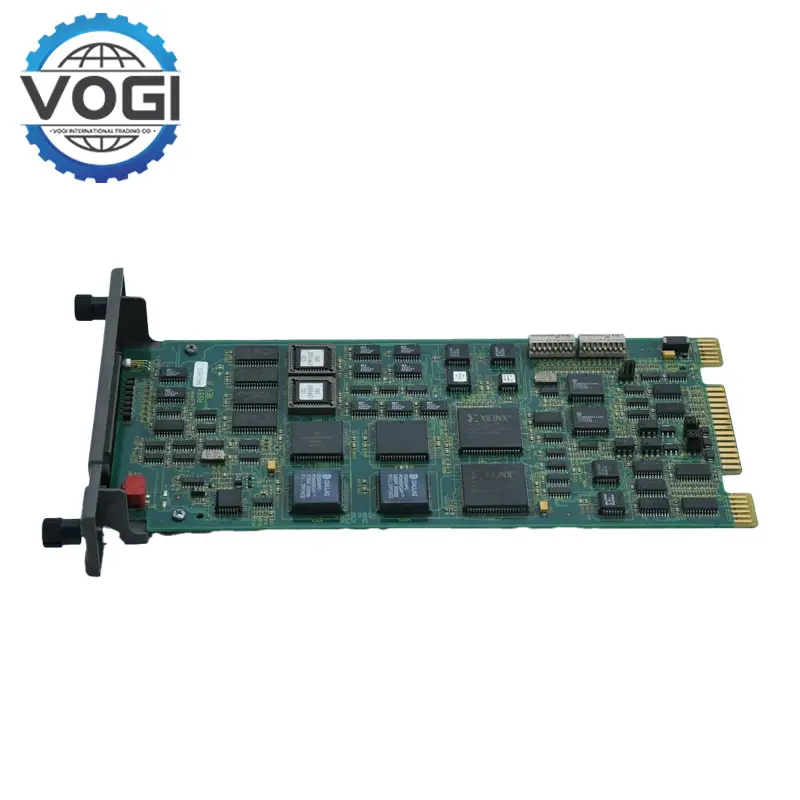

ABB IMMFP12 Multi-Function Processor Module
Key SpecificationsVOGI
Microprocessor: 32 - bit processor (16 - bit external bus) running at 16 MHz.
Memory: 512 kbytes ROM, 512 kbytes RAM, 256 kbytes NVRAM.
Power Requirements: +5 VDC at 2 A maximum, 10 W maximum power dissipation.
Serial Ports: Two RS - 232 - C ports, or one RS - 485 and one RS - 232 - C port, all linking signals at a rate of up to 19.2 kbaud.
Redundant Communication Link: 1 Mbaud serial link.
Programmability: Function codes, C, BASIC, batch 90, ladder, and user - defined functions.
Mounting: Occupies one slot in a standard INFI 90 open module mounting unit.
Environmental Parameters:
Ambient Temperature: 0 °C to 70 °C.
Humidity: 5% to 95% up to 55 °C(non - condensing).
Atmospheric Pressure: Sea level to 3 km (1.86 mi).
Air Quality: Non - corrosive.
Key FeaturesVOGI
Field control function: ABB IMMFP12 can realize precise control of field equipment. Through cooperation with various submodules, it can collect analog and digital signals on site, and process them according to the preset control strategy, and then output the corresponding control signal to control the actuator on site.
Submodule support function: The sub-bus can support various types of submodules, such as ASI23, ASO11, DSI14, DSO14, CIS22, etc., and can connect up to 64 submodules. Each submodule has different signal channels, which can meet the needs of various information connections on site, and can flexibly configure the system to adapt to different application scenarios and control requirements.
Powerful processing capability: ABB IMMFP12 adopts a 32-bit processor with an operating frequency of 16MHz, which can quickly process various control tasks and data to ensure the efficient operation of the system. It provides sufficient space for program storage, data processing and parameter preservation, can store a large amount of control programs and related data, and supports complex control algorithms and functions.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$34 |
|
Southeast Asia |
$15 |
|
South Asia |
$44 |
|
South Africa |
$36 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Industrial automation production line: In industrial automation production lines such as automobile manufacturing and electronic equipment production, ABB IMMFP12 can be used as a core controller to coordinate the operation of various production links.
Metallurgy and heavy manufacturing control: In steel blast furnaces, continuous casting machines and hot rolling production lines, the module's high vibration resistance (withstands 5g shock) and millisecond response ensure precise control under harsh working conditions.
Other fields: ABB IMMFP12 is also widely used in industries such as metallurgy, papermaking, textiles, and pharmaceuticals, as well as air conditioning systems and elevator control systems in smart buildings, providing reliable solutions for automation control in these fields and realizing intelligent management and operation optimization of equipment.
