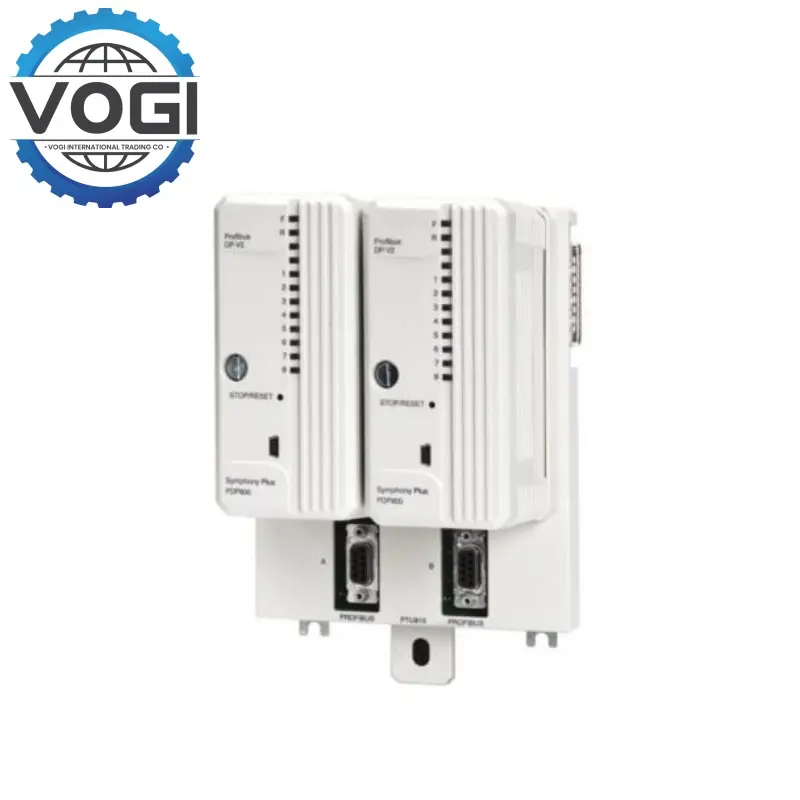

ABB PDP800 Profibus DP V0/V1/V2 Master Module
Key SpecificationsVOGI
Supported Protocol: PROFIBUS DP V0, V1, V2 protocols
Slave supported: 125 slave devices max
Data Transfer Rate: Up to 12Mbps.
Media support: Electrical and fiber optic series PROFIBUS DP links. For fiber optics, links are possible up to 15 kilometers.
Physical parameters
Dimensions: 243.84mm long by 73.66mm high by 170.18mm wide
Approximate Weight: 0.18 kg.
Installation: 3U rack-mount module.
Key FeaturesVOGI
Powerful communication function: ABB PDP800 supports PROFIBUS DP V0, V1 and V2 protocols, with a data transmission rate of up to 12Mbps, and can connect up to 125 slave devices, which can meet various industrial automation and intelligent manufacturing application needs.
Wide media support: ABB PDP800 supports electrical and optical fiber media, and the optical fiber PROFIBUS DP link can be up to 15 kilometers, can adapt to different industrial field environment and wiring requirements.
Well-integrated and compatible: ABB PDP800 is applied to ABB systems with seamless integration to intelligent field devices of ABB and third-party suppliers (such as transmitters, actuators, motor control centers, etc.). It can also connect Symphony Plus controllers to S800 I/O, featuring quite good compatibility and scalability.
Full Redundancy: Module, power supply, PROFIBUS DP links, and controller communication buses (HN800) are all fully redundant; ABB PDP800 offers excellent redundancy capability. You can choose redundancy independently!
Accurate timestamping ABB PDP800 supports 1 ms timestamping of devices using PROFIBUS DP V2, aiding in enhanced process control and event logging.
Full I/O capability: ABB PDP800 integrates Symphony Plus controllers with S800 I/O over PROFIBUS DP V2. For all signal types, from basic analog and digital inputs and outputs to pulse counters and intrinsic safety applications, S800 I/O offers an extensive range of options. It also supports S800 I/O sequence of event functions.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Industry Automobiles: Allow smart devices on the production line to achieve collaborative work, improve production efficiency and product quality
Power system: Connect smart electronic devices to monitor and control the power system, and stabilize the power supply in power plants, substations, etc.
Process Control: Collecting data from field instruments and controllers (eg chemical, petroleum, pharmaceutical and other industries) for accurate monitoring and control of production process parameters to ensure safe and stable production.
