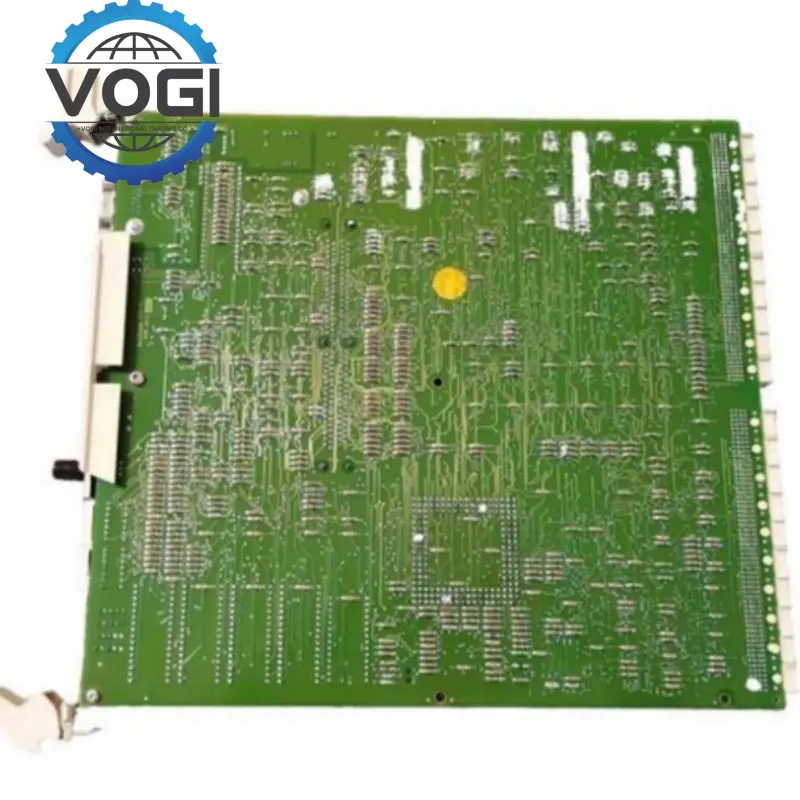

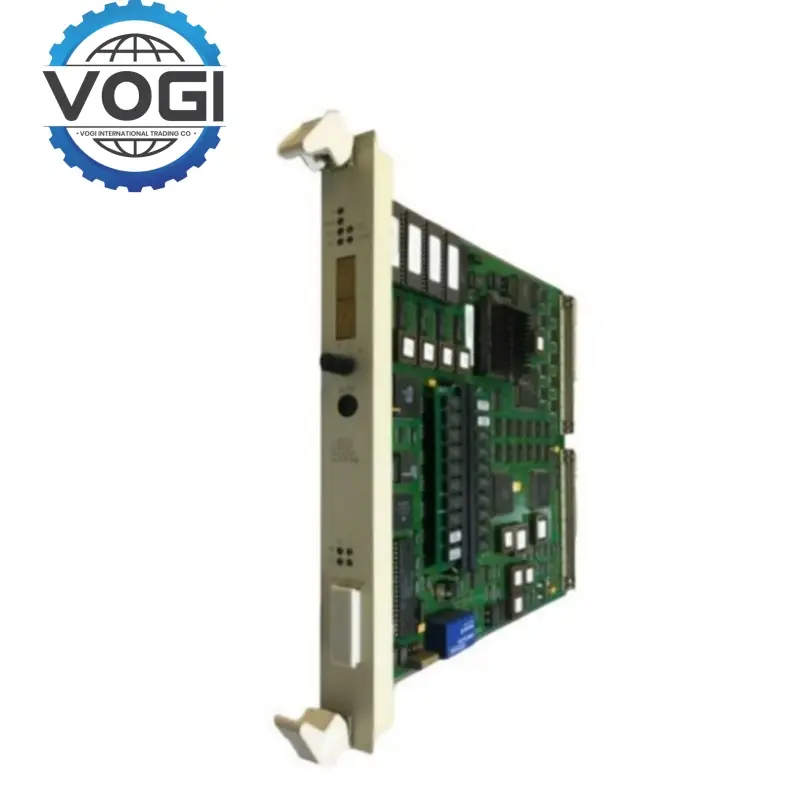

ABB PM510V16 3BSE008358R1 Processor Module
Key SpecificationsVOGI
1. Processor: 32-bit RISC processor clocked at 133 MHz, supporting real-time multitasking.
2. Memory: 16 MB (switchable to 8 MB via memory module) for storing control programs and data.
3. Communication interfaces:
2 Ethernet ports (support TCP/IP protocol) for connecting to host computer or other controllers.
1 RS-232 serial port, configurable for Modbus RTU or other serial protocols.
Supports PROFIBUS DP/PA protocol with transmission rates up to 12 Mbit/s (DP) or 31.25 kbit/s (PA), compatible with industrial field devices.
4. Power supply: Input voltage 220 V AC, power consumption approx. 30 W, supports wide voltage range (100-240 V AC).
5. Protection: IP20, suitable for indoor industrial environments, dust and drip-proof.
6. Temperature range: Operating temperature - 25°C to + 70°C, storage temperature - 40°C to + 85°C for harsh industrial environments.
7. Humidity: 5% to 95% (non-condensing) for high humidity environments.
Key FeaturesVOGI
Redundant processor modules: ABB PM510V16 supports dual controller redundancy configuration, automatic switching in case of failure to ensure continuous operation of the system.
Hardware diagnostics: ABB PM510V16 has built-in self-diagnostic function, which monitors the module status in real time and displays the fault information through LED indicators.
Electrical isolation: communication interface and power supply module adopt isolation design, strong anti-interference ability, suitable for complex electromagnetic environment.
Multi-protocol support: In addition to PROFIBUS, Modbus, OPC UA and other protocols can also be supported through the expansion module, realizing cross-brand equipment integration.
High-speed data transmission: Ethernet port supports 10/100 Mbps adaptive, meeting the demand for real-time data acquisition and control.
Expandable memory: ABB PM510V16 can easily expand the storage capacity to 16 MB by replacing the SIMM memory module.
Compatible with ABB systems: Seamless integration into ABB Advant Master, AC 450/460 and other control systems, with support for software configuration tools.
Fast response: 133 MHz processor handles complex control algorithms with response times down to milliseconds for high-speed production processes.
Multi-tasking: The ABB PM510V16 supports parallel execution of control logic, data acquisition and communication tasks to improve system efficiency.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
1. Chemical & Pharmaceutical: for reactor temperature control, distillation tower pressure regulation, batch production process monitoring.
Oil and gas: in oil and gas extraction platforms or refineries, to realize pump group control, valve regulation and safety interlock.
2. Power industry: power plant auxiliary systems and smart grid equipment monitoring.
3. Automotive manufacturing: welding robot coordination, assembly line material handling control.
4. Electronics manufacturing: motion control and process parameter monitoring for semiconductor wafer processing equipment.
5. Water Treatment: Aeration system optimization and pump cluster control for wastewater treatment plants.
6. Building Automation: HVAC system integration, energy management and lighting control.
7. Energy Management
Renewable energy: inverter monitoring, power generation optimization for wind or photovoltaic power plants.
Industrial energy saving: equipment energy consumption monitoring and optimization through real-time data analysis.
