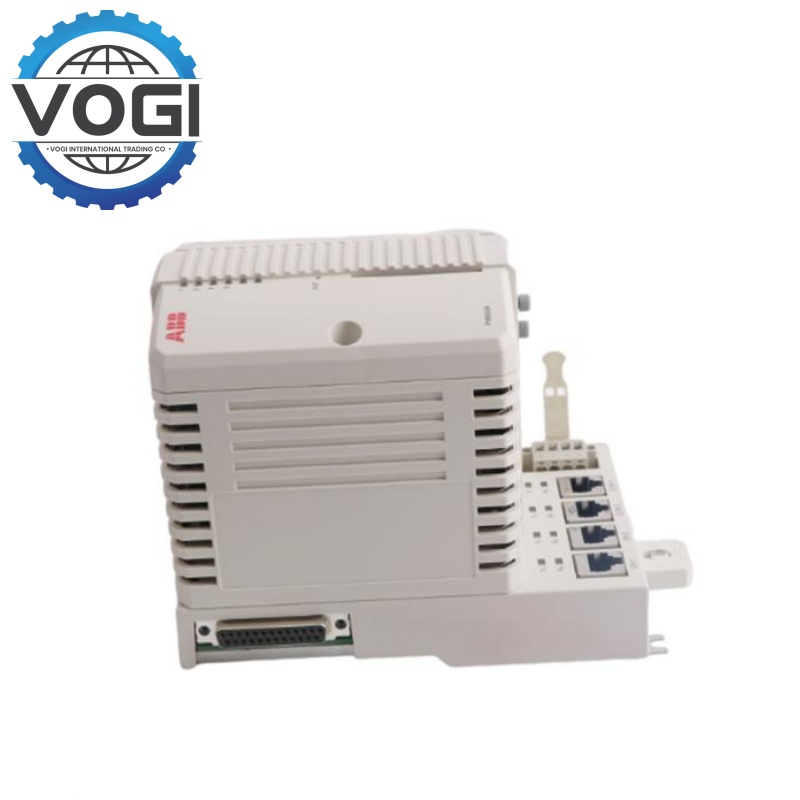

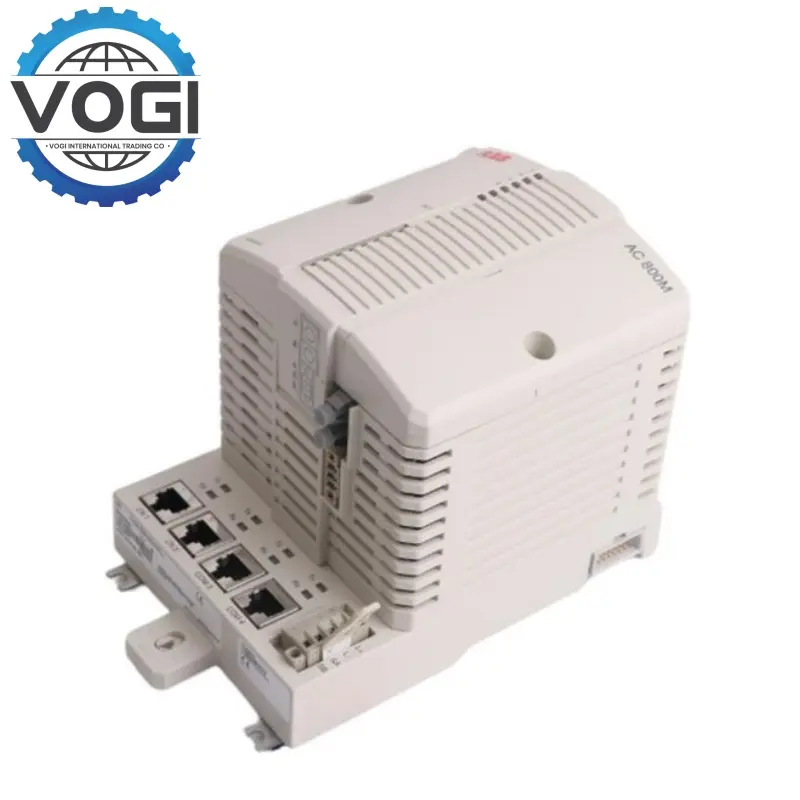

ABB PM856AK01 3BSE066490R1 Processor Unit
Key SpecificationsVOGI
Processor type: MPC860
Clock frequency: 24MHz
Memory: total 16MB (800xA 5.1 FP4)
Power: 24V DC (19.2 - 30V DC)
Power consumption 4.32W (max 7.2W)
10 Variable Boolean Operations 0.46ms
Max I/O capacity: 96 modules
Scan rate: 0 - 100ms
Electrical modules: 24V max 1.0A, 5V max 1.5A
Operating temperature: +5 to +55 °C (+41 to +131 °F)
Operating temperature: -40 to +85°C (-40 to +185°F)
The rate at which the temperature is changed: 3°C/minute
Humidity: 5 – 95% RH, non-condensing
Key FeaturesVOGI
Convenient hardware integration and installation: The CPU board integrated multiple components. 01) ABB PM856AK01Sliding locks are used to install and remove the ABB PM856AK01 from the DIN rail. The base plate is given its own ethernet address to clarify the network management.
Sturdy and low-maintenance: The fault diagnosis is straightforward. Redundant power status input and lithium battery backup for device data, operating status.
Flexible and scalable: Modular design allows for incremental scaling. With multiple applications configuration and flexible cycle time to satisfy different control needs, the ABB PM856AK01 is future ready.
Such as excellent communication capability: multiple ports and protocols, good compatibility and great access to industrial networks.
Covers industry environmental and safety standards: Good environment adaptability -- IP20 protection, suitable for a variety of industrial environment, and meets a number of environment and safety standards.
ABB PM856AK01 Software Configuration: The ABB PM856AK01 is software configured via 800xA control builder.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$17 |
|
South Asia |
$65 |
|
South Africa |
$55 |
|
Europe and USA |
$31 |
|
Russia |
$62 |
APPLICATIONVOGI
Industrial automation production line: as in the automobile and electronic production, etc. Components in industrial automation production line are typically used to connect the sensor and actuator and quickly collect data, and also accurately control the equipment to maintain efficient production and stabilize product quality.
Power monitoring and management system: The ABB PM856AK01 in power plant, substation and other sites for the monitoring of power parameters, data recording and timely alarming, ensuring the stable operation of the power system.
Smart placement control system: through connecting the lighting, air conditioning, access control and other equipment, realize centralized control, intelligent management, improve comfort level and energy efficiency.
It should not be: Sewage treatment and environment monitoring COLLECTS for the ABB PM856AK01 as sewage treatment plant, and monitoring sensors in conjunction with processing equipment, process adjustment is based on data, efficent must meet the standard.
