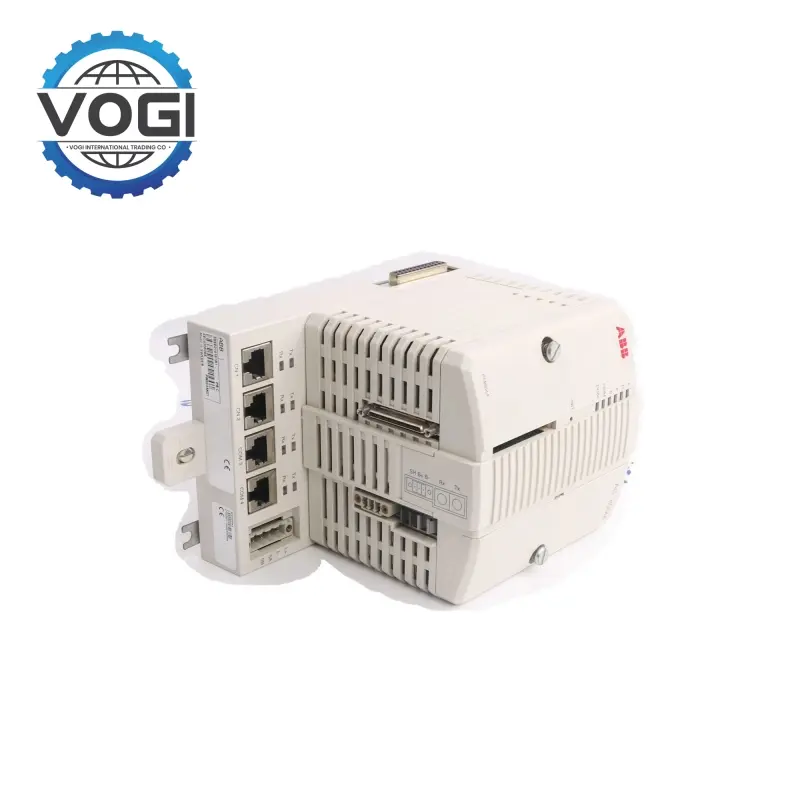

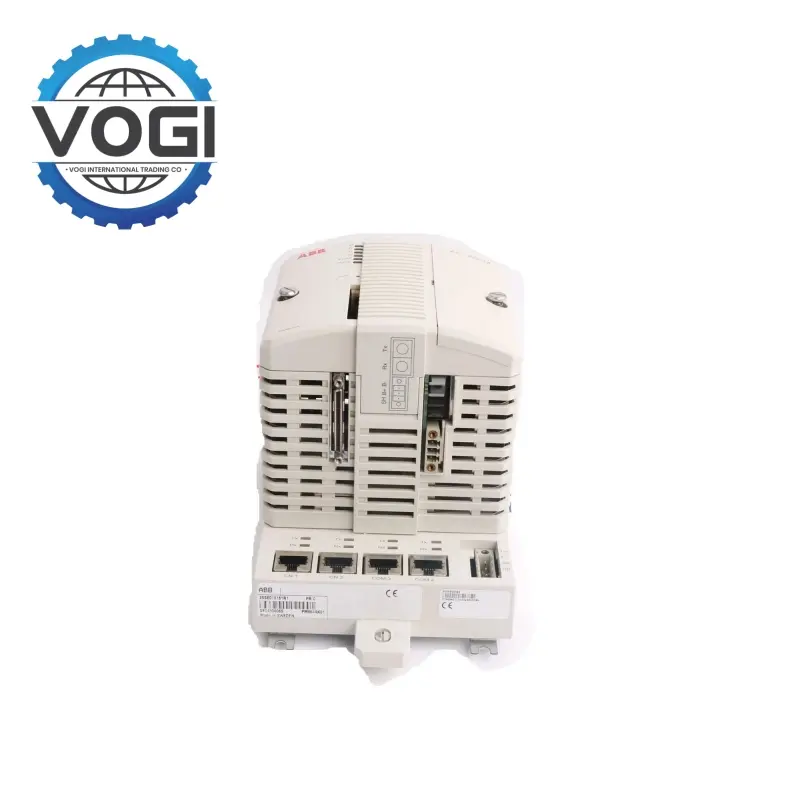

ABB PM864AK01 3BSE018161R1 Processor Unit

Processor: 1.5GHz dual-core CPU

Memory: 4MB user memory, 2MB program memory.

Communication interface: 2 Ethernet ports, 1 serial port, 1 USB port.

Number of I/O points: Up to 2048 I/O points.

Processing speed: 0.2μs per Boolean operation.

Program capacity: 2MB.

Data memory capacity: 4MB.

Power supply: 24V DC.

Operating temperature: -25℃ to 70℃.

Multi-core processor: can perform complex logic operations, motion control and data processing and other cyclic tasks,​ high-speed scanning cycle, scanning time as low as milliseconds, suitable for high-speed production lines or real-time control,​ large-capacity memory, support large-scale program and data storage, and adapt to complex automation system requirements.

Redundant communication: ABB PM864AK01 support PROFINET redundancy such as HSR/PRP to enhance network reliability.

Profiles slot architecture: support multi-module expansion to adapt to flexible system configuration.

Hot-swap function: some modules are convenient for online module replacement, greatly reducing downtime.

Backplane bus integration: high-speed data transmission between modules is completed through the backplane bus, and external wiring is less.

Safety function integration: ABB PM864AK01  support functional safety integration, in accordance with IEC 61508/62061, configurable safety input/output Anti-interference: EMC certified, anti-electromagnetic interference, anti-pressure fluctuations.

Programming tools: Compatible with ABB's Control Builder Plus and MATLAB/Simulink or third-party tools for easy programming and simulation.

Graphical interface: ABB PM864AK01 Provides intuitive debugging and status monitoring functions to accelerate troubleshooting.

Remote access: Convenient remote monitoring and maintenance through VPN or industrial cloud platform.

For complex motion control: high-precision equipment that needs to achieve multi-axis synchronous control, such as printing machinery, injection molding machines, machine tools, etc.;

Distributed I/O system: ABB PM864AK01 used for equipment systems embedded in factory automation production lines, connected with sensors, actuators and remote devices.

Smart buildings, energy management: control HVAC and lighting systems, support energy optimization and real-time monitoring.
