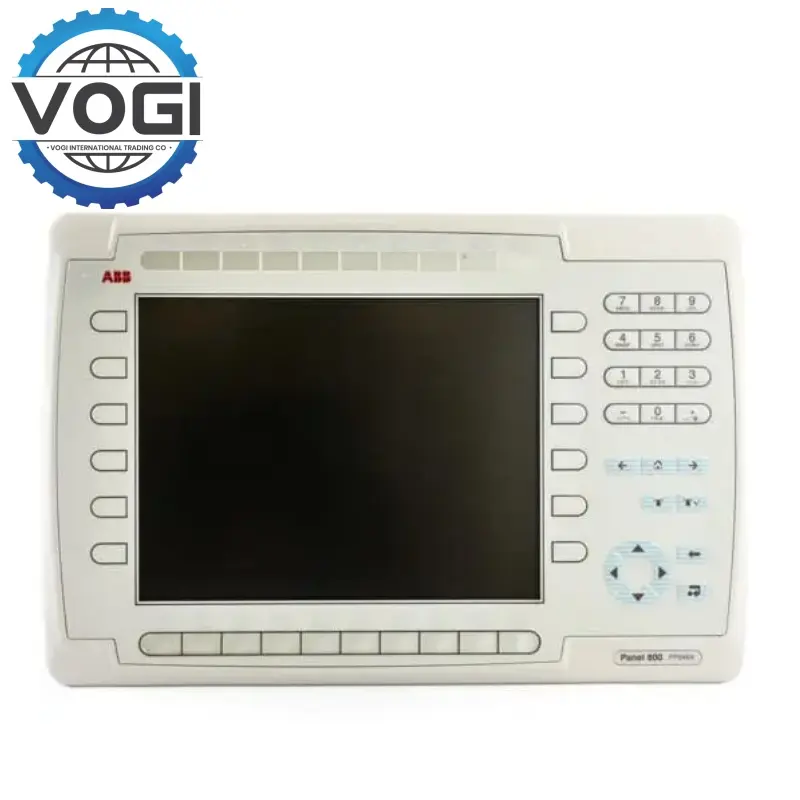

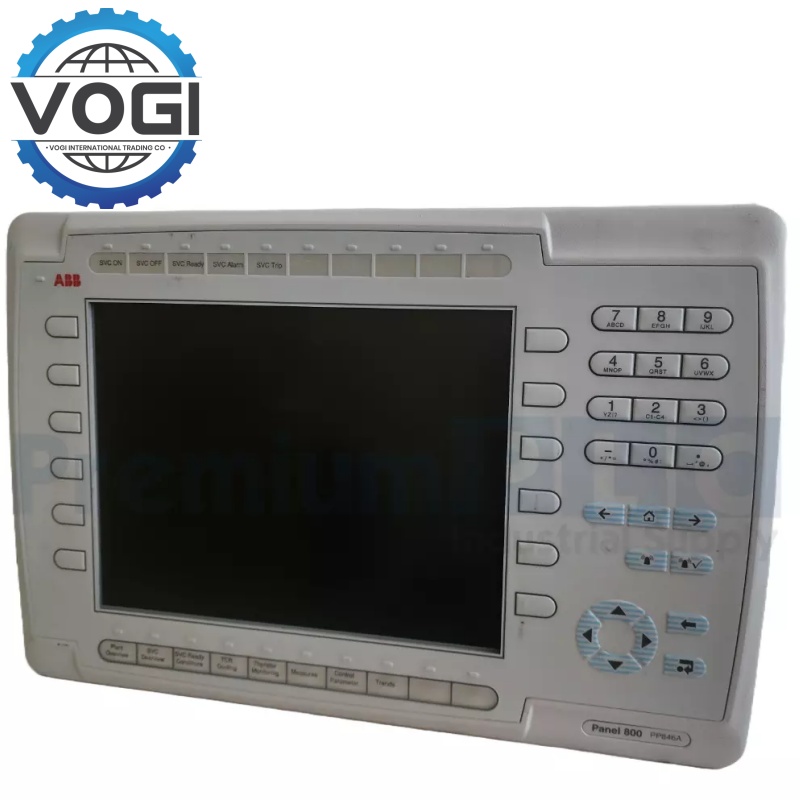

ABB PP846A 3BSE042238R2 Operator Panel

10.1-inch version: displays at 1024 x 600 resolution.

15-inch Model: 800×600-pixel resolution.

Brightness and contrast: 350 cd/m² (typical value)

Touch Screen type: resistive, supports single-point touch

Hardware configuration

TR2100M 1G Multi-task Arm9 Processor.

RAM: 1 GB system RAM + 2 GB SSD storage (for some models).

Communication interface : 2× Ethernet (10/100 Mbps, shielded RJ45), 2×USB 2.0 (500 mA), 1×RS232, 1×RS422/485, 1×RS485 (optional).

Expansion interface: supports MicroSD card expansion (some versions)

The input voltage is 24V DC with fluctuation range of ±10%.

Power consumption: 15W typical, 25W peak

Operating temp - 10 Degree C - + 60 Degree C (non-condensing), storage temp - 20 Degree C - + 70 Degree C.

Humidity: 5%~85% RH (non-condensing)

Front IP65/NEMA 4X, rear IP20, dustproof and waterproof design

Robust Protection: Use die-cast powder-coated aluminum House/Front protection level up to IP65/IP66, dust and water, high pressure water splash and harsh industrial Environment (e.g. Power plant, chemical workshop)

Temperature adaptability: The device operates on a temperature range of -30°C to +70°C, supporting steady state in extremely high or low-temperature environment, suitable for special scenarios like outdoor or cold storage.

Portable: The net weight is only 1.1-1.4kg, and the thickness is about 50mm. It is a space-saving and easy-to-install product for embedded and wall mounting.

Card 1: 10.1-inch version 1024×600 pixels (TFT/LED display), supporting resistive touch screen and can still be accurately operated when wearing gloves or in humid environments.

15 inches: 800×600 pixels (TFT screen), it is applicable to monitoring cases with large-area data display.

Graphical interface﹕The vector graphics engine is used to realize business dynamic chart, alarm pop-up and multi-language display and the operation interface is simple and easy to understand.

3. Flexible communication and compatibility

Support for multiple protocols: With built-in Modbus RTU/TCP, Profibus DP, EtherNet/IP and other industrial protocols, it can be directly connected to mainstream brand controllers such as ABB, Siemens, Schneider, etc.

It has an open architecture, is based on NET framework, and supports smooth connection with secondary/third-party systems (ex. MES, SCADA, etc.) in line with the high-deeper needs of complex networks of industry.

Rich interface, with dual Ethernet, USB, RS232/485 and other interfaces, support data transmission, peripheral expansion and redundant network configuration.

Compliance: Management at different levels: operator/engineer/administrator -(multi-level password protection) prevents impact on unauthorized access consistent with FDA 21 CFR Part 11 electronic signature requirements

Data recording and analysis: with built-in historical data storage function can record event logs, trend curves, fault tracing and process optimization is easy.

Failover design: certain versions can be equipped with dual Ethernet ports, so that systems can continue to run even in the event of a network outage.

Modularity: Display screens, interface modules, or storage devices can be quickly exchanged to cut servicing expenses.

Offline configuration: Communication programming and simulation with ABB Panel Builder 800 software, drag-and-drop interface design support, engineering efficiency increased by more than 50%

Firmware upgrade: Support for online firmware upgrades, continuous optimization of functions and compatibility, and product life cycle extension.

Power plant DCS system and Substation human-computer interaction.

Process control: visualization of process parameters in chemical and pharmaceutical industries

Logistics and warehousing: automated guided vehicle scheduling, inventory management interface.

Certification and compliance: CE, UL, ATEX (optional explosion-proof certification, as required) certification compliance to meet the requirements of global market access.
