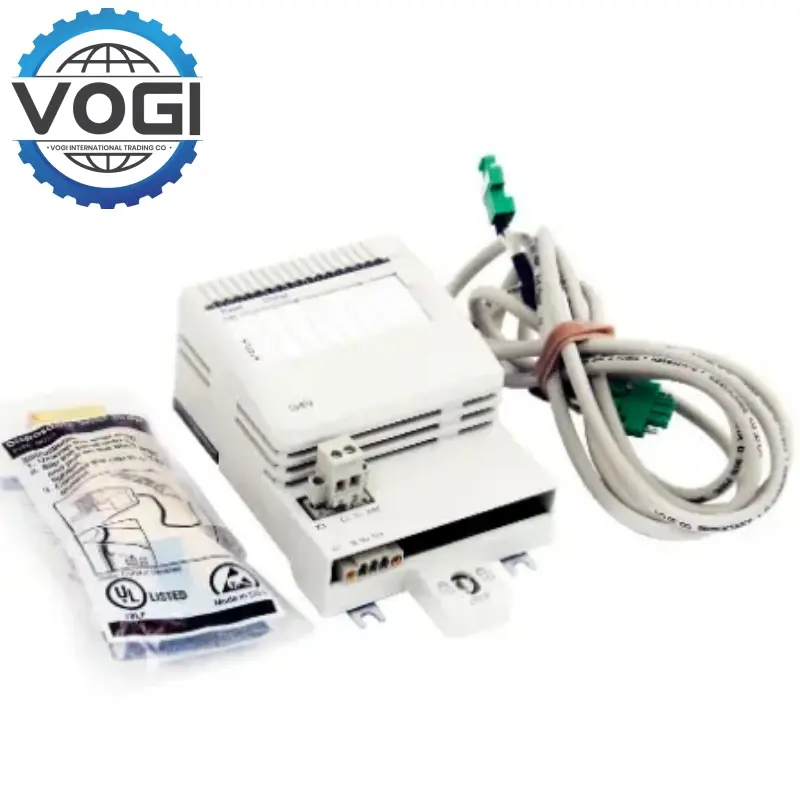

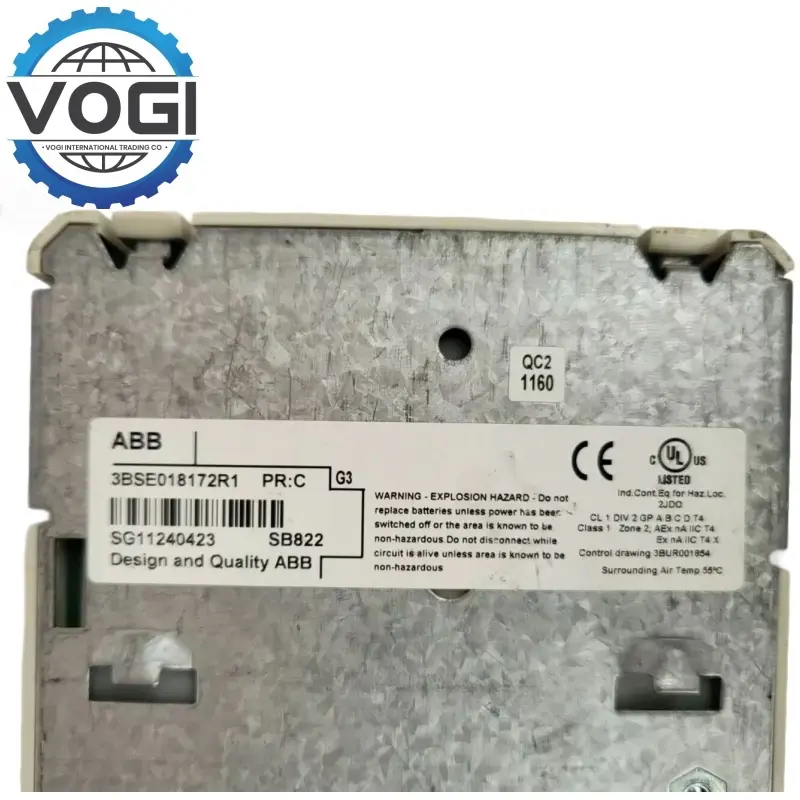

ABB SB822 3BSE018172R1 Rechargeable Battery Unit

Can be charged only (*Input voltage:24V DC)

Input current maximum: 0.1A (during charging)

The power produced is 3.6V DC (it will have a constant output).

Max OUTPUT current: 0.05A(Constant load).

Battery type — Lithium-ion (1 cell)

Equivalent to 0.8g of lithium metal (complies with transportation safety standards).

Mounting: DIN rail mount (allows compact deployment).

Operating temperature: -20°C- +60°C(widely temperature adaption to industrial environment).

Protection: IP20 (dustproof, finger-touch proof);

Real-time status monitoring: communicates with AC 800M controller via the supporting cable (e.g. TK821V020), feedback battery health, remaining power and charging status in real time.

Automatic Charge Control : Has float charging mode which helps avoid over-charging /under-charging and prolonging battery life ( Li-ion batteries have a life span of 3-5 years).

Predicted failure: It will send an alarm based on the threshold of the battery capacity or abnormal ones through the controller. So that the preventive maintenance can be supported.

Two rails logic control to combine error detection processing with main controller
2. ABB SB822 High reliability design.

Redundant power supply configuration: It can be used with ABB power voting units (such as SS822) "N+1" redundancy power supply, the main power supply failure can be seamless switching.

Redundant protection strategy: Built-in over-voltage overload and short-circuit protection to prevent battery damage or system damage.

Here are some quick-PRO information about their products: Industrial-grade protection : IP20 dustproof design and corrosion-resistant (ISA-S71. 04 G2 certification), chemical resistance, corrosion resistance, and other performance in line with harsh environments such as petrochemical, metallurgy, etc.

DIN rail mounting: Only 85.8 × 58.5 × 136 mm in dimension, 550 g weight, saves space in control cabinet, supports high-density deployment.

Modular expandability: Can be combined with other ABB modules (SD834 power distribution module, etc.) to meet the power requirements of complex systems.

Extreme Temperature Usage: Wide operating temperature range of -20°C to +60°C enabling usage in extreme outdoor or high-temperature industrial environments.

Low power consumption, the standby power consumption of less than 0.1W, using Li-ion battery (3.6V/0.05A is output), can make the controller for hours.

Support for protocols: direct integration into AC 800M controllers and third-party systems via an RS485 interface or optional PROFIBUS DP/Ethernet interface

Support cross-platform: Can be compatible with ABB 800xA control systems. Can be completely used to replacement for older battery units (e.g. SB808F),  greatly saving time and economic investment of upgrading.

Industrial automation: backup power supply for DCS in chemical, petrochemical and metallurgical industries.

Energy management: PV power station and smart grid controller backup power supply.

Transportation and logistics: rapid deployment data storage for rail transport signalling systems.
