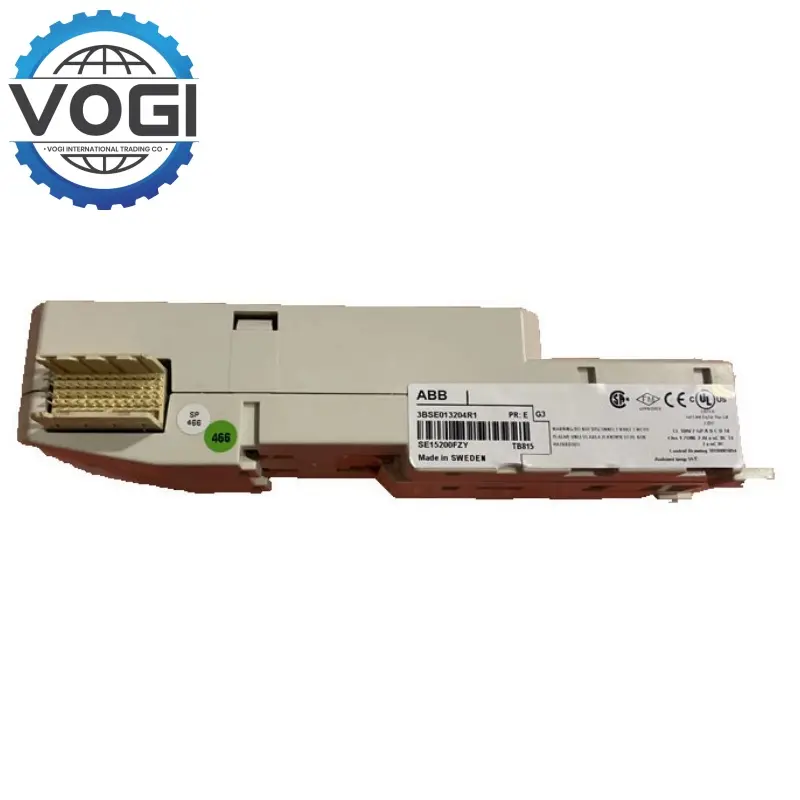

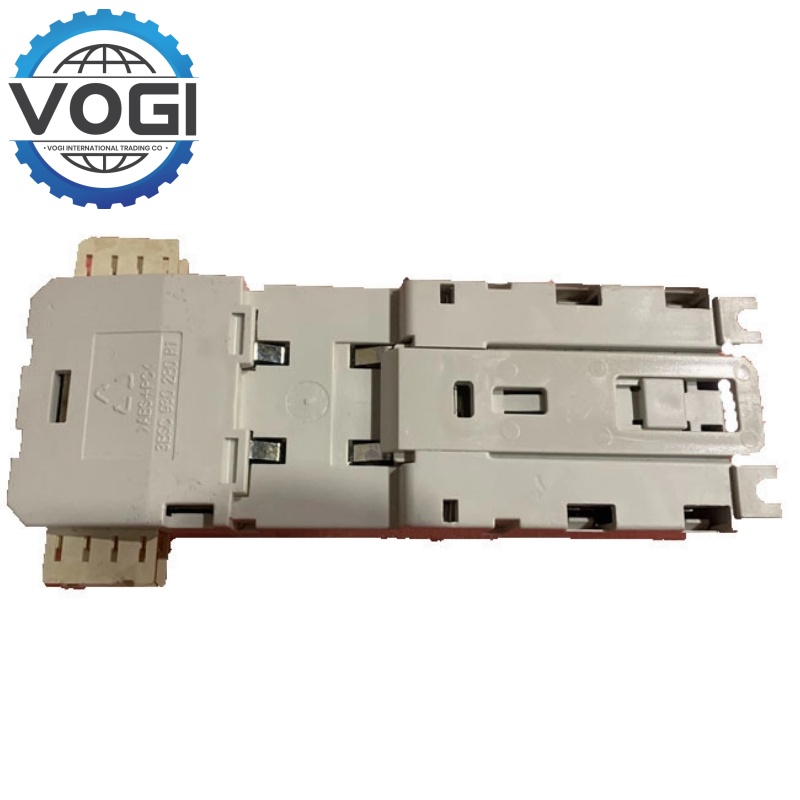

ABB TB815 3BSE013204R1 Interconnection Unit

Compatible Product: ABB Advant Controller 110 Series

Channels: 16 digital input/output channels

Terminal type: screw terminal

Supported signal types: digital signal

Mounting: DIN rail or panel_ mounting

Working temperature: 0°C to + 55°C

Temperature for storing: –25 °C to + 70 °C

Humidity range: 5% to 95% relative humidity, non-condensing

Nominal voltage: 24V DC

Rated current per channel: 2A

Isolation: 500V DC (inter-channel, channel to ground)

Compliance: CE, RoHS

Performance: The ABB TB815 has powerful communication capabilities. It supports multiple communication protocols including RS-232, RS-485 and Ethernet, and has high-speed data transmission capabilities (10/100Mbps connection speed) with a transmission rate of up to 1Mbp. It can ensure that control signals are transmitted without delay, ensuring that automation processes run smoothly.

Functionality: Interconnection unit with ABB Advant Controller 110 series16 digital input/output channels for connecting digital signaling devices

Reliability: made of robust industrial-use plastic + ABB TB815 shell + performance temperature range: - 20 ° to + 70 ° C, can be used in harsh industrial environmental conditions + meet CE + RoHS and other certification standards, reliable quality and environmental performance.

Generally use: ABB TB815 low power, less than 2W, energy-saving effect is significant; size 145mm × 75mm × 40mm, small size, convenient the existing control panel for installation, but also do not occupy too much space.

industrial automation: Connect PLC, sensor, actuator and other devices on the production line to the control system, which can ensure the efficient and stable production.

Process control: The ABB TB815 is used in chemical, electric power and other industries, connecting control equipment and instruments and accurately monitoring and controlling production parameters to ensure process safety and reliability.

Energy management: ABB TB815 Configuration of energy monitoring and metering equipment to the management system, real-time energy consumption monitoring and analysis, help enterprises to optimize energy saving.

Smart Buildings: ABB TB815 can connect lighting, air conditioning, security and other sub-systems to achieve interconnection and centralized control to create a comfortable, safe and energy-saving environment.
