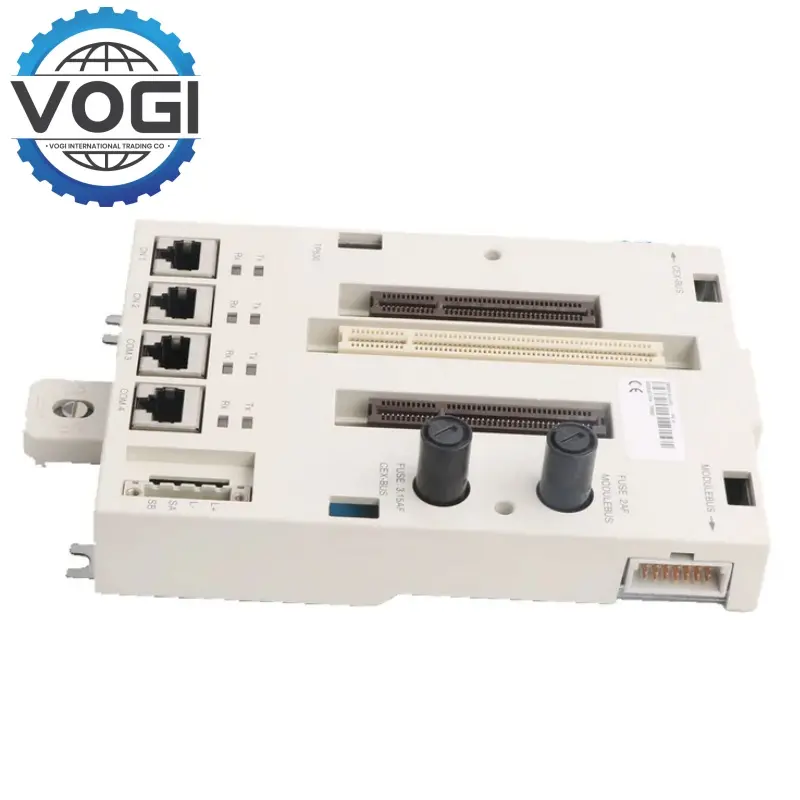

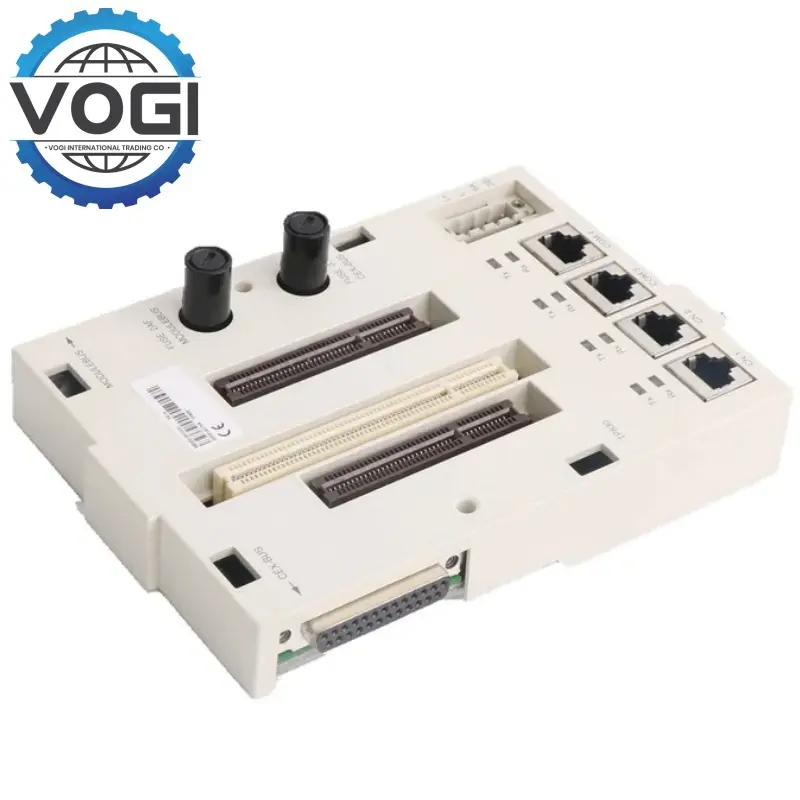

ABB TPSG4AI 1KHL015623R0001 Analog Input Module
Key SpecificationsVOGI
Sensors: Thermocouple (K/J/T type), RTD (Pt100)
Output: Relay, solid-state relay, analog (4-20mA).
Control function: PID adjustment, alarm setting, communication interface (Modbus/ASCII, etc.)
Electricity: 24V DC or 230V AC
Environment: Temp -10°C to +60°C, protection IS IP65
Key FeaturesVOGI
1.Core functions
Input Items: Analog signal input (for example: 4-20mA, thermocouple, RTD), digital signal input
Control logic: built-in PID automatic adjustment; able to achieve complex logic control (e.g., step control, ramp control).
Communication functions: Built-in Modbus RTU/ TCP, Ethernet /IP or ASCII Protocol, support remote monitoring.
2. Hardware design
Small Size: Ideal for industrial environment with space limitation (like Control Cabinet mount)
Protection level: IP65/IP67 dustproof and waterproof; suitable for harsh industrial environments.
Power Supply Compatibility : Wide voltage input (for example, 100-240V AC/24V DC).
3. Software functions
A large number of analog / discrete input points per channel type, without the need for additional reconstruction; it allows for flexible configuration of parameters and supporting software such as ABB Control Builder can customize control logic.
Alarm management: multi-level of the alarm setting (such as hysteresis alarm, deviation alarm).
Data Storage: historical data storage and export (such as SD card or communication interface).
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
APPLICATIONVOGI
1. Automation in Manufacturing & Industries
Injection Molding Machine/Extruder Temperature Control
Monitor heat exchanges between mold and water, auxiliary heating or cooling control, high-precision multi-stage PID-tuning and stable plastic injection molding quality.
Compatible with K/J type thermocouples or RTD sensors for real-time temperature tracking.
Packaging Machinery
Speed of conveyor belt (control of inverter through analog output) and timing of action of cylinder (digital signal input)
PLC (Modbus etc.) supported communication to realize production line linkage.
2. Energy and Power
Generator Monitoring
Make a display of cooling water temperature and lubricating oil pressure, alarm or make shutdown protection.
Upload data from Modbus TCP to SCADA system.
Control of Photovoltaic Inverters
Optimize power generation efficiency by fine-tuning MPPT (maximum power point tracking) parameters.
Ambient temperature compensation algorithm support.
3. Building Automation and HVAC
Air Conditioning System
4-20mA output control variable frequency pump, realize the indoor and outdoor temperature difference control of chilled water flow.
Time-sharing programming (like night energy-saving model).
Elevator control system
Overheated motor temperature detection and warning.
Connect with floor call panel(RS485 communication)
4. Chemical and water treatment
Reactor temperature control
Program the multi-phase heating curve (heating → constant temperature → cooling)
Safety interlock (automatic start of emergency cooling)
pH/ORP rises sewage treatment
To use analog input to monitor water quality parameters and control the dosing pump dosage۔
Support Modbus ASCII protocol communication with host computer.
5. History and background: transportation and rail transit
Control of rail vehicle air conditioning
Flexibly adjust the air supply volume according to the dynamic changes of passenger flow (simulated output).
Fault auto-diagnosis (ex: sensor malfunction warning)
Tunnel ventilation system
PID closed-loop control of fan speed according to CO concentration/wind speed.
Communicate with the central control system (Support Modbus TCP)
