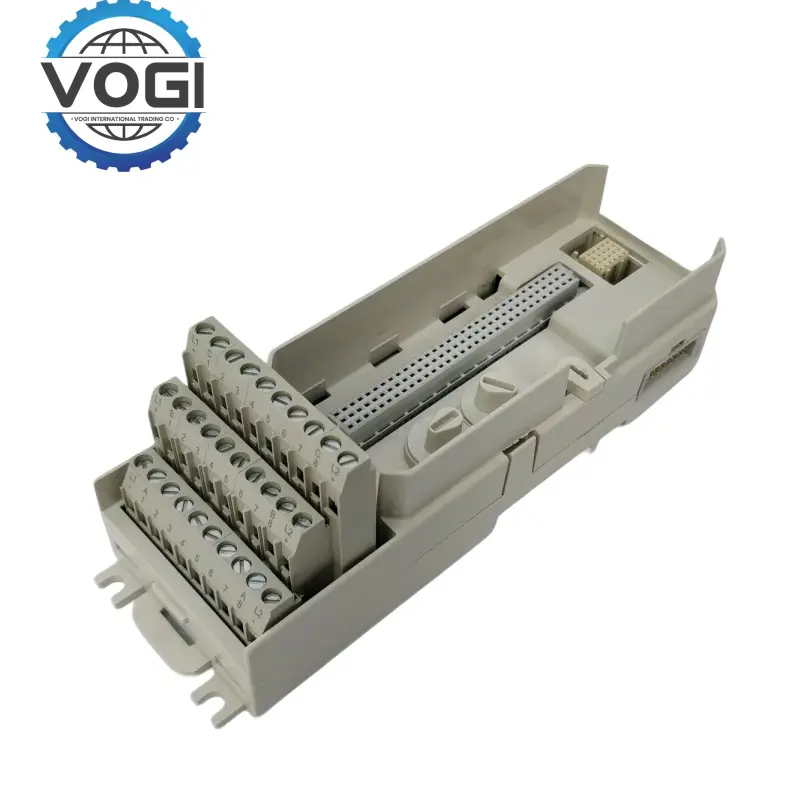

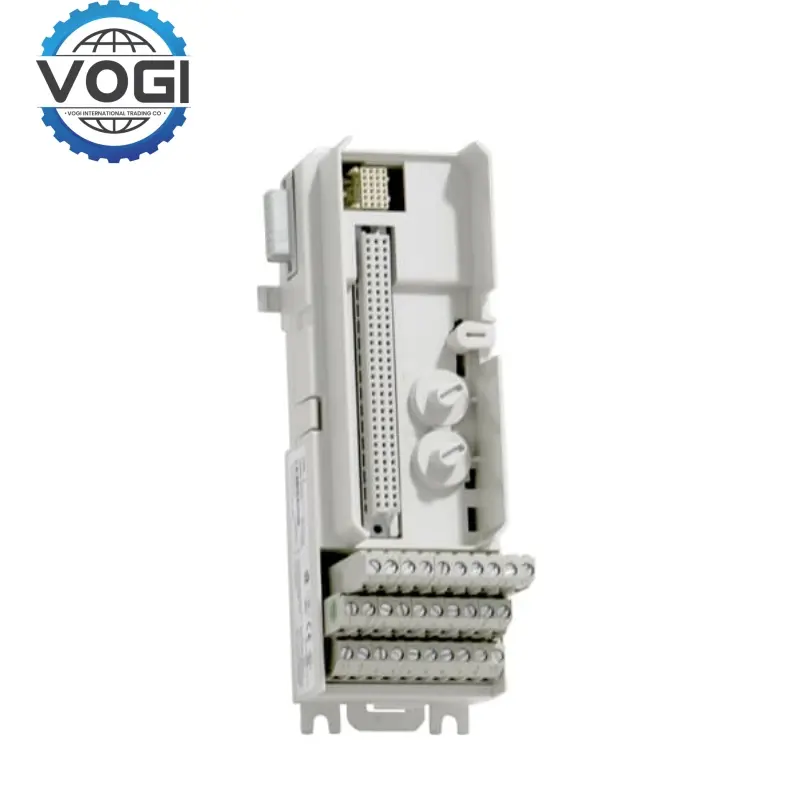

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit

Power input: DC (9 - 36) V wide power input, with dual power redundancy and isolation protection functions

Working voltage: 50V

Communication interface: Supports logically independent dual Profibus DP buses, supports the predetermined communication rate in the standard specification, and can manually set all standard rates or rate adaptation through the DIP switch; provides 1-2 Profibus DP electrical ports and 1-2 155M optical fiber interfaces, supports redundant dual-network optical fiber ring network topology, optical fiber transmission distance can reach more than 20km, and the transmission rate is 155Mb/s

I/O channel: 16 field signal channels.

Electrical Isolation: Electrical isolation is provided to prevent interference propagation

Signal Conversion: Signal conversion can be performed to adapt to system requirements

Mechanical Configuration: Two mechanical keys are used to configure different types of I/O modules, each key has six positions, a total of 36 different configurations, but this is a mechanical configuration and does not affect the function of the MTU or I/O module

Maximum Current: 2A per I/O channel, 5A for process connection

Acceptable Wire Size: Solid 0.2 - 4mm²; Stranded 0.2 - 2.5mm² (24 - 12awg)

Dielectric Test Voltage: 500V a.c.

Operating Temperature: + 5°C to +55°C (maximum ambient temperature can reach 55°C when installed horizontally, and maximum ambient temperature is 40°C when installed vertically

Storage Temperature: -40°C to +70°C

Humidity Range: 5% - 95% RH

Pollution Level: Degree 2, IEC 60664 - 1​

Corrosion protection: ISA - S 71.04 : G3​

Protection level: IP20​

Mounting method: 35mm DIN rail mounting, bidirectional mounting, with locking device for grounding

High reliability communication:ABB TU810V1 supports dual Profibus DP buses, and has flexible rate setting methods, combining electrical ports with optical fiber interfaces.

Flexible I/O configuration: 16 field signal channels, with configurable mechanical keys, can adapt to a variety of different types of I/O modules, and flexibly adjust the input and output configuration of the system.

Excellent electrical performance: ABB TU810V1 With electrical isolation and signal conversion functions, it can effectively prevent the influence of external interference on the system and improve the compatibility and stability of the system. ​

Industrial automation production line:ABB TU810V1 used in automobile manufacturing, electronic equipment production and other automated production lines to ensure efficient and stable operation of the production line. ​

Chemical industry: transmit the collected data to the control system, and receive control instructions to drive related execution equipment to improve product quality and production safety. ​

Power system:ABB TU810V1 used for status monitoring and control of power equipment, provide data support for the stable operation of the power system, and timely detect and handle equipment abnormalities. ​

Energy industry: in the fields of oil and natural gas extraction and processing, connect sensors and actuators of field equipment to realize automated control of extraction, transportation, processing and other links, improve energy production efficiency, and reduce labor costs. ​

Smart factory:ABB TU810V1 work with other automation equipment and controllers to achieve comprehensive automation and intelligent management of factory production processes.
