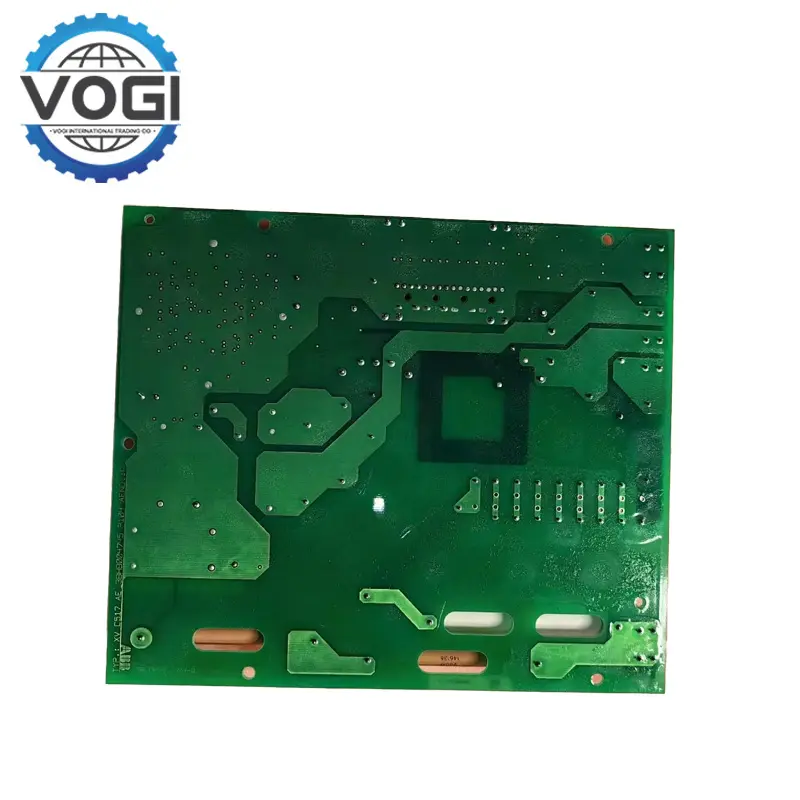

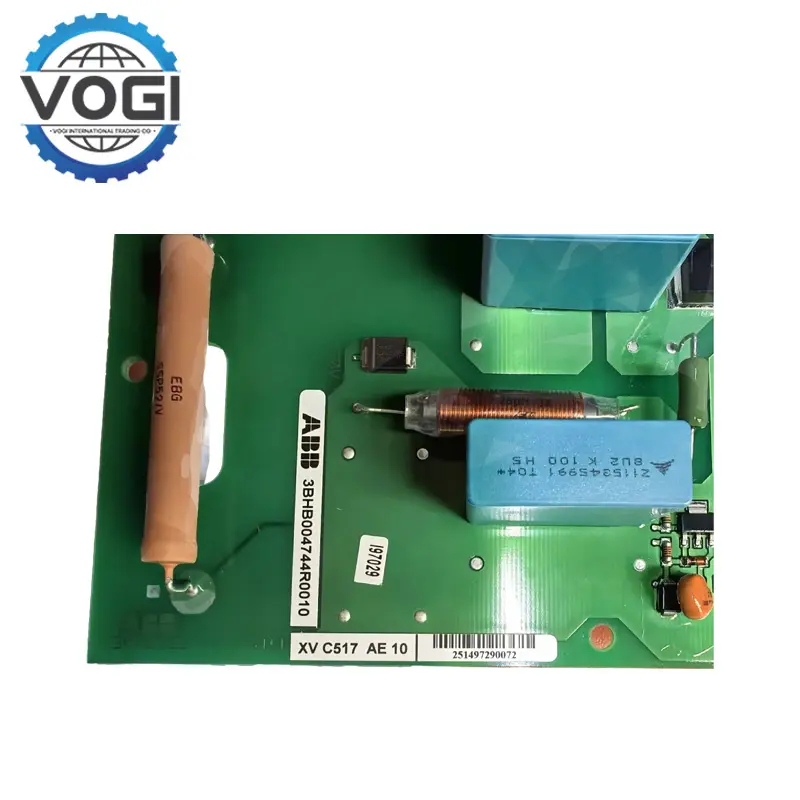

ABB XVC517AE10 3BHB004744R0010 Gate Driver Unit

Rated Operational Voltage: 400 V AC (AC-3).

Rated Current: 9 A (AC-3, 400 V).

Control Supply Voltage: 24 V DC / 110–240 V AC (depending on variant).

Poles: 3 (main contacts).

Auxiliary Contacts: 1 NO + 1 NC (optional).

Mechanical Life: 10 million operations.

Electrical Life: 1 million operations (AC-3).

Mounting: DIN rail (modular design).

Protection Class: IP20 (enclosure).

Ambient Temperature: -25°C to +60°C.

High power drive capability: High-frequency/high-voltage gate driver that drives two Nchannel MOSFETs (or IGBTs) with a synchronous DC-to-DC buck/boost converter and operates with a supply voltage up to 100 V The strong power drive capability of ABB XVC517AE10 can effectively minimize the switching loss of a MOSFET with high gate capacitance and enable high efficiency operation of power electronics equipment, significantly enhancing system performance.

Low power consumption features: ABB XVC517AE10 is characterized by low power consumption in operation, which can save the energy consumption of the whole system and enhance the energy utilization rate. The low power consumption is not only to save energy outflow, the equipment fever can be reduced and the equipment service life can be increased. It also satisfies the demand on a variety of material with hot drying temperature and less hot air.

Renewable energy system : ABB XVC517AE10 is used to motivate power devices in solar power and wind power generation inverter. Convert the DC power produced by solar panels or wind turbines to AC power and feed it into the grid or power local loads. Due to its quick switch and low power dissipation performance it can promote the efficiency and stability of renewable energy system and decrease energy losses.

Motor driver field: which is designed to drive a wide range of high power motors, including AC motors, DC motors, and servo motors. If we accurately control the winding current of the motor, we can accurately control the speed, position and torque of the motor. For industrial automation production line equipment.The robot and the CNC processing center and various processing machinery, such as the lathe, the cutting machine, the molding machine and the grinding machine, can be provided with reliable drive to ensure the high precision of the mechanical equipment.

Industrial automation field: ABB XVC517AE10 is a necessary part of industrial automation control system, and can combine with PLC, DCS and other to be a industrial automatic control system. It is applied to controlling a variety of industrial automation production process, control circuit to achieve the process automation, and its purpose is to improve the production efficiency, product quality, save energy and improve safety.
