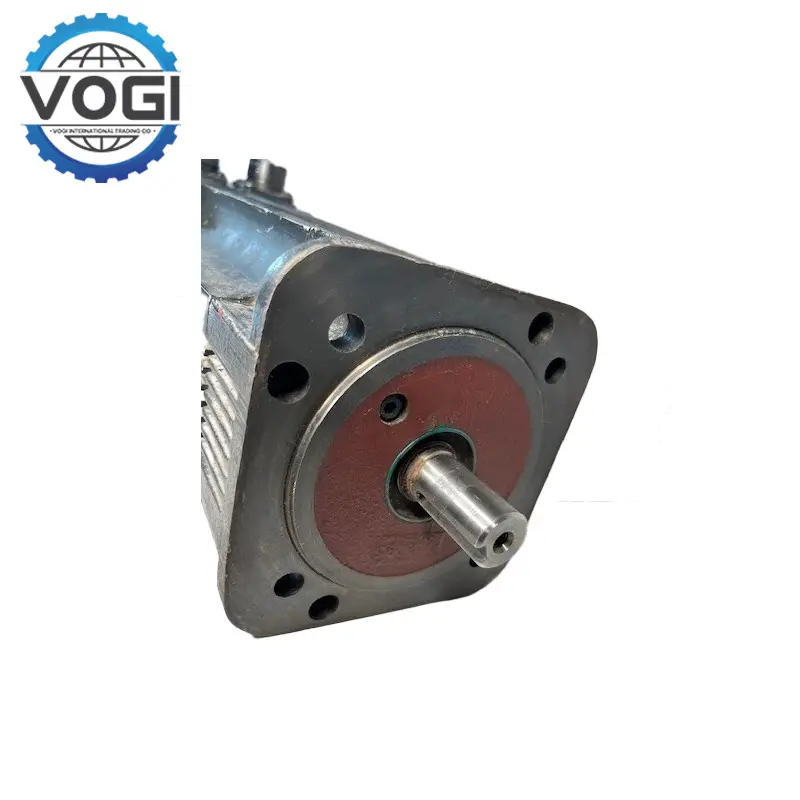

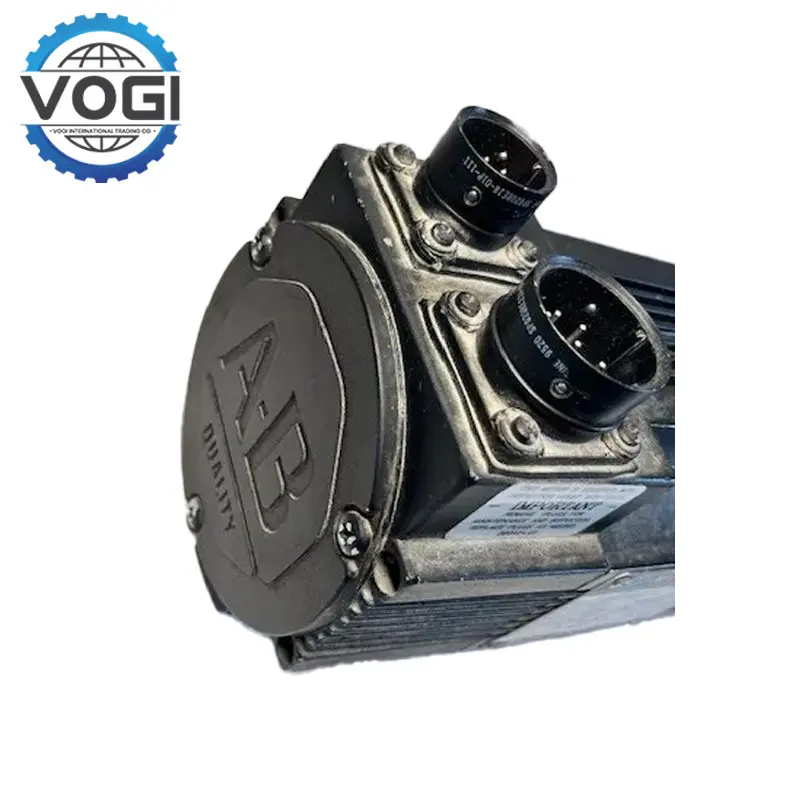

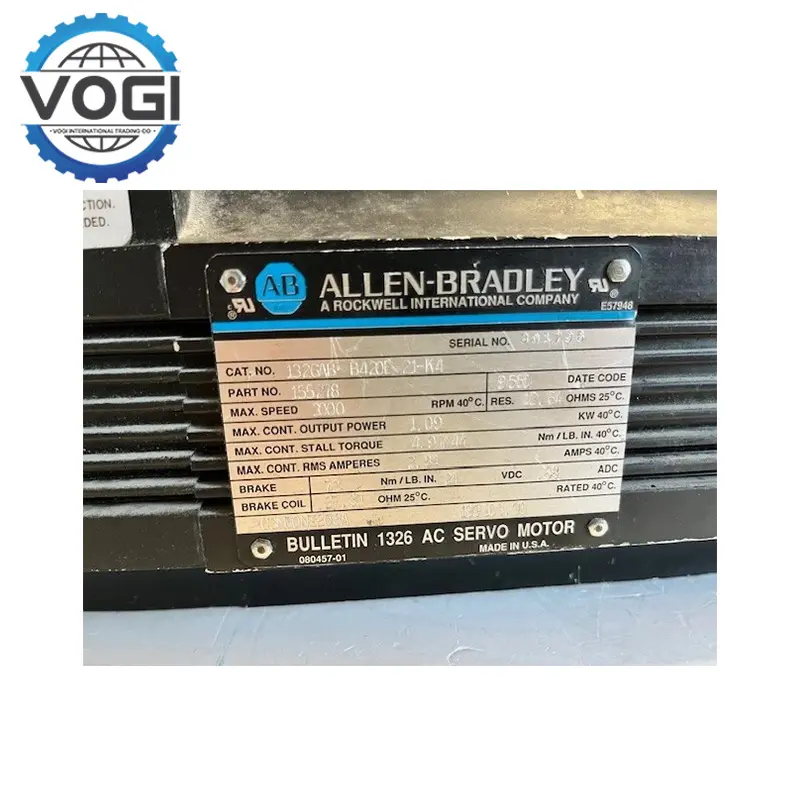

Allen-Bradley 1326AB-B420E-21-K4 SERVO MOTOR

Rated power: 1.1 kW

Rated voltage: 460/380V AC

Rated speed: 3000 RPM

Continuous output torque: 5.0 Nm

Peak torque: 14.9 Nm Brake torque: 8.1 Nm (24V DC)

Feedback type: Brushless resolver

Current rating: 2.84 A

Frame diameter: 108 mm

Mounting: IEC metric flange mount with keyed shaft

Protection rating: IP65 (after shaft seal kit installed)

Insulation rating: UL listed, file number E57948

Thermal protection: Built-in normally closed thermal switch, rated at 115V AC / 24V DC, 1A

High-performance output:Allen-Bradley 1326AB-B420E-21-K4​Provides 5 Nm continuous torque and 14.9 Nm peak torque for high-load applications.

Integrated brake:8.1 Nm brake ensures safe holding of loads when stopped or powered off.

High-precision feedback: Resolver feedback provides accurate position and velocity control for demanding motion control systems.

Compact design: 108 mm frame diameter for space-constrained installations.

Durable:IP65 protection rating and rugged aluminum housing for harsh industrial environments.

Thermal protection:Allen-Bradley 1326AB-B420E-21-K4​Built-in thermal switch prevents overheating and ensures safe motor operation.

CNC machine tools:​Achieve high-precision processing and positioning control.

Robotic systems:Allen-Bradley 1326AB-B420E-21-K4 Provide precise motion control to meet complex operation requirements.

Packaging machinery:​Allen-Bradley 1326AB-B420E-21-K4 Ensure high-speed and stable packaging processes.

Automated assembly lines:Allen-Bradley 1326AB-B420E-21-K4Improve production efficiency and meet the needs of continuous operation.

Material handling systems:​Achieve precise material positioning and handling control.
