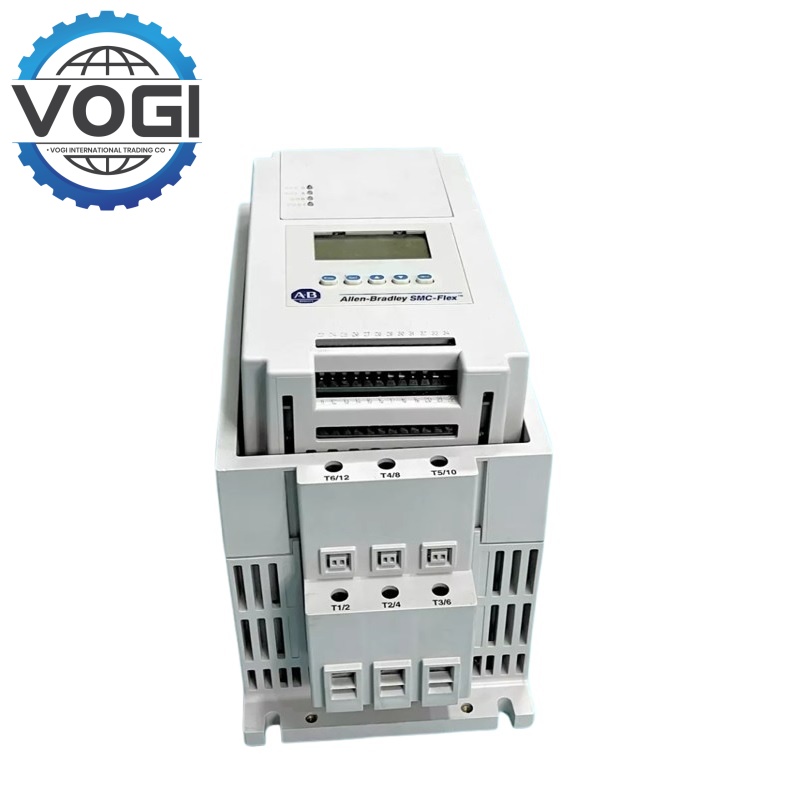

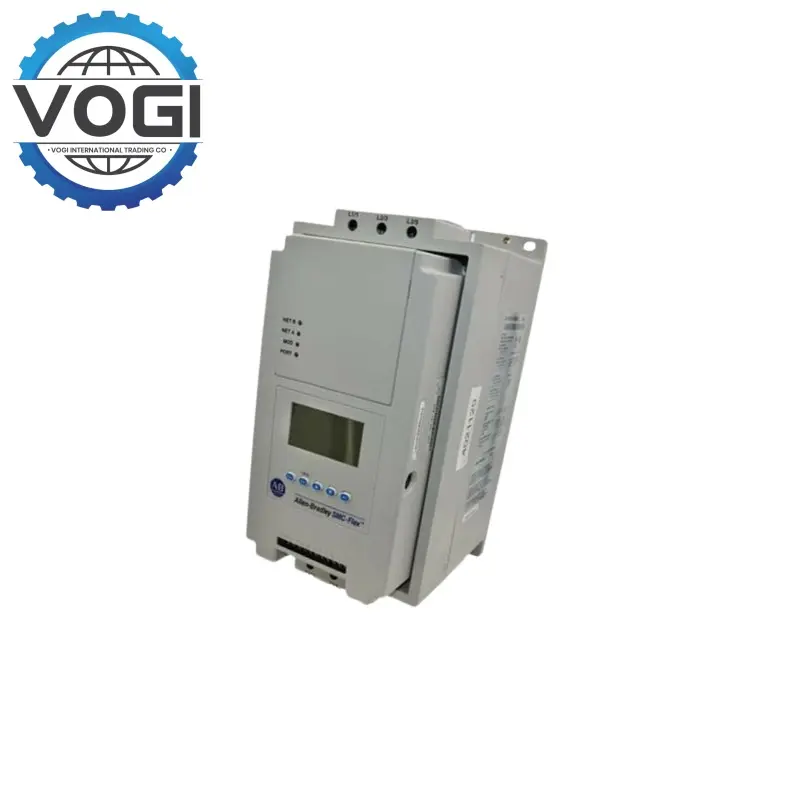

Allen Bradley 150F85NBDB Soft Starter

Technical SpecificationsVogi

Input Voltage: 200–480 V AC, 3-phase, 50/60 Hz
Control Voltage: 100–240 V AC
Current Rating: 85 A
Trip Classes: 10, 15, 20, 30
151.2 % of FLC trip setting in overload range.
Transformer Module: 75 VA@100–240 V AC (+15, −20%)
Fan Power: 20 VA @ 110–240 V AC
Operating Temperature. : -5°C to 50°C (23°F–122°F); Storage:−20°C to 75°

Functional FeaturesVogi

Its Soft-Start Motor Control employs a precision voltage ramp-up algorithm (0.5-30s adjustable) that eliminates torque spikes, reducing inrush current by 75% compared to direct starts. This gradual acceleration mechanism significantly extends gearbox lifespan in conveyor systems and prevents belt slippage in material handling applications.
Overload Protection utilizes dual-stage current monitoring with ±2% accuracy. The system triggers an auto-trip within 0.5 seconds upon detecting 117% FLC (Full Load Current), complete with thermal memory that prevents immediate restart after motor cooldown cycles.
Specialized Pump-Specific Optimization addresses fluid dynamics challenges through configurable S-curve acceleration profiles (linear/logarithmic selectable). This eliminates water hammer effects in pipeline systems by maintaining <2.5psi/s pressure variation during valve sequencing operations.
Operational transparency is ensured through Real-Time Status Indication, featuring multicolor LED arrays (RGB with 16-state coding) and configurable NO/NC alarm relays. The diagnostic suite includes event logging for last 10 faults with timestamp recording.
Industrial Connectivity supports simultaneous protocol operation through dual communication ports - Port 1 handles Ethernet/IP PROFINET while Port 2 manages Modbus RTU/TCP conversions. This enables seamless data integration with SCADA systems through pre-mapped motor parameter tags (speed, torque, kWh consumption).

Freight Estimation(Part Of The Area)Vogi

Key ApplicationsVogi

HVAC Systems: Energy-efficient controls of fans, pumps, and compressors, ensuring thermal comfort and ASHRAE compliance.
Water/Wastewater Management: Oversees filtration pumps and wastewater disposal systems to avoid overloads and ensure uninterrupted supply of water
Mining & Heavy Machinery: IP-rated robustness for dust/moisture resistance in harsh environments controlling crushers, conveyors and slurry pumps (85 A rating).
Food & Beverage Processing: Comment: Microbial Hygiene Management to meet FDA & HACCP complianceEnsures Cleanliness of Mixers, Conveyors and Packaging Lines
Pharmaceutical Production: In sterile atmospheres, whileupholding GMP standards and product integrity.

Advantages:Vogi

70% less inrush current, lowering energy costs
85 Rating for mining/industrial loads (heavy-duty).
Redundant Power Supply & Compact design (DIN rail mountable) with <1 sec fault response time.
Meets the safety standard of IEC 60947-4-1 and UL 508.
