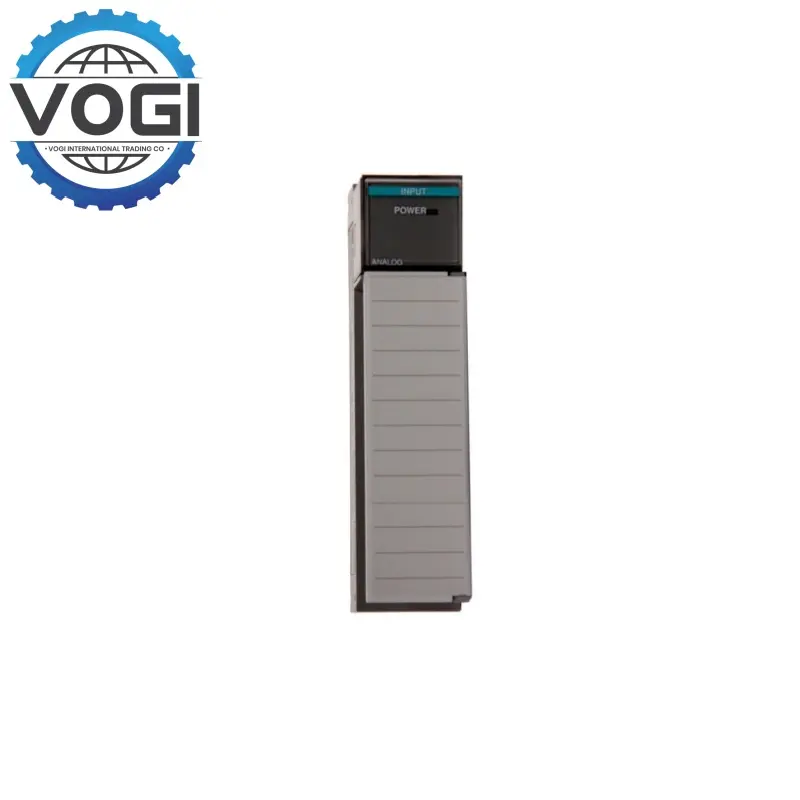

Allen Bradley 1746-NIO4V Analog I/O Module
Allen-Bradley

Allen Bradley 1746-NIO4V Analog I/O Module

  • Module Number 1746-NIO4V
  • Country Of Origin United States
  • Dimension 13cm*16cm*5cm
  • Weight 0.3kg
  • HS Code 8517795000
  • Condition Brand New
  • Certificate COO TEST REPORT WARRANTY LETTER
  • Warranty 12 Months
  • Inventory Qty 6
  • Payment Term T/T
Send inquiry Datasheet Download

TECHNICAL SPECIFICATIONSVOGI

Input Signal Range: -10 to +10 V DC or -20 to +20 mA.
Isolation: 500V AC and 710V DC for 1 minute.
Output Range: -10 to +10 V DC.
Resolution: 16 bit on input, 14 bit on output.
Bandwidth: 10 Hz.
Step Response: 95% within 60 ms, 2.5 ms output.
Backplane Current Load: 115 mA @ 24V DC — 55 mA @ 5V DC
Operating Voltage: 24 VDC.
Operating Temperature: 0 to 60 °C (32 to 140 °F.)

Freight Estimation(Part Of The Area)VOGI

Destination

Freight

Middle East

$35

Southeast Asia

$15

South Asia

$45

South Africa

$37

Europe and USA

$24

Russia

$42

FUNCTIONAL FEATURESVOGI

Significantly, Allen Bradley 1746-NIO4V has two analog input as well as two analog voltage output channels which allows it to connect with many sensors and actuators from different applications.
Through selective optical coupling and] integrated filter circuits, Allen Bradley 1746-NIO4V greatly reduces signal noise as well and facilitates accurate readings.
Input Channels: The input channels can sign differential, voltage and current signaling and can be configured independently. They can work independently, leading to numerous applications in an industrial set-up.
Isolation and Protection: Provides protection through 500V isolation between the backplane and field wiring. It can isolate the equipment from electrical interference and can protect the devices from possible damages to ensure that the devices operate smoothly.

APPLICATIONSVOGI

Food & Beverage: Ensures precise measurement, uniform filling and hygienic mixing, packaging, and filling processes critical for meeting the industry's stringent quality requirements.
Pharmaceutical companies: Allen Bradley 1746-NIO4V controls temperature & pressure in cleanroom environments and production equipment. Helps ensure precise drug dosing and mixing, which is critical for meeting stringent and compliance-oriented pharmaceutical regulations.
Chemical Industry Controls a Chemical reaction, regulates a tank level and unique monitor fluid flow rates its regulation is precise, ensuring the consistency of production, product quality, and the safety of operation.
Power Generation: Monitors generator/turbine performance using temperature and vibration sensors. Through early fault detection, i Allen Bradley 1746-NIO4V predicts when and how a fault may occur, improving efficiencies and enhancing safety.

SEND INQUIRYVOGI

Technical Specifications

Vogi

Allen Bradley 1440-TB-A Redundant Power Supply Interval For Allen Bradley Redundant Industrial Monitoring Module Here are its key technical specifications:
1.1 Power Requirements
Input Voltage: 21.6–26.4 VDC
This 4-28V tolerance range offers stable operation in industrial environments with fluctuating power supplies and is compatible with standard 24VDC systems.
Consumption: 175–300 mA
The low power architecture ensures low energy, while still enabling advanced processing.
1.2 Mechanical Specifications
Terminal Screw Torque: 0.8 Nm (7.1 lb-in)
Data only up to October 2023
Installation: Mount on a TS35/7.5/15 compatible DIN Rail
Support fast mounting on control panels and industrial racks by using off-the-shelf hardware.
1.3 Environmental Tolerance
Temp Range: Industrial Temp (-20°C to 65°C)
Rated for stationary, continuous operation in hostile factory environments.
-40°C to 85°C Wide Operating Range
Permits short-lived conditions with harsh environments during system turn-ons or failures
Humidity: ≤95% RH (non-condensing)
Note: It also conforms to IEC 60068-2-30 for moisture resistance.

Freight Estimation(Part Of The Area)Vogi

Destination

Freight

Middle East

$35

Southeast Asia

$15

South Asia

$45

South Africa

$37

Europe and USA

$24

Russia

$42

FeaturesVogi

2.1 Multi-Sensor Integration
The following are proofs of this versatility regarding Allen Bradley 1440-TB-A:
Universal Sensing Inputs:
At the same time processing dynamic signals from:
Eddy Current Probes (for monitoring of displacement)
IEPE Accelerometers (for vibration analysis)
DC/AC Voltage Sensing (0–10V/±5V ranges)
Velocity transducers (low frequency monitoring)
Tachometer Compatibility:
Supports Hall effect, optical encoder, and magnetic pickup (1–20,000 PPR) signals for RPM measurement.
2.2 Architecture of Signal Processing
30-Channel Pipeline Parallel Processing:
Calculates in real time:
Velocity to displacement conversion (dual integration)
FFT spectral analysis (currently up to 10 kHz FF bandwidth)
Detection of Peak/Peak-Peak Value
Onboard Intelligence:
Unofficial alarm limits can be set on:
Vibration severity levels according to ISO 10816
Custom process limit triggers
Monitoring of bearing defect frequencies
2.3 Output Configuration
2× 4–20mA channels with: analog outputs
16-bit resolution
99.5% over its operational life span.
