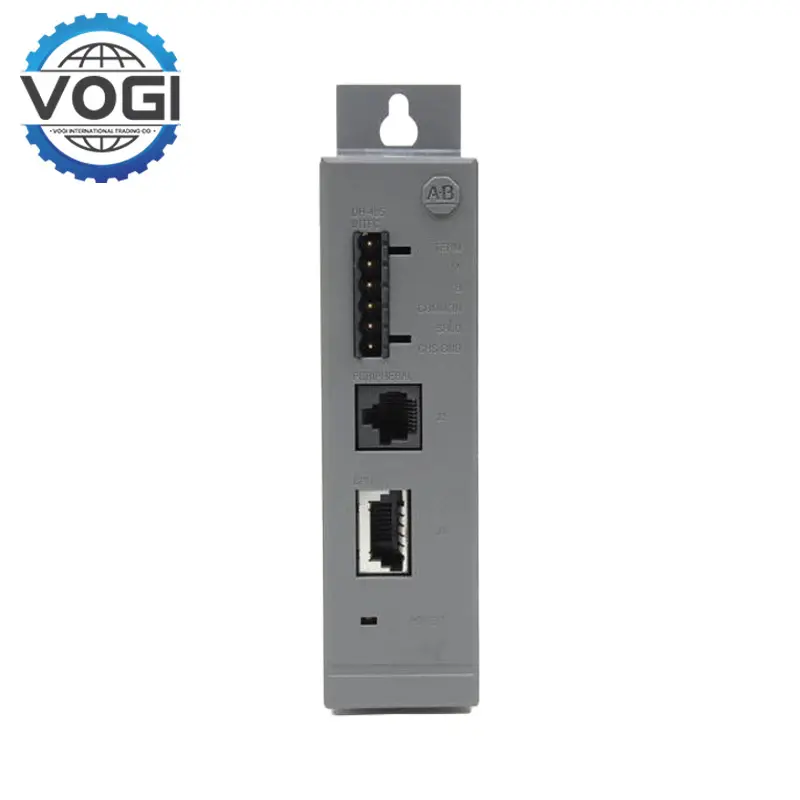

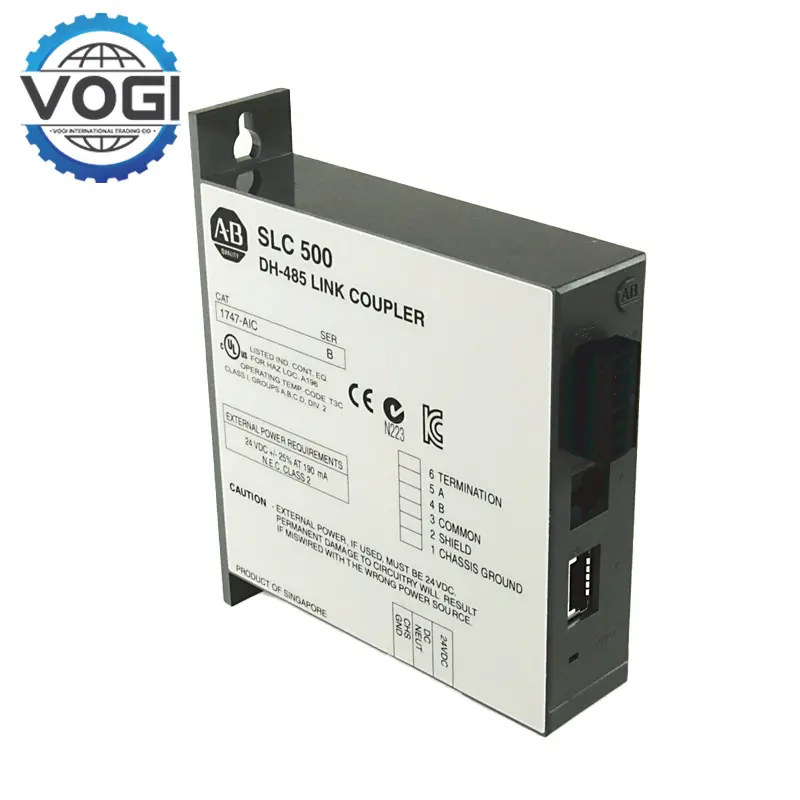

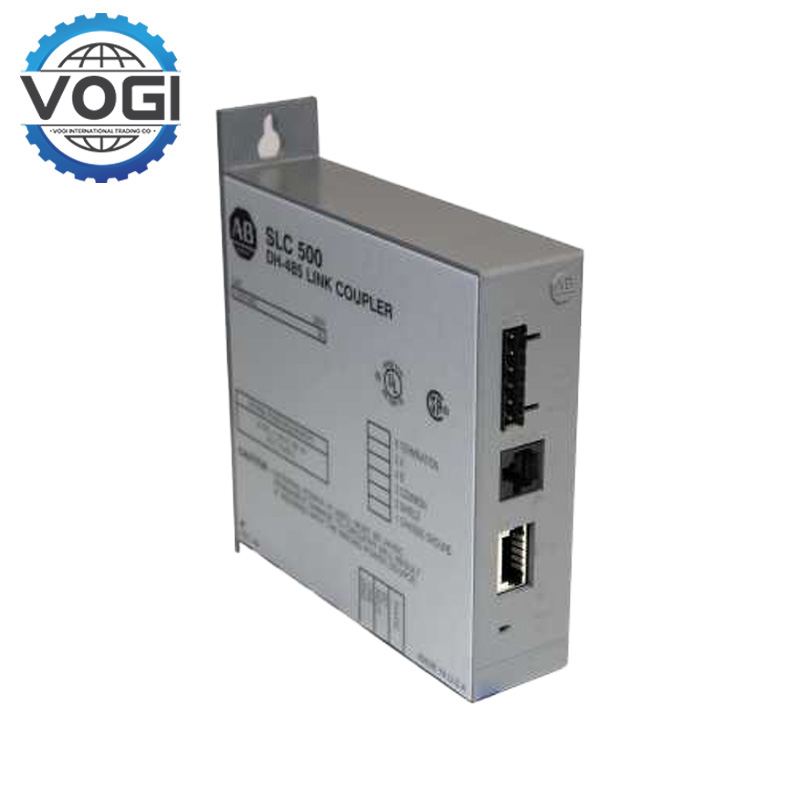

Allen-Bradley 1747-AIC SLC Isolated Link Coupler
Key SpecificationsVOGI
Power Input: 24V DC (Class 2), 0.085 A
Backplane Current (5V): 470 mA
Thermal Dissipation: 2.49 W
Communication Interface: DH-485 via shielded twisted-pair cables (Belden #3106A or #9842)
Isolation Voltage: 50V continuous
Mounting: Panel-mounted
Operating Temperature: 0°C to 60°C
Humidity Range: 5% to 95% RH
LED Indicator: Power status
Enclosure: Open
Compliance: NEMA ICS 2-230, IEC1000-4-2, EN50081-2 Class A, IEC1000-4-3
Key FeaturesVOGI
Electrical Isolation: Protects devices by isolating communication circuits, enhancing system reliability.
Flexible Power Options: Can be powered through the processor connection or an external 24V DC supply.
Versatile Connectivity: Supports various communication peripherals, including USB and RS-232 interfaces.
Compact Design: Small footprint allows for easy integration into control panels.
Robust Construction: Designed to operate in industrial environments with high humidity and temperature variations.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
SLC 500 Controller Networks: Facilitates communication between SLC 500 processors and DH-485 networks.
Programming Interfaces: Enables connections to programming workstations for system configuration and monitoring.
Industrial Automation Systems: Integrates various devices within automated manufacturing and process control environments.
