Allen Bradley 1756-CNBR ControlNet Bridge Module
Allen-Bradley

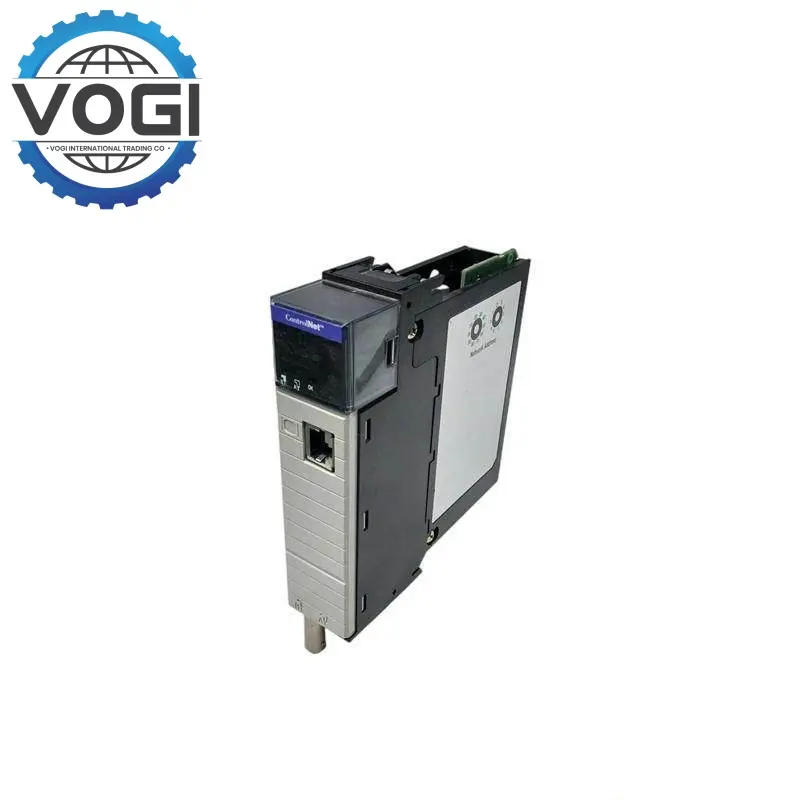

Allen Bradley 1756-CNBR ControlNet Bridge Module

  • Brand Allen Bradley
  • Module Number 1756-CNBR
  • Country Of Origin United States
  • Dimension 15cm*11cm*4cm
  • Weight 0.5kg
  • HS Code 8517795000
  • Condition Brand New
  • Certificate COO TEST REPORT WARRANTY LETTER
  • Warranty 12 Months
  • Inventory Qty 8
  • Payment Term T/T

Key SpecificationsVogi

Power Dissipation: 5.1 W.
Thermal Dissipation: 17.4 BTU/h.
Current Draw: 970 mA @ 5.1V DC, 1.7 mA @ 24V DC.
Frequency: 370MHz – 2GHz.
Bandwidth: 1042MHz.
Received Input: -47 to -62dBm.
Symbol Rate: 3.5 to 7MBPS.
Transported Fault:< 10 seconds.
Data Rate: 0 - 50Mbps.
RF Input: -95dBm/-80/IIP3(dBm).
Two ControlNet ports: BNC type.
Max node: 99 nodes (1-max).
Operating temperature: +0 to 60°C.
The storage temperature is -40 to 85°C.
Relative humidity: 5 to 95%, without condensation.
Shock: Op 30 g Non-op 50 g.


Freight Estimation(Part Of The Area)Vogi

Destination

Freight

Middle East

$35

Southeast Asia

$15

South Asia

$45

South Africa

$37

Europe and USA

$24

Russia

$42



FeaturesVogi

1. Redundant Media Support: Allen Bradley 1756-CNBR enables redundant media networks through two ControlNet ports, ensuring increased reliability and danger-free communication breakdowns, enabling uninterrupted operations.
2. Data Transfer and Bridging: It has the ability to work with the Logix 5550 controller to control scheduled data and bridge unscheduled data between the ControlLogix backplane and the ControlNet network. This ensures smooth data transfer from several different areas.
3. Diagnostic Features: Allen Bradley 1756-CNBR with complete diagnostic capability provides real time monitoring and troubleshooting functions, so any issues with the network can be quickly located and fixed for the optimized performance.
4. Configurability: It has the flexibility for user to easily configure Allen Bradley 1756-CNBR to suit different designs and communication needs. It easily integrates with other Allen Bradley hardware or software products to simplify the whole process of installation and configuration.
5. Broad Compatibility: The Allen Bradley 1756-CNBR is compatible with numerous ControlLogix racks, power supplies, and various ControlNet devices which affords flexibility in its arrangement for a range of industrial uses.



ApplicationsVogi

1. Pharmaceutical Industry: The Allen Bradley 1756-CNBR specifically helps in control and monitoring of key formulation, packaging and quality control systems in pharmaceutical production. This ensures that the pharmaceutical products will be complete in response to integrity and quality in reliability and precision of this information.
2. Chemical Industry: Used in chemical plants for control of pumps, valves, reactors, and other process equipment. For instance, the Allen Bradley 1756-CNBR enables users to do accurate feedback control of flow rates, temperatures, and chemical reactions for safe and efficient chemical production processes.
3. Power Generation Services : Allen Bradley 1756-CNBR helps optimize power-generation processes to improve energy efficiency and ensure reliable electricity supply in power plants, controlling an array of equipment including, turbines, generators and cooling systems.
