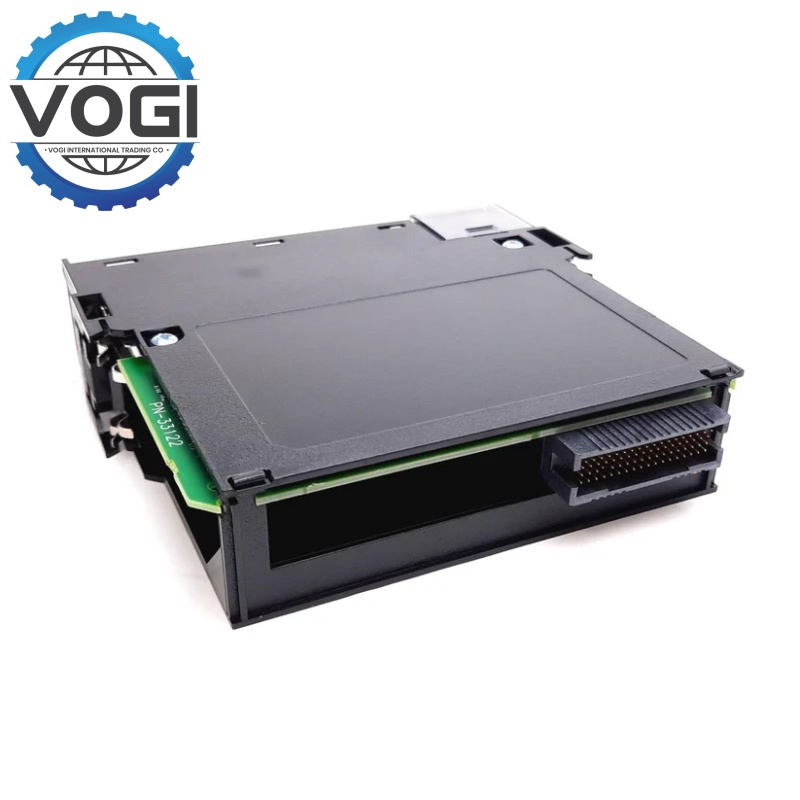

Allen Bradley 1756-ENBT Series A ControlLogix

Key SpecificationsVogi

Current Draw: 700 mA @ 5.1V DC.
Power Dissipation: 3.7 W
Thermal Dissipation: 12.6 Btu/h
Communication Rate: 10/100 Mbps
Operating Temperature: 0°C < Ta < 60°C (32°F < Ta < 140°F)
Storage Temperature: -40°C < Ta < 85°C (-40°F < Ta < 185°F)
Vibration: 2g @ 10-500 Hz
ESD Immunity: 6 kV contact discharges, 8 kV air discharges
EFT/B Immunity: ±2 kV at 5 kHz on Ethernet ports
Surge Transient Immunity: ±2 kV line-earth on Ethernet ports
Wiring Category: 2 - on Ethernet ports

Freight Estimation(Part Of The Area)Vogi

FeaturesVogi

1. Data Transfer and Network Connectivity: Allen Bradley 1756-ENBT acts as assigned communication modules to transfer larger amounts of data using Ethernet connections. Hence, there can be a bridge that could connect several devices and networks, allowing the users to control, configure, and collect data within a single Ethernet/IP network, which simplifies the network architecture.
2. Web-enabled Functionality: Allen Bradley 1756-ENBT is web-enabled, prompting the user to access its settings and internal diagnostics such as IP traffic, TCP, UDP, collision histogram, connection management, etc., through a standard web browser.
3. Remote I/O Adapter Capability: When server-based in remote I/O chassis, the Allen Bradley 1756-ENBT behaves as a remote I/O adapter integrated, which enables the user to gather and configure data and to control remote Controllogix modules, including input, output, analogue, or specialty modules.
4. Diagnostic Indicators: It displays of five-character diagnostic indicators, which are more informative and helpful for troubleshooting problems than simple LED lights, saves time and reduces guesswork.
5. Simplified Network Management: Allen Bradley 1756-ENBT is a simplified network management that helps in integrating the multiple functions that offer communication between various devices and networks and helps in decomposing the level of complexity in network architecture, which further helps in minimizing maintenance and support cost while improving the efficiency of the system.

ApplicationsVogi

1. Pharmaceutical industry: In the pharmaceutical manufacturing processes, it is implemented for process management and for monitoring of the critical activities of drug formulation, filling, and packaging. It supplies a much more defined means of process control of all the machine parameters involved in pharmaceutical manufacturing, guaranteeing the reliability and accuracy of drug production.
2. Chemical processing: In chemical plants, Allen Bradley 1756-ENBT 1756ENBT may be applied in the control of pumps, valves, reactors, and various other process equipment. It provides effective control over chemical processes, monitors process parameters such as temperature, pressure, and flow rate, and serves to optimize production procedures for increased productivity and improved quality.
3. Power generation: Allen Bradley 1756-ENBT can be used for monitoring and controlling equipment like generators, turbines, and transformers in power plants. This allows for the collection and analysis of operational data, remote control and diagnostics, and contributes toward achieving the reliable and efficient operation of power generation systems.
4. Material handling and logistics: In warehouses and distribution centers, Allen Bradley 1756-ENBT may control conveyor belts, automated storage, and retrieval systems-as well as other material handling equipment. This significantly enhances the efficiency of goods movement, thus making these possible through real-time inventory tracking and with the enhancement of logistics operations as a whole.
