VIBRO-METER

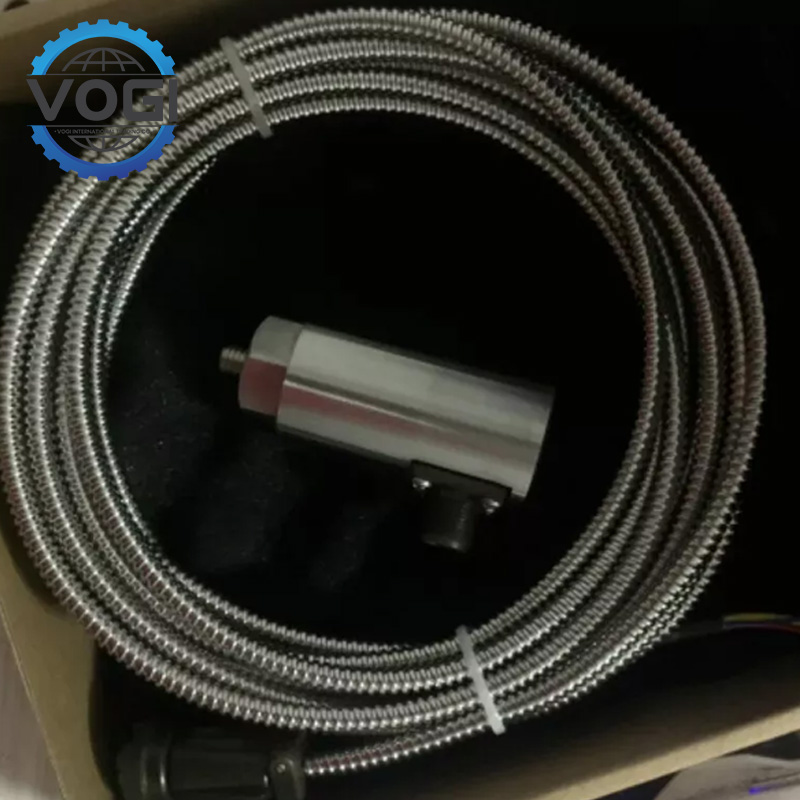

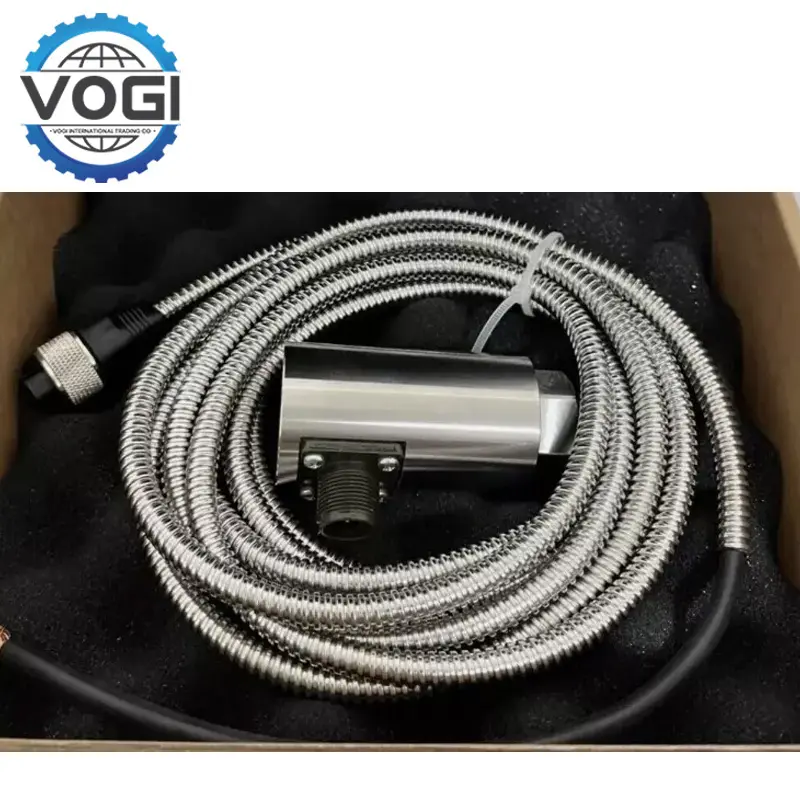

B&K VIBRO VS-068 X08124207 Vibration Velocity Sensors
Key SpecificationsVOGI
Sensitivity: 100mV/mm/s (±5%).
Internal Resistance: 4KΩ±5%.
Frequency Range: 10Hz - 2kHz.
Measuring Direction: Horizontal.
Working Temperature: -40°C - 80°C.
Maximum Vibration Displacement: ±0.45mm.
Natural Frequency: 8Hz.
Installation Thread: M10 double-ended bolt.
Cable: 3-core 5-meter armored cable.
Key FeaturesVOGI
Wide frequency response: The frequency range is 10Hz - 2kHz, and the lower limit of the frequency can reach 1Hz after secondary instrument compensation. This makes B&K VIBRO VS-068 adaptable to various rotating machines with different speeds, whether it is a high-speed fan, compressor, or a low-speed water pump, etc., it can effectively capture its vibration information.
Vibration measurement: Based on the principle of magnetoelectric induction, the vibration signal is converted into a voltage signal. When the sensor works within the operating frequency range, the internal coil and the magnetic steel produce relative movement, and the coil cuts the magnetic lines of force, thereby generating an induced electromotive force, which is proportional to the vibration speed of the casing. B&K VIBRO VS-068 can accurately measure the vibration speed in the horizontal direction, taking into account the application fields of high frequency, medium frequency and low frequency, and provide reliable data support for the vibration monitoring of the equipment.
High sensitivity: The sensitivity is 100mV/mm/S, and the sensitivity error is ≤7%. B&K VIBRO VS-068 can detect small vibration changes. Even if the equipment just starts to have a slight vibration abnormality, it can output the corresponding signal in time, which is convenient for the staff to find the problem in advance and take measures to avoid further expansion of the fault.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$58 |
|
Southeast Asia |
$18 |
|
South Asia |
$77 |
|
South Africa |
$62 |
|
Europe and USA |
$34 |
|
Russia |
$70 |
APPLICATIONVOGI
Wind power industry: In wind turbines, B&K VIBRO VS-068 is widely used for condition monitoring of gearboxes, main shafts, and generator bearings. Its high sensitivity can capture early wear signals, and combined with blade pass frequency analysis, it can effectively prevent gear tooth breakage, bearing peeling and other faults, and reduce power generation losses caused by downtime maintenance.
Manufacturing and power industry: In the online monitoring of steam turbines and gas turbines, the system identifies the resonance of rotating parts through order analysis to avoid structural damage caused by critical speed.
Transportation: In ship propulsion systems or high-speed rail traction motors, the impact pulse detection function of B&K VIBRO VS-068 can identify bearing damage caused by poor lubrication, and combine temperature sensor data to achieve multi-dimensional fault diagnosis and improve the reliability of transportation equipment.
