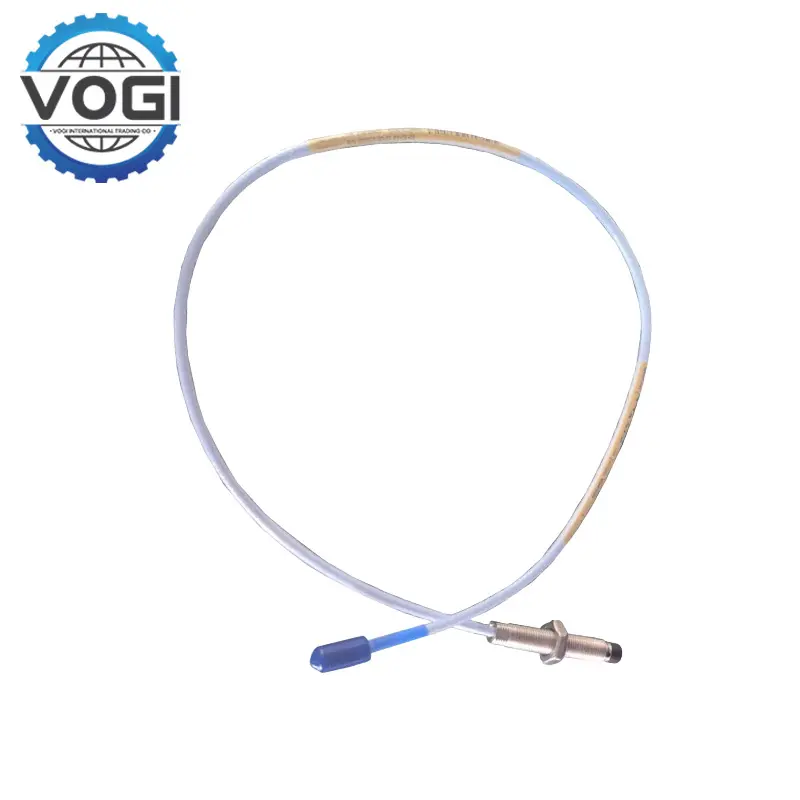

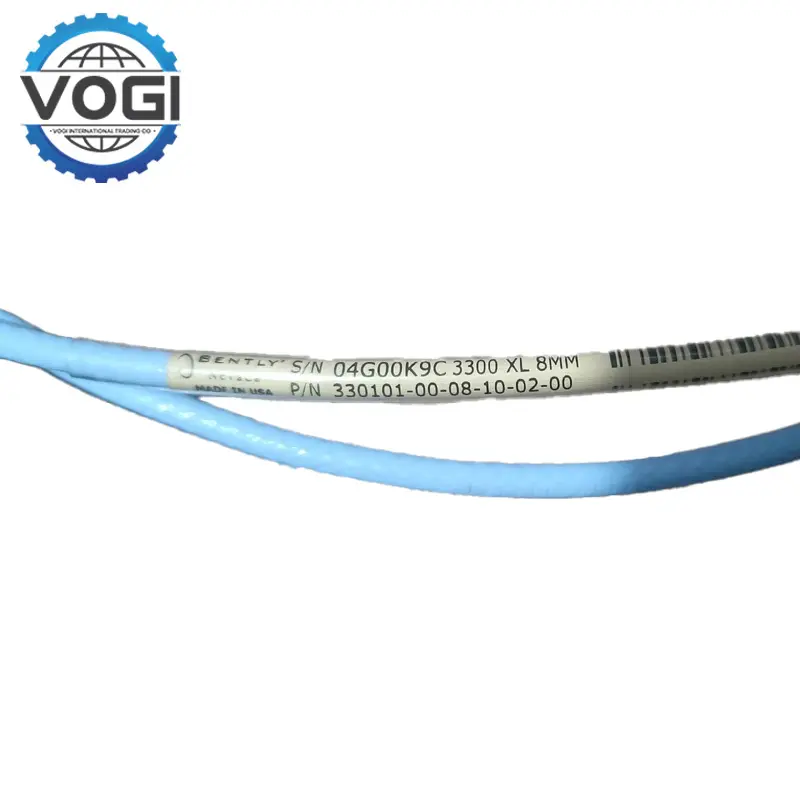

Bently Nevada 3300 XL 8 mm Proximity Transducer

One 3300 XL 8 mm probe,

One 3300 XL extension cable and

One 3300 XL Proximitor Sensor.

Bently Nevada 3300XL 8mm provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

 Accurately measure rotating machinery parameters: In rotating machinery, such as steam turbines, gas turbines, compressors, pumps, etc., Bently Nevada 3300XL 8mm can perform high-precision non-contact measurements of shaft vibration, displacement, speed and other parameters.

Nice compatibility and interchangeability: Any piece of the sensor are entirely interchangeable, and backward compatible with other non-XL 3300 series 5mm and 8mm sensor system components. Specifically, when the equipment needs to be maintained or upgraded, Murphy content can omit the extremely complicated calibration and matching work, greatly saving maintenance costs and downtime, and improving the maintainability and operation efficiency of the equipment.

Meet the needs of high-precision detection: Bently Nevada 3300XL 8mm has the characteristics of high precision and high sensitivity, with a linear range of generally 2mm and a sensitivity of up to 7.87V/mm. This enables it to detect extremely small displacement changes of the measured object. For certain industrial production processes with very high precision requirements, it can provide accurate measurement data to assist engineers in identifying problems in a timely manner, thus, it ensures equipment performance and quality.
