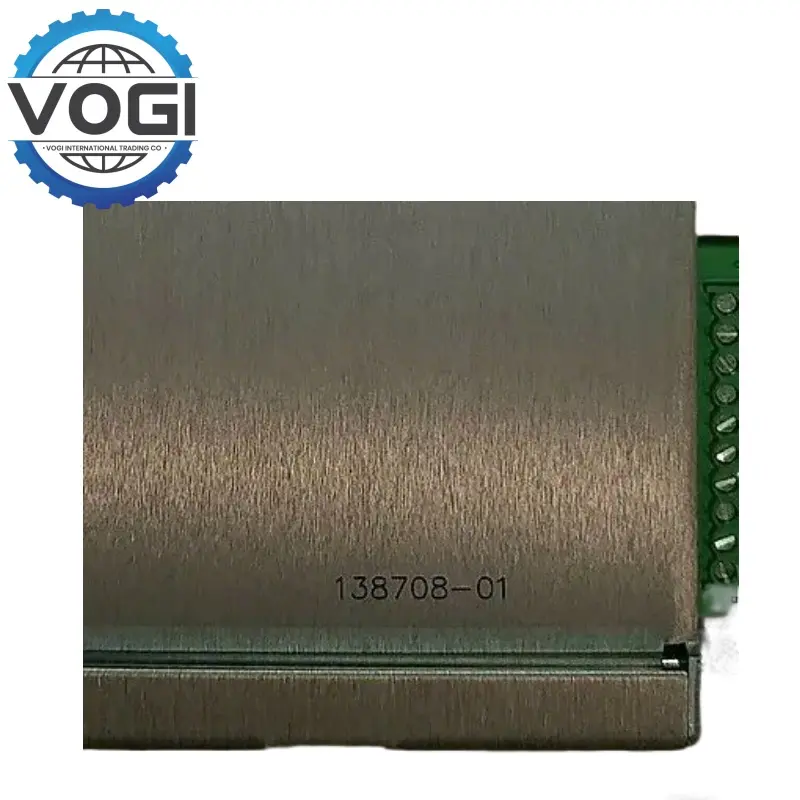

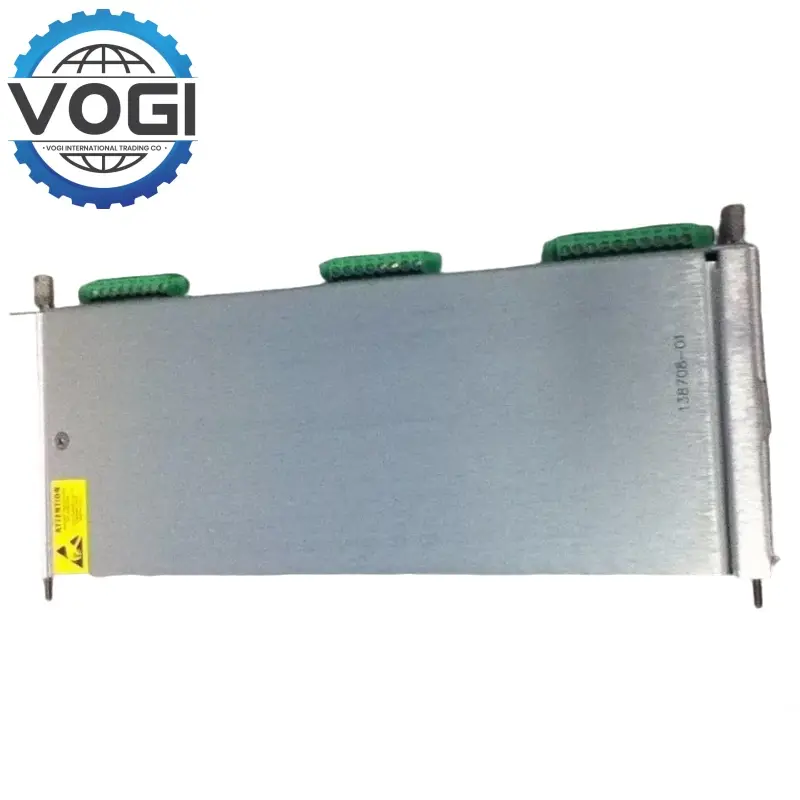

Bently Nevada 3500/42M-07-00 138708-01 Shaft Absolute I/O Module with Internal Terminations

Type of Input Signal: Accepts 1 - 4 signals from proximily, velocity oracceleration sensors.

Input Impedance : Standard I/O is 10 kΩ (Proximitorand Acceleration Inputs).

2. Output Parameters

Output Typeand Features: Shaft Absolute I/O Module per one output for each channel group, output short circuit-proof, output impedance 300Ω, output signal value is proportion to full scale of monitoring, independent for each channel, recorder output short circuit does not affect monitor operation, load resistance 0-600Ω, output voltage range 0- + 12 Vdc.

Resolution: 0.3662μA

Response ratio: With different measurement parameters (such as radial vibration, axial vibration, etc.), there will be different response ratio settings, such as radial vibration direct user settable filter, (-3 dB at 4 Hzto 4000 Hz) or (1 Hz to 600 Hz) ± 1% FS, axial gap filter -3 dB at 0.09 Hz etc.

±0.33%typical value ±1% maximum full scale(no including filtering effect) 1X ±0.33%typical value ±1% maximum full scale other measurement ratio please refer to the sampling ratio accuracy: The direct and gap measurement accuracy is ±0.33%typical value ±1% maximum full scale 1X is ±0.33% typical value ±1% maximumfull scale and so on.

Operating temperature: 0 to 65 °C (32 to 150 °F) for barrierI/O modules (internal termination) when used with internal/external termination I/O modules.

Storage temperature:-40°C-85°C (-40°F-185°F).

Humidty: 95%non-condensing.

Multifunction: 138708-01 is compatible witha range of sensors and is capable of measuring a range of equipment parameters.

Rotating machinery condition monitoring: At the industrial level, many kinds of rotating machinery equipment is commonlyemployed in production, including motors, pumps, fans, compressors, etc. Infact, the module 138708-01 can use in real-time to detect the absolute vibration, displacement and other important parameters of the shaft in their equipment.

Industrial automation production line equipment monitoring: 138708-01 module can be real-time monitoring equipment shaft rotation, Can accurately detect equipment processingaccuracy. If the position of the shaft is dislocated, it canbe adjusted in time to avoid the beads circle deformation, and not only defective product avoids being produced, but also product yield rate is enhanced, and market competitiveness of enterprises is strengthened.

Monitoring of electric field device: It can avoid again the 138708-01 module can monitor and real time shaft system of machineFind out in time for shaft system failures danger. In oilextraction and oil transportation, oil production and transportation should ensure that it goes smoothly.
