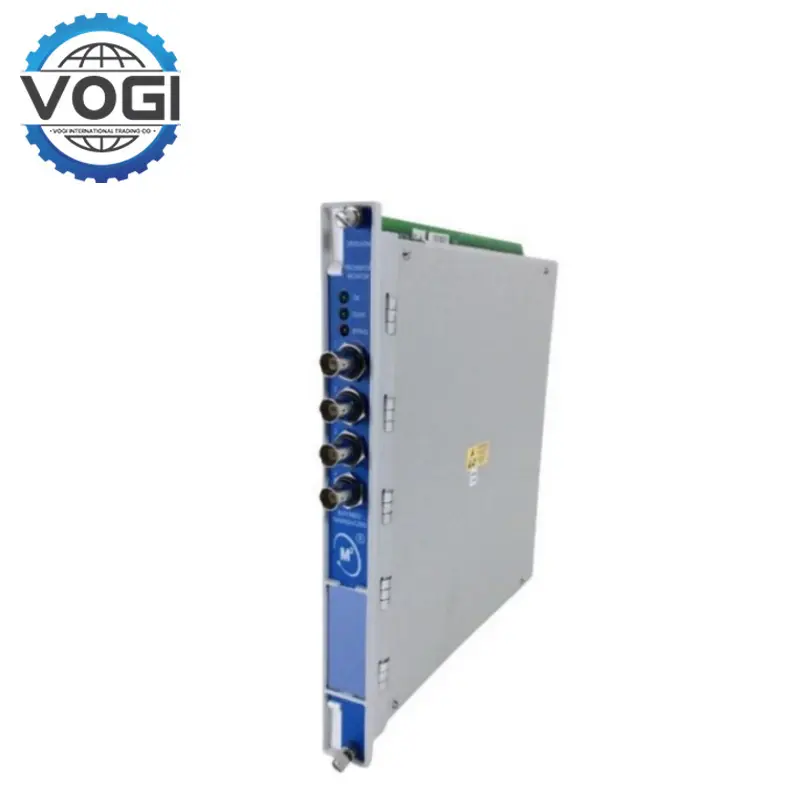

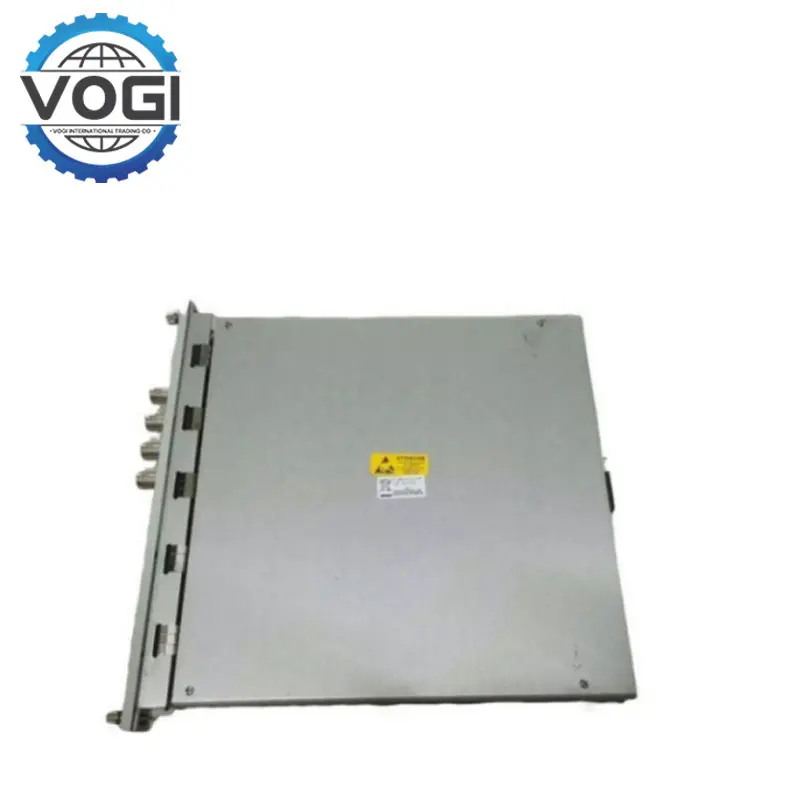

Bently Nevada 3500/72M 176449-08 Recip Rod Position Monitor

Operating Temperature: -20 °C to +70 °C.

Storage Temperature: -40 °C to +85 °C.

Humidity: 95% RH, non-condensing.

Acceleration Range: ±40 g peak.

Rod Position: Peak-peak filter fixed 1 Hz to 600 Hz; Gap filter -3 dB at 0.09 Hz .

Rod Drop/Hyper Channels: Average piston position fixed 1 Hz to 600 Hz; Average gap -3 dB at 0.09 Hz .

Accuracy: ±0.33% of full-scale .

Power Supply: 18 to 32 VDC; ≤7 W consumption .

Front Panel LEDs: OK, TX/RX, Bypass .

Sensor Type: Reciprocating impulse sensor .

Acceptable Input Signals: Accepts from 1 to 4 proximity probe signals .

Input Impedance: 10 kΩ .

Power Analysis: Bently Nevada 3500/72M incorporates a sophisticated dynamic signal processing ability. This includes spectrum analysis capable of disaggregating the vibration signal into frequency components, and envelope analysis directed at detecting the first signs of failures in gears and bearings.

Trend Analysis and Prediction: Bently Nevada 3500/72M can trend vibration data over time, thus enabling it to use historical data to predict machine failures, providing an excellent opportunity for maintenance personnel to schedule proactive maintenance.

Alarm and Trip Settings: It provide quite good customizability for alarm and trip settings. Users can set different alarm levels based on vibration amplitude, frequency, and/or other factors of connection. Provided that a critical incident arises, the system can initiate a trip command to shut the machine down to avoid additional damage.

Remote monitoring: Bently Nevada 3500/72M can remotely monitor and let engineers and operators remotely access vibration dat and system status from a point in the control room or outlying engine room through network connections, thus enabling efficient plant-wide monitoring and management.

Expert Diagnostic Tools: Built-in advanced diagnostic tools and software in the Bently Nevada 3500/72M are state-of-the-art in terms of analyzing and interpreting the vibration data available for such purposes. These tools are most helpful in enabling maintenance personnel to quickly narrow down the root cause of machine problems to take appropriate corrective actions.

Power Generation: Bently Nevada 3500/72M used in turbine, generator, steam and gas engine monitoring in power plants. It provides higher reliability and more efficient power generation equipment, leading to continuous supply and reducing opportunities for expensive outages.

Petrochemical: Used in several refineries and chemical plants including pumps, compressors, and centrifuges.

Manufacturing: It allows for the monitoring of tools, motors and production line machinery in factories. At an industrial level, the entire system is optimized for performance, quality of products, and low maintenance cost through predictive maintenance strategies using Bently Nevada 3500/72M.
