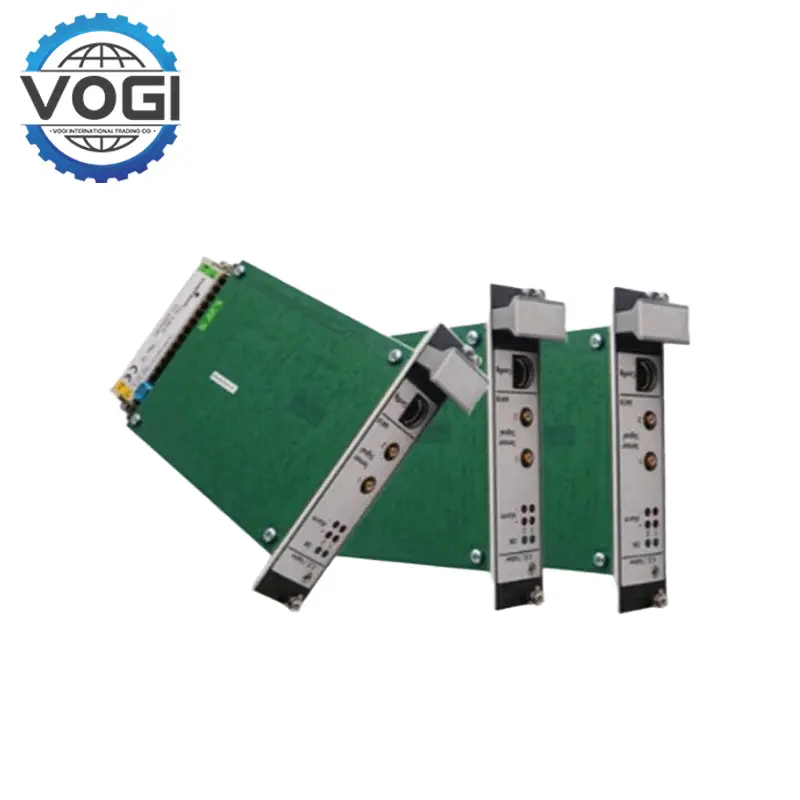

Emerson A6120 Case Seismic Vibration Monitor

Number of inputs: Two, independent or combined monitoring modes.

Type of inputs: Eddy current, differential.

Emerson sensor inputs: Part number 6422, 6423, 6424, 6425.

Isolation: Galvanically separated from power supply.

Input resistance: >100 kΩ.

Input voltage range: 0 to -22 VDC.

Input frequency range: Lower cutoff 1 or 5 Hz;Upper cutoff 50-2000 Hz adjustable.

Range: Continuously adjustable with the configuration software.

Smallest range 0-400 mV.

Largest range 0-8000 mV.

Sensor power supply: 0-8000 mV ; Separate buffered sensor supply; Galvanically separated from all system voltages and system supply voltages Open and short circuit proof.

Nominal voltage: -26.7 V.

Available current: Nominal 20 mA, maximum 35 mA.

Four-Channel Synchronized Analysis: Emerson A6120 revolutionizes equipment diagnostics with four independent input channels, enabling simultaneous tracking of radial, axial, and torsional vibrations in turbines, compressors, and generators. Each channel achieves 0.05 µm resolution (0–25 mm/s velocity range), ensuring micro-level detection of early-stage bearing wear or misalignment.

Adaptive Threshold Algorithms: Unlike static alert systems, Emerson A6120 employs dynamic threshold adjustments based on real-time operational data. Its AI-powered analytics predict failure risks during speed ramps or load shifts, reducing false alarms by 40% in unstable environments like power plants or steel mills.

Wireless Cloud Integration: Compatible with Emerson’s IoT platform and third-party SCADA systems, A6120 transmits encrypted vibration data via 4G/LoRaWAN. Field engineers access live diagnostics through mobile apps, enabling rapid response to anomalies in remote offshore rigs or wind farms.

Aerospace Composite Wing Inspections: During F-35 fighter jet maintenance, the Emerson A6120 scans carbon-fiber delamination and fastener corrosion with 0.02mm resolution. Its MIL-STD-461F shielding prevents EMI interference from radar systems, cutting inspection time by 55% at USAF depots.

Offshore Hydrogen Pipeline Welds: Deployed on subsea ROVs, Emerson A6120 monitors weld integrity under 300-bar hydrogen pressure. Dual NACE MR0175/ISO 21457 compliance ensures reliability in sour gas environments, detecting 0.1mm cracks missed by traditional NDT methods.

Brewery Pasteurization Line Corrosion: Integrated into stainless steel vat clusters, Emerson A6120 tracks wall thinning from CIP acid cycles (pH 1.5–14). The IP69K-rated sensor array reduced unplanned shutdowns by 72% at a Belgian beer conglomerate.
