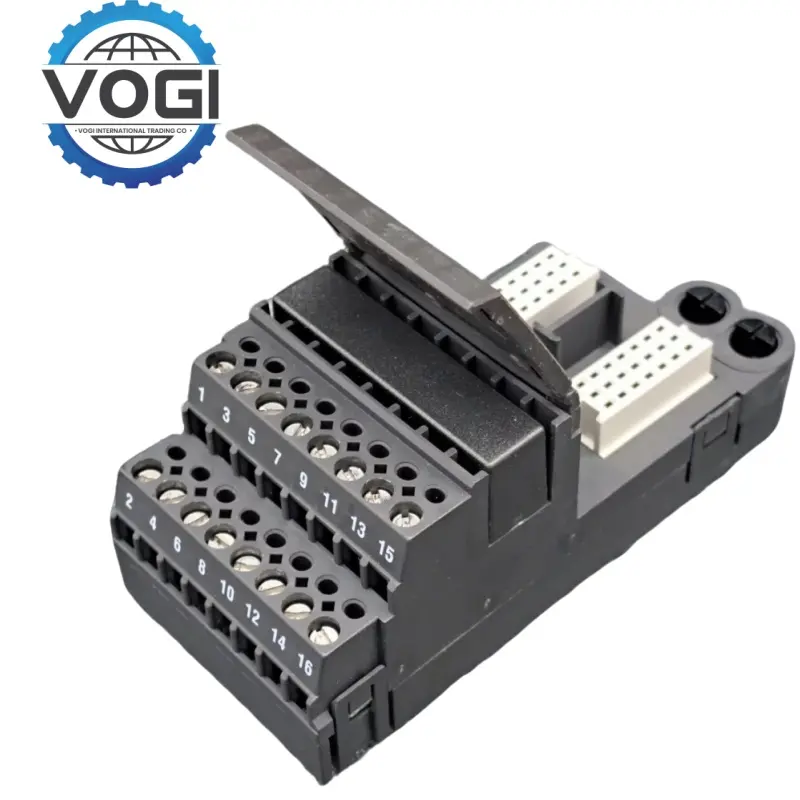

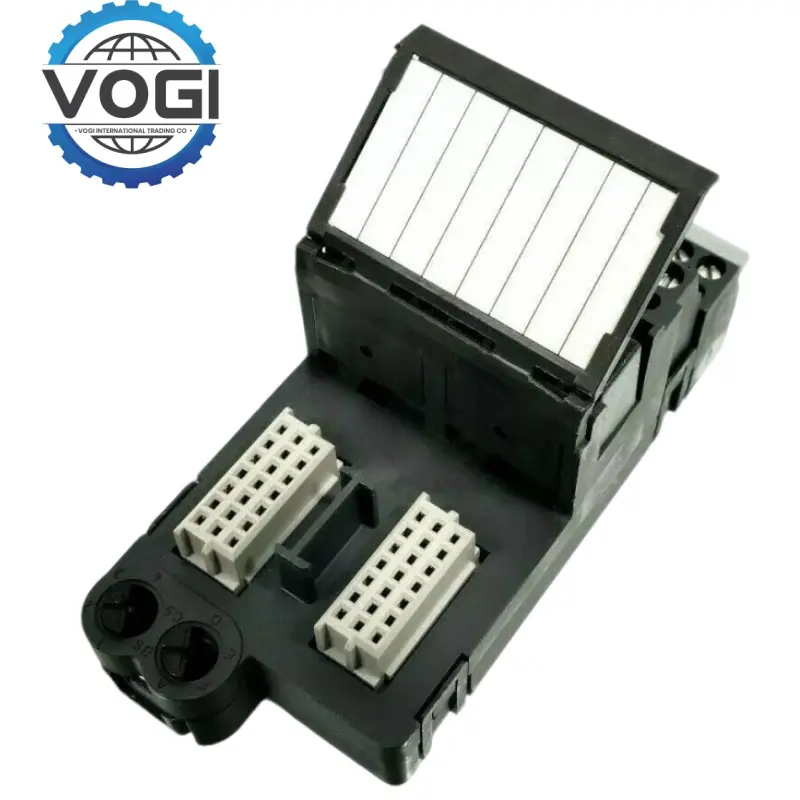

Emerson KJ4006X1-BL1 12P4726X042 AI 8-Channel Terminal Block

1.Power input Main power supply: 24 VDC

2.Backup battery: Optional redundant power supply module

3.Communication interface: HART protocol, PROFIBUS DP (requires VE4014 dedicated communication card)

4.Programmable input: 8-channel analog input (4-20mA, with HART protocol), 4-channel isolated input (compatible with sensor signal)

5.Relay output: 4-channel digital output (realized through expansion modules such as VE4011B1)

6.Device capacity: Supports 120 nodes, 100 controllers (single/dual redundancy), 60 workstations (DeltaV system expansion capability)

7.Operating temperature: -20°C to +60°C

8.Humidity range: 5%-95% RH (non-condensing)

9.Display and operation: External DeltaV system HMI touch screen (supports real-time monitoring, alarm management and configuration operations)

1.DeltaV system integration: Emerson KJ4006X1-BL1 12P4726X042 is used as the core terminal module of DCS, seamlessly coordinating controllers and I/O cards, and is suitable for process control in pharmaceuticals, petrochemicals, etc.

2.Redundant and modular design: Emerson KJ4006X1-BL1 12P4726X042 supports redundant controllers and hot-swap replacement to ensure high availability; flexible expansion of workstations and I/O modules.

3.Multi-signal processing capability

8-channel analog input (4-20mA + HART)

4-channel isolated input, suitable for sensor and actuator access.

4.Industrial communication protocol: integrated HART, PROFIBUS DP, compatible with third-party devices.

5.Harsh environment adaptation: wide temperature and humidity (-40°C to +70°C, 5%-95% RH non-condensing), meeting the needs of hazardous areas.

6.Efficient maintenance and monitoring: Emerson KJ4006X1-BL1 12P4726X042 external DeltaV HMI touch screen for real-time management, built-in self-diagnosis for rapid fault location.

1.Process industry automation: Emerson KJ4006X1-BL1 12P4726X042 is used for temperature/flow/pressure control in chemical, petroleum refining, pharmaceutical and other industries, and is adapted to the high reliability requirements of DCS systems.

2.Pharmaceutical and bioengineering: Emerson KJ4006X1-BL1 12P4726X042 supports GMP-compliant production, such as aseptic process control and fermentation monitoring, to ensure data integrity and process traceability.

3.Energy and power management: Emerson KJ4006X1-BL1 12P4726X042 is used for redundant control and real-time data acquisition in power plants and substations.

4.Water treatment and environmental protection: Emerson KJ4006X1-BL1 12P4726X042 supports the automated process of sewage treatment and pump station management.

5.Food and beverage production: Emerson KJ4006X1-BL1 12P4726X042 is suitable for automated control of filling lines and sterilization processes to meet hygiene standards and traceability requirements.
