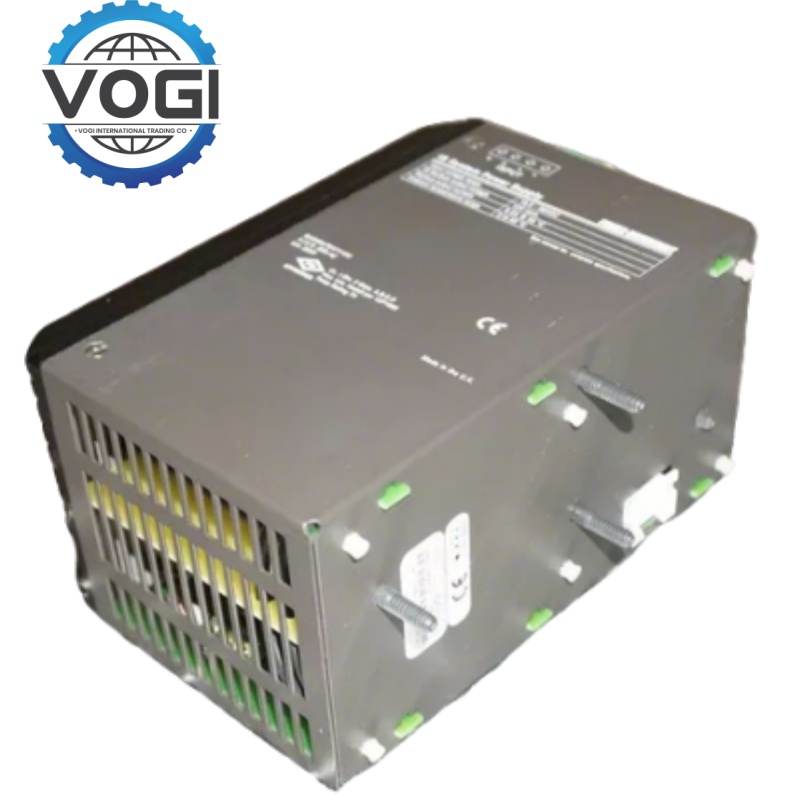

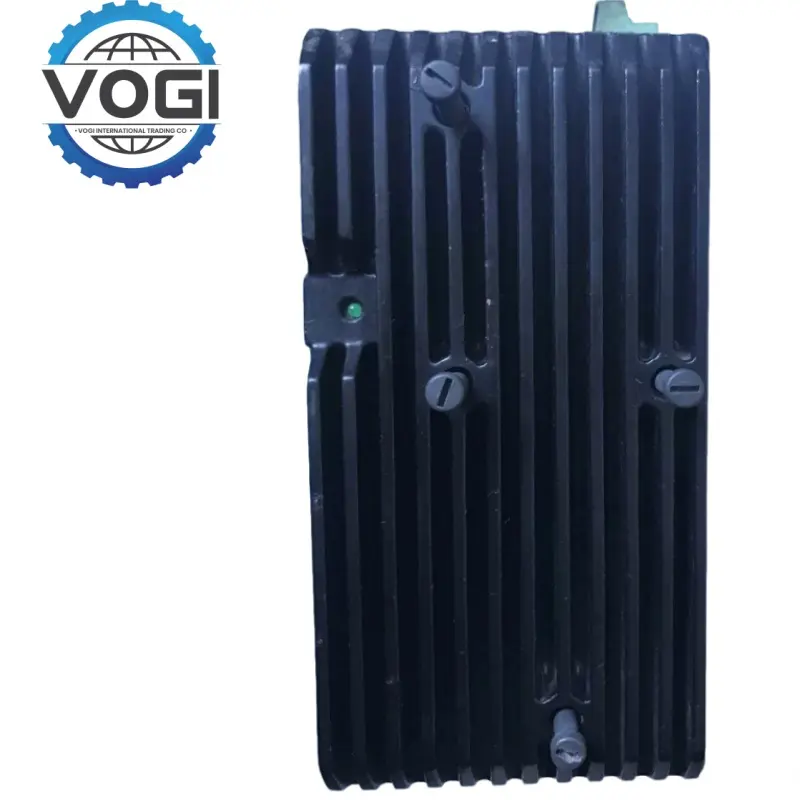

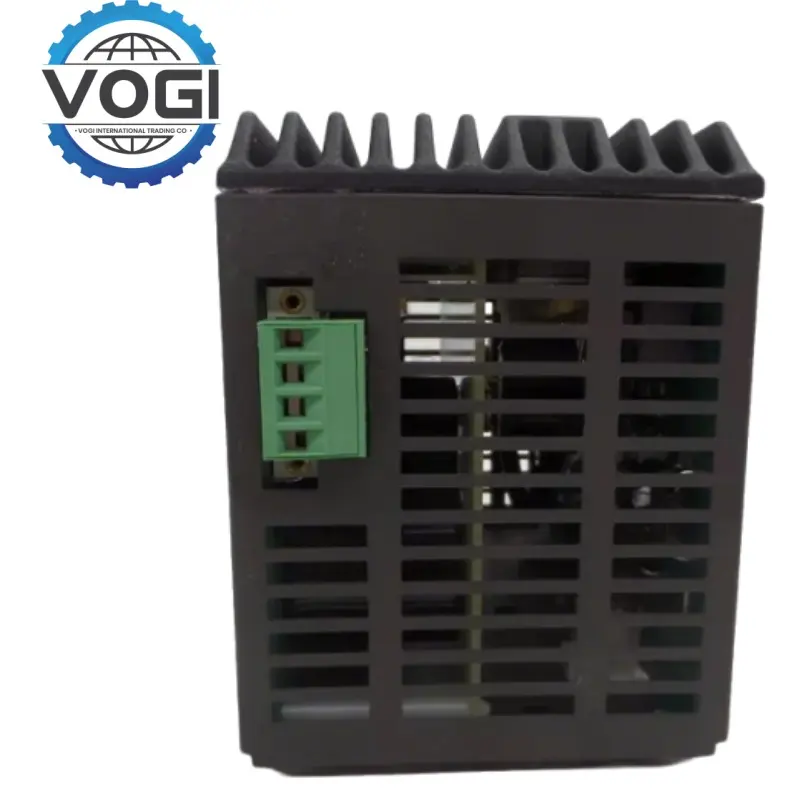

Emerson KJ4110X1-EA1 12P1878X032 System Power Supply
Key SpecificationsVOGI
1.Power input main power supply: 24 VDC (industrial-grade power supply, supports redundant configuration)
2.Backup battery: 7.2V DC lithium battery (typical battery life of 72 hours, supports hot-swap replacement)
3.Communication interface: integrated HART protocol, PROFIBUS DP, Modbus TCP/IP; modules are expanded through LocalBus
4.Programmable input: 16-channel mixed signal input (supports 4-20mA, RTD, thermocouple and pulse signals)
5.Relay output: 8-way dry contact relay (contact capacity 250VAC/30VDC, maximum 5A, supports redundant control)
6.Device capacity: maximum support 256 nodes, can manage 32,000 independent named points and 16,000 real-time variables/second update
7.Operating temperature: -40°C to +70°C)
8.Humidity range: 5%-95% RH (non-condensing)
9.Display and operation: external HMI touch screen; built-in LED status indicator
Key FeaturesVOGI
1.Ultra-high scalability: Emerson KJ4110X1-EA1 12P1878X032 supports 256 nodes, manages 32,000 named points, and is suitable for ultra-large industrial systems. Redundant power supply/communication links, hot-swappable key modules, to ensure continuous operation.
2.Multi-signal processing capability: 16-channel input (4-20mA, RTD, thermocouple, pulse signal), suitable for sensor/actuator access.8-way dry contact relay output (250VAC/5A), supports equipment interlock protection.
3.Industrial communication integration: Emerson KJ4110X1-EA1 12P1878X032 integrates HART, PROFIBUS DP, Modbus TCP/IP, LocalBus module expansion, seamlessly connected to DCS/PLC system.
4.Harsh environment adaptation: Emerson KJ4110X1-EA1 12P1878X032 has an operating range of -40°C to +70°C, humidity 5%-95% RH, and has passed II 3G Ex explosion-proof certification.
Modular intelligent maintenance: Emerson KJ4110X1-EA1 12P1878X032 can be expanded with vibration monitoring module, built-in self-diagnosis, and external HMI real-time monitoring.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
1.Petrochemical and natural gas processing: used for pressure/temperature monitoring of oil refining units and flow control of gas pipelines, suitable for high temperature, high pressure and explosive environments (passed II 3G Ex explosion-proof certification).
2.Power and energy infrastructure: used for vibration monitoring of steam turbines in power plants, redundant control of high and low voltage power distribution, to ensure the stable operation of power grids and energy facilities.
3.Metallurgy and heavy machinery manufacturing: supports vibration/speed monitoring of large rotating equipment such as rolling mills and fans, suitable for high dust, high vibration and corrosive industrial scenes.
4.Environmental protection and water treatment engineering: integrated in sewage treatment plants pH value adjustment, dosing system automation control, compatible with HART protocol sensor access.
5.High-end process industry automation: covers chemical reactor process management (such as polymerization reaction control), semiconductor manufacturing precision signal acquisition, to achieve high-precision control and equipment interlocking protection.
