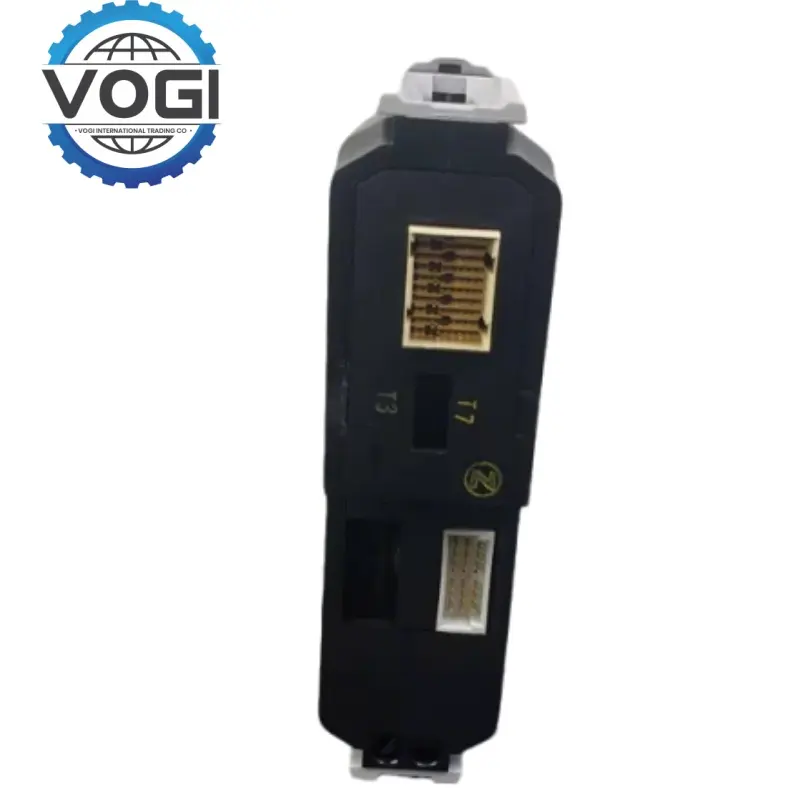

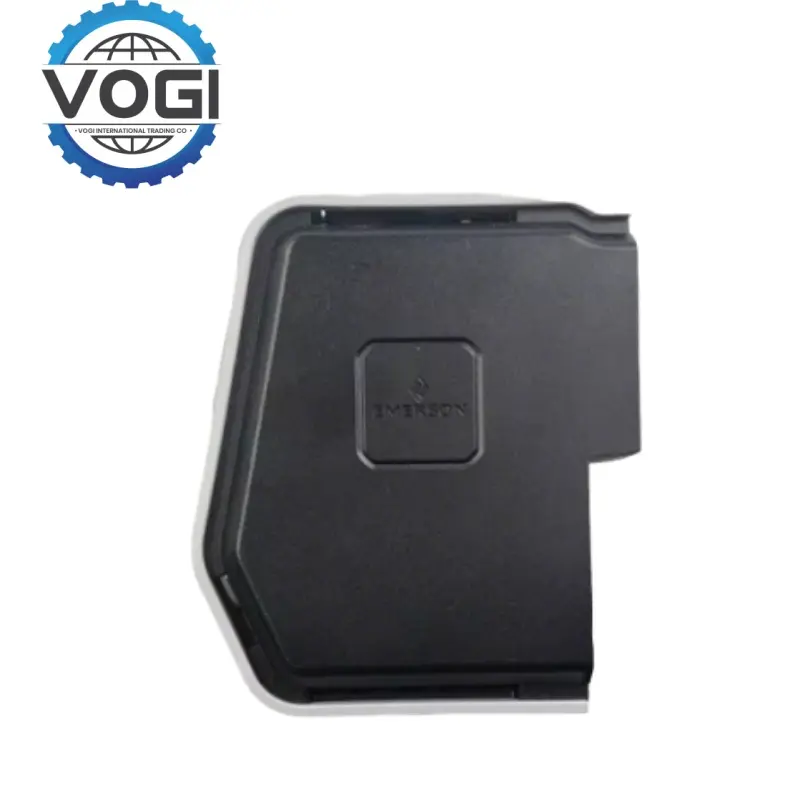

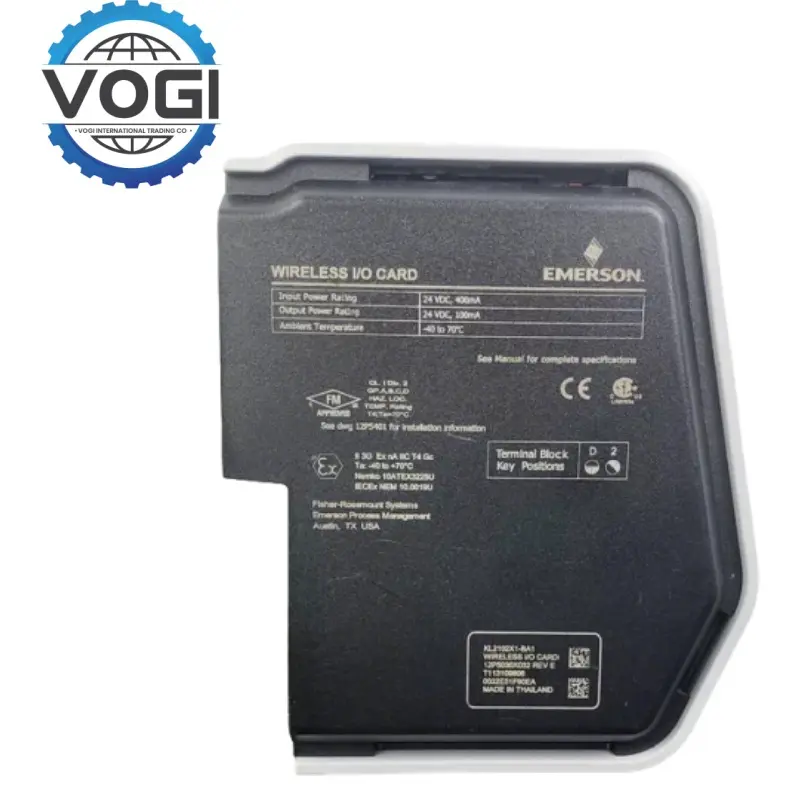

Emerson KL2102X1-BA1 Wireless I/O Card (WIOC)
Key SpecificationsVOGI
1.Power input Main power supply: 24 VDC(industrial-grade power supply, supports redundant configuration, and is compatible with DeltaV system standards)
2.Backup battery: Optional 7.2V DC lithium battery module (72 hours of battery life, supports hot-swap replacement)
3.Communication interface: Integrated HART protocol, PROFIBUS DP; modules can be extended to communicate via LocalBus (up to 6.5 meters)
4.Programmable input: 8-channel analog input (4-20mA, with HART protocol) and 4-channel isolated input (compatible with sensor signals)
5.Relay output: 4-way dry contact relay (contact capacity 250VAC/30VDC, maximum 5A, supports redundant control)
6.Device capacity: supports 64 nodes, can manage 8,000 independent named points and 4,000 real-time variables/second update
7.Operating temperature: -40°C to +70°C
8.Humidity range:5%-95% RH (non-condensing)
9.Display and operation: External DeltaV HMI touch screen; built-in LED status indicator
Key FeaturesVOGI
1.Redundant fault-tolerant design: Emerson KL2102X1-BA1 supports dual redundant power supply/communication links, key modules (I/O, controller) support hot swapping, and adapt to the high availability requirements of the DeltaV system.
2.Multi-signal processing capability: 8-channel analog input (4-20mA+HART protocol) and 4-way isolated input, adapt to sensor/actuator access;4-way dry contact relay output (250VAC/5A), support equipment interlock protection.
3.Industrial communication integration: Emerson KL2102X1-BA1 integrates HART, PROFIBUS DP, and the modules are extended through LocalBus (up to 6.5 meters), seamlessly connected with DCS/PLC systems.
4.Harsh environment adaptation: wide temperature and humidity (-40°C to +70°C, 5%-95% RH non-condensing), passed II 3G Ex explosion-proof certification (petroleum/chemical hazardous areas).
5.Medium-sized system expansion: Emerson KL2102X1-BA1 supports 64 nodes and manages 8,000 named points, suitable for medium-sized industrial automation scenarios.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
1.Chemical process control: used for reactor temperature/pressure regulation, pipeline flow monitoring, and adapting to corrosive media environments.
2.Petroleum refining and natural gas: supports oil/gas pipeline pressure control, hazardous area equipment interlocking (passed II 3G Ex explosion-proof certification).
3.Power and distribution management: integrated into high and low voltage distribution systems to achieve redundant control and real-time data acquisition to ensure grid stability.
4.Water treatment and environmental protection facilities: used for sewage treatment plant flow monitoring, dosing system automation, compatible with HART protocol sensors.
5.Rotating machinery foundation monitoring: supports fan/pump group vibration/speed signal acquisition, and adapts to high-vibration industrial scenarios.
