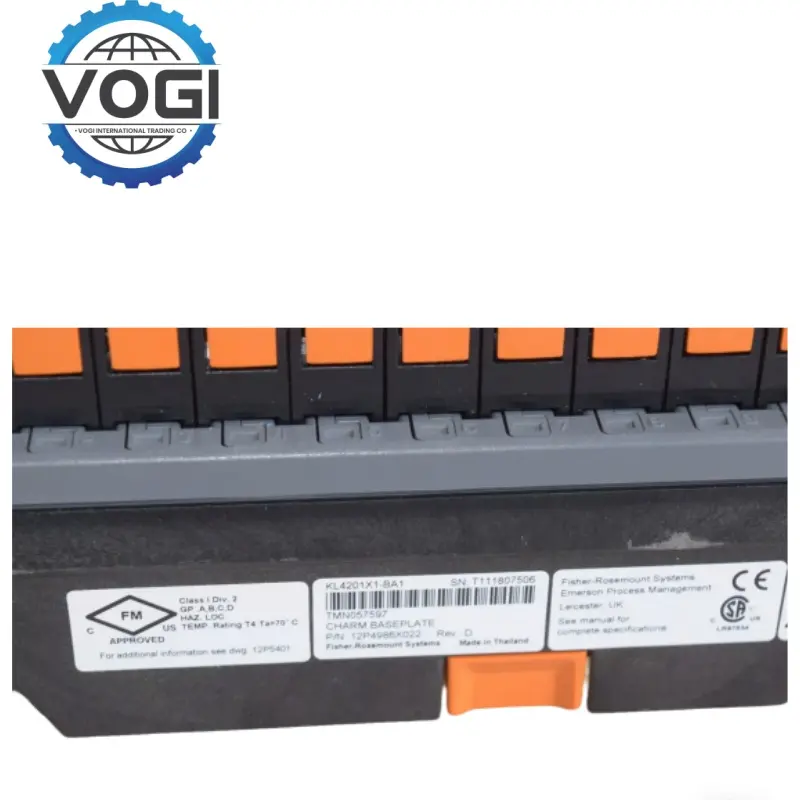

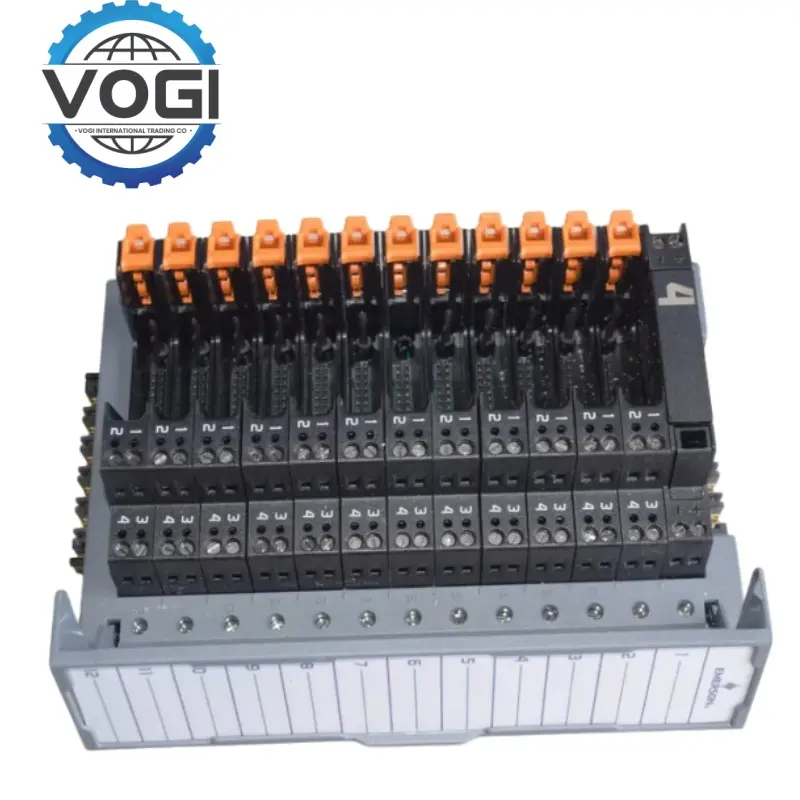

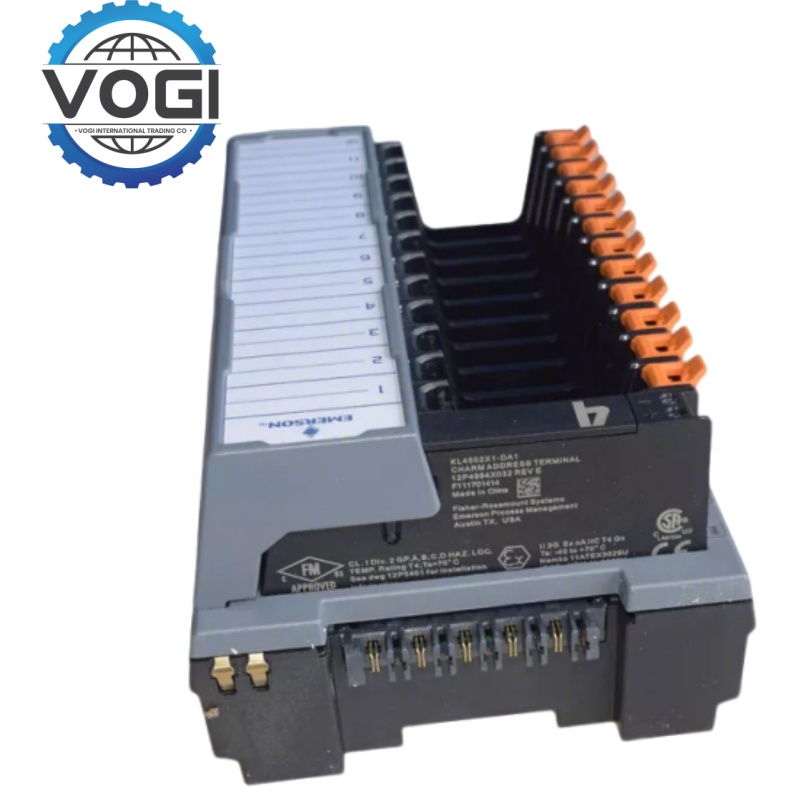

Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate
Key SpecificationsVOGI
1.Power input Main power supply: 24 VDC (industrial-grade power supply, supports redundant configuration)
2.Backup battery: 7.2V DC lithium battery (typical battery life of 72 hours, supports hot-swap replacement)
3.Communication interface: HART protocol, PROFIBUS DP (SE4601T07); Modbus TCP/IP (KL4201X1-BA1)
4.Programmable input: 16-channel mixed signal input (SE4601T07: 4-20mA/RTD; KL4201X1-BA1: pulse/digital quantity)
5.Relay output: 8-way dry contact relay (contact capacity 250VAC/5A, supports redundant control)
6.Device capacity: SE4601T07: 64 nodes; KL4201X1-BA1: 128 nodes
7.Operating temperature: -40°C to +70°C (wide temperature design, suitable for harsh industrial environments)
8.Humidity range: 5%-95% RH (non-condensing)
9.Display and operation: external DeltaV HMI touch screen; built-in LED status indicator
Key FeaturesVOGI
1.Signal processing differentiation: Emerson SE4601T07 KL4201X1-BA1 is a 16-channel mixed input (4-20mA/RTD), suitable for chemical/water treatment process control, and is a high-speed pulse/digital quantity acquisition, designed for rotating machinery vibration/speed monitoring.
2.Industrial communication compatibility: HART, PROFIBUS DP (SE4601T07) + Modbus TCP/IP (KL4201X1-BA1), covering mainstream industrial protocols.
3.Redundancy and harsh environment adaptation: redundant power supply/communication configuration, wide temperature and humidity (-40°C to +70°C, 5%-95% RH), support explosion-proof scenarios.
4.Modular expansion capability: Emerson SE4601T07 KL4201X1-BA1 has 64 nodes which can be coordinated with VE series I/O modules to expand functions.
5.Efficient maintenance: Emerson SE4601T07 KL4201X1-BA1 is connected to the DeltaV HMI touch screen for real-time monitoring, and hot-swap maintenance reduces downtime.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
1.Chemical and petroleum refining
Reactor control: real-time monitoring of temperature/pressure (RTD/4-20mA signal), closed-loop PID regulation.
2.Pipeline management: flow meter signal acquisition and regulation, anti-leakage interlock protection.
3.Water treatment and environmental protection: pH value monitoring and dosing control, pump station pressure interlock management.
4.Energy and power system: temperature monitoring (thermocouple signal), high and low voltage power distribution redundant control.
5.Food and pharmaceutical: sterilization equipment temperature monitoring (steam sterilizer), cold chain transportation temperature control alarm.
