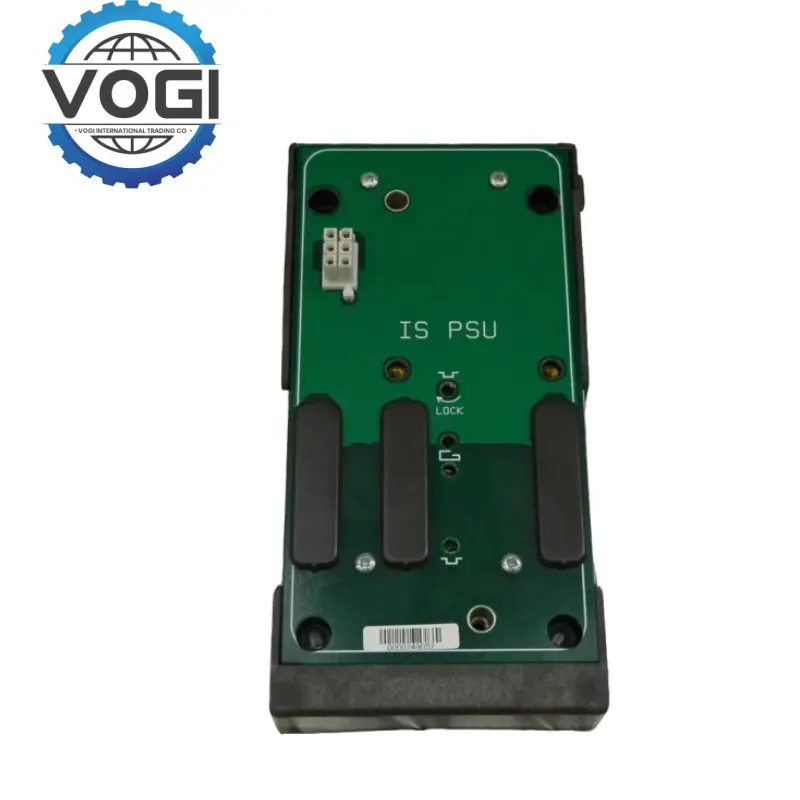

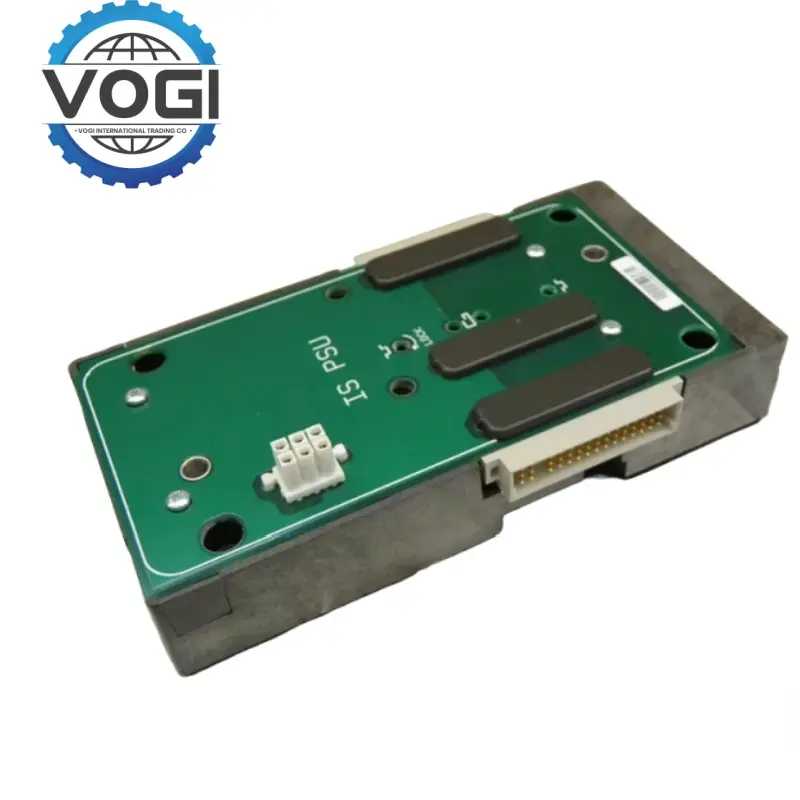

Emerson VE5010 KJ4101X1-BC1 12P1872X012 POWER SUPPLY CARRIER
Key SpecificationsVOGI
1.Power input Main power: 24 VDC
2.Backup battery: 7.2V DC lithium battery (72 hours of battery life, hot-swappable replacement)
3.Communication interface: Integrated HART protocol, PROFIBUS DP; modules communicate via LocalBus
4.Programmable input: 8-channel analog input and 4-channel isolated input (compatible with sensor signals)
5.Relay output: 4-way dry contact relay (contact capacity 250VAC/30VDC, maximum 5A, support redundant control)
6.Device capacity: maximum support 128 nodes, manage 16,000 independent named points and 8,000 real-time variables/second update
7.Operating temperature: -40°C to +70°C
8.Humidity range: 5%-95% RH (non-condensing)
9.Display and operation: external DeltaV HMI touch screen; built-in LED status indicator
Key FeaturesVOGI
1.Redundant fault-tolerant design: Emerson VE5010 KJ4101X1-BC1 12P1872X012 supports dual redundant power supply/communication links, key modules (I/O, controller) support hot swapping, and pass II 3G Ex explosion-proof certification.
2.High-precision signal processing: Emerson VE5010 KJ4101X1-BC1 12P1872X012 has 8-channel analog input (4-20mA+HART) and 4-way isolated input, suitable for sensor/actuator access; 4-way dry contact relay output (250VAC/5A), supporting interlock protection.
3.Harsh environment adaptation: wide temperature and humidity (-40°C to +70°C, 5%-95% RH non-condensing), dust, vibration and corrosion resistance (metallurgy/wastewater treatment scenarios).
4.Modular expansion capability: Emerson VE5010 KJ4101X1-BC1 12P1872X012 supports DeltaV system expansion, managing up to 128 nodes and 16,000 named points, covering medium and large industrial systems.
5.Intelligent monitoring and maintenance: Emerson VE5010 KJ4101X1-BC1 12P1872X012 has an external HMI touch screen for real-time monitoring, and built-in self-diagnosis for fast fault location.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
1.Chemical and petroleum refining: used for reactor pressure/temperature monitoring, oil pipeline flow control, suitable for high temperature, high pressure and corrosive environment.
2.Power and energy management: used for power plant turbine vibration monitoring, high and low voltage distribution system redundancy control, to ensure the stable operation of energy facilities.
3.Water treatment and environmental protection engineering: supports pH adjustment of sewage treatment plants, interlocking control of dosing systems, and is compatible with HART protocol sensor access.
4.Metallurgy and heavy manufacturing: used for vibration/speed monitoring of rolling mills, fans and other equipment, suitable for high dust and high vibration industrial scenes.
5.High-end manufacturing and automation: integrated in semiconductor production lines and precision instrument control to achieve high-precision signal acquisition and equipment interlocking protection.
