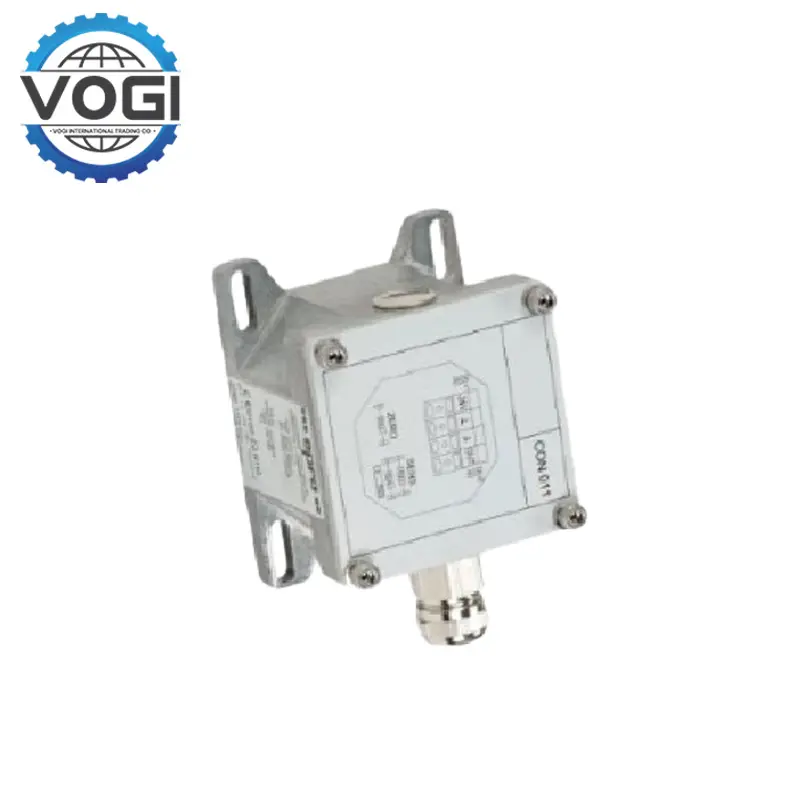

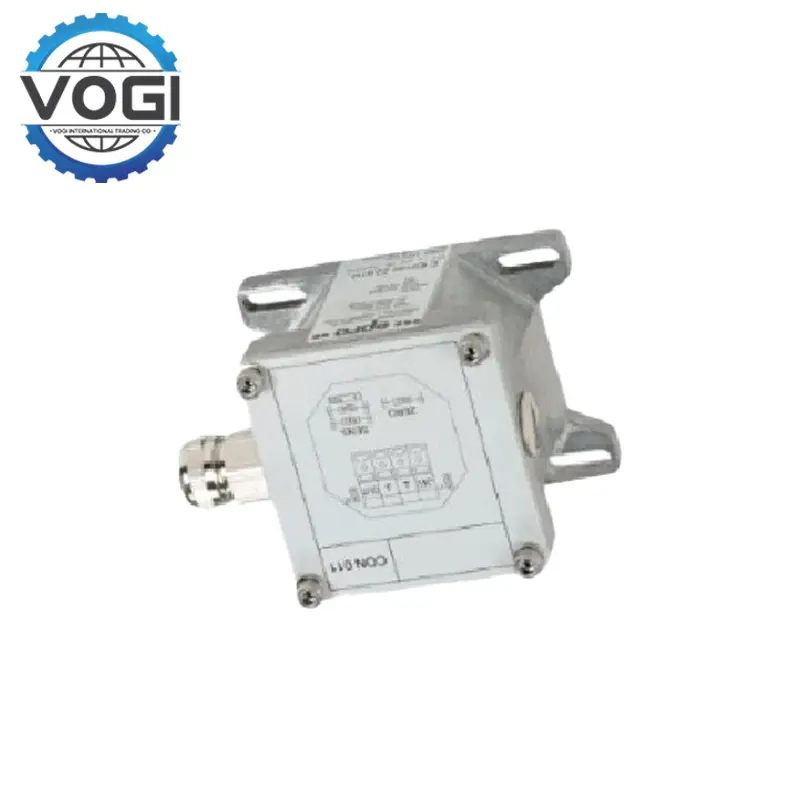

Epro CON011 Eddy Current Signal Converter

Brand: Epro
Module Number: CON011
Country Of Origin: Germany
Dimension: 12*10*5cm
Weight: 0.8kg
HS Code: 8538900000
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 12 Months
Inventory Qty: 5
Payment Term: T/T

Send inquiry Datasheet Download

Key SpecificationsVOGI

Dynamic Performance:

Frequency Range (-3 dB): 0 to 20000 Hz.

Rise Time: <15 µs.

Input Sensor Types :PR6422, PR6423,PR 6424, PR6425, PR6426.

Extended Measuring Range For Extended Range: Use CON011/91x-xxx.

NOTE: PR6425 requires extended range converter.

Environmental Operating:

Temperature Range: -30 to 100°C (-22 to 212°F).

Shock and Vibration: 5g at 60 Hz at 25°C (77°F)

Protection Class: IP65.

Power & Electrical:

Supply Voltage Range: -23V to -32V (Output Range - 4V to -20V).

-21V to -32V (Output Range - 2V to -18V).

Physical:

Housing Material: GD-ALSi9Cu3.

Mounting: 4 Screws M5x20 (Included in Delivery).

Connections: Transducer Self-Locking Lemo-Plug.

Supply/Output: Spring Type (Max. 1.5Mm2 ).

Key FeaturesVOGI

Flexible Installation Options: Epro CON011 offers dual connectivity: LEMO plugs for quick sensor integration or screw terminals for custom wiring. Compact dimensions (0.6kg net weight) and 4-screw mounting simplify retrofitting into tight machinery spaces without disrupting operations .

Seamless System Compatibility: Compatible with safety barriers for hazardous areas, Epro CON011 supports analog outputs (-4V to -20V DC) for integration with PLCs or SCADA. Its low impedance (100kΩ) and stable power tolerance (±0.2%/V) minimize signal distortion in multi-device setups .

Freight Estimation(Part Of The Area)VOGI

Destination	Freight
Middle East	$43
Southeast Asia	$16
South Asia	$57
South Africa	$46
Europe and USA	$28
Russia	$52

APPLICATIONVOGI

Automated Port Container Cranes: In automated terminal operations, Epro CON011 synchronizes load-cell data from spreader beams with PLCs, ensuring ±2mm positioning accuracy during 40-ton container transfers. Its IP66-rated enclosures withstand coastal salt fog, reducing signal latency by 18% in 24/7 cargo hubs.

Smart Hospital HVAC Monitoring: Deployed in ICU ventilation networks, Epro CON011 aggregates pressure/temperature data from 50+ sensors per floor. The module’s galvanic isolation eliminates EMI interference from MRI machines, maintaining 99.98% uptime for critical air quality controls.

Precision Greenhouse Irrigation: Linking soil moisture probes to weather-predictive algorithms, Epro CON011 optimizes drip irrigation cycles in vertical farms. Its -30°C to +70°C operational range ensures stability in glasshouse environments with 95% humidity fluctuations.

Ordering InformationVOGI

Part Number

Sensor Type

Measuring Range

Linearity

CON011

PR6422

PR6423

PR6424

PR6426

1.0mm (Standard Range)

2.0mm (Standard Range)

4.0mm (Standard Range)

8.0mm (Standard Range)

≤ 1.5%

≤ 1.0%

≤ 1.5%

CON011/912-015

PR6422

1.5mm (Extended Range)

≤ 2.0%

CON011/913-030

PR6423

3.0mm (Extended Range)

≤ 1.5%

CON011/913-040

PR6423

4.0mm (Extended Range)

≤ 2.0%

CON011/914-060

PR6424

6.0mm (Extended Range)

≤ 1.0%

CON011/914-080

PR6424

8.0mm (Extended Range)

≤ 1.5%

CON011/914-100

PR6424

10.0mm(Extended Range)

≤ 2.0%

CON011/915-040

PR6425

4.0mm (Standard Range)

≤ 1.5%

CON011/915-060

PR6425

6.0mm (Extended Range)

≤ 2.0%

CON011/915-080

PR6425

8.0mm (Extended Range)

≤ 3.0%

CON011/915-100

PR6425

10.0mm(Extended Range)

≤ 4.0%

CON011/916-120

PR6426

12.0mm(Extended Range)

≤ 1.5%

CON011/916-160

PR6426

16.0mm(Extended Range)

≤ 2.0%

CON011/916-200

PR6426

20.0mm(Extended Range)

≤ 2.5%

CON011/916-240

PR6426

24.0mm(Extended Range)

≤ 3.5%

Note：We have different types of CON011 can match to PR6423 PR6424 PR6426,the specific part number is below:

CON011/91

CON011/915-040

CON911/916-120
